Installation Manual Double DIN Kit
A: Push metal frame into
dashboard. Fix it with
the OEM screws
B: Push 1-DIN head unit into
metal frame until it snaps in
C: Push facia plate over 1-DIN head unit
and pocket. Push OEM center panel
over facia plate. Fix it on dash board
• Kia Cee'd 2010->
Compatible with 1-DIN devices
1

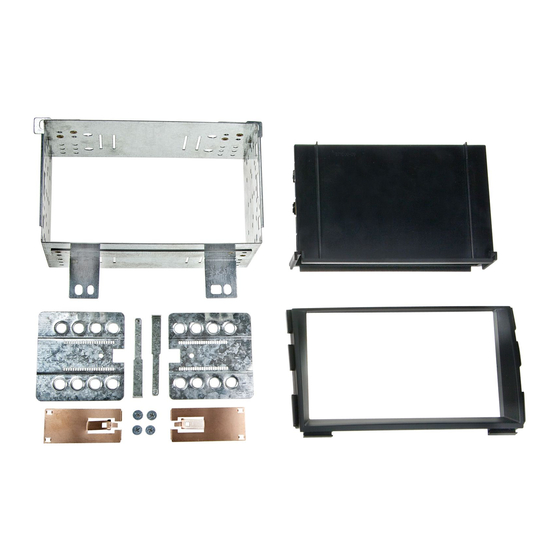

Double DIN Kit contents
• (1) facia plate
• (2) metal frame
Installation Manual
1-DIN Kit
Part-No.: 281178-27
4
3
3
• (3) pocket / 2 screws
• (4) mounting brackets
2
