© 04/2011 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
6.
Mount Double DIN
navigation to facia plate.
Fix it with 2 Phillips screws
(see arrows)
Connect all required circuit
points
Mount both to the dash
board
Ford Fiesta 2009-> (Models without display only)
5
2
4
1
6
7
2
5
1
Installation Manual

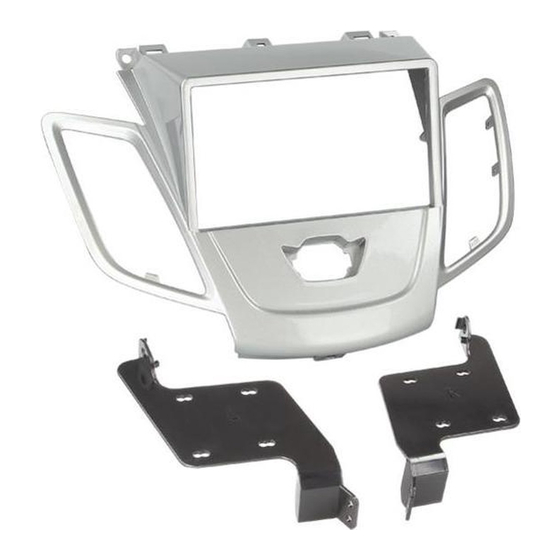

Double DIN Kit
5
3
4
2-DIN (without pocket)
Colour
Part-No.:
black
381114-20-1
silver
381114-20-2
6
7
3
5
4
2-DIN with pocket
Colour
Part-No.:
black
281114-20-1
silver
281114-20-2
