© 12/2008 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
• Fiat Punto Evo 2009->
Compatible with 1-DIN devices*
*not for Becker / Blaupunkt DX-R70 series
1

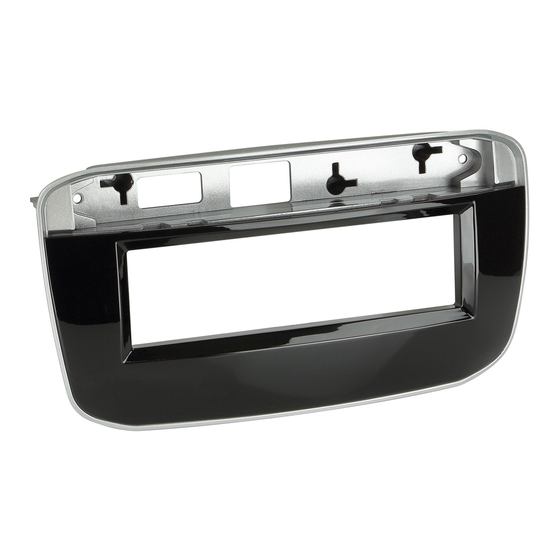

(1) base plate
(2) facia plate
Installation Manual
281094-25
2
Advertisement
Table of Contents
Related Manuals for ACV 281094-25
Summary of Contents for ACV 281094-25
- Page 1 Installation Manual 281094-25 • Fiat Punto Evo 2009-> Compatible with 1-DIN devices* *not for Becker / Blaupunkt DX-R70 series (1) base plate (2) facia plate © 12/2008 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
- Page 2 Remove OEM head unit with Remove 4 screws. radio release keys Remove Switch panel from the OEM trim frame Remove 2 screws (see photo) Mount switch panel to supplied base plate Remove 2 screws Connect all wires Mount baseplate to dash board Fix new head unit with base plate...
