System Installation
Audio Connections – Fusion Processing
The 25-Way D-Type connectors for the Fusion processing section are located on the rear of the console, behind the
Fusion processing section and under a horizontal ledge above Fusion IEC power connector.
There are four D-Type connectors for audio and one for the four User GPIO keys at the bottom of the Fusion processing
section on the console surface and another for the Red Light &Talkback connections.

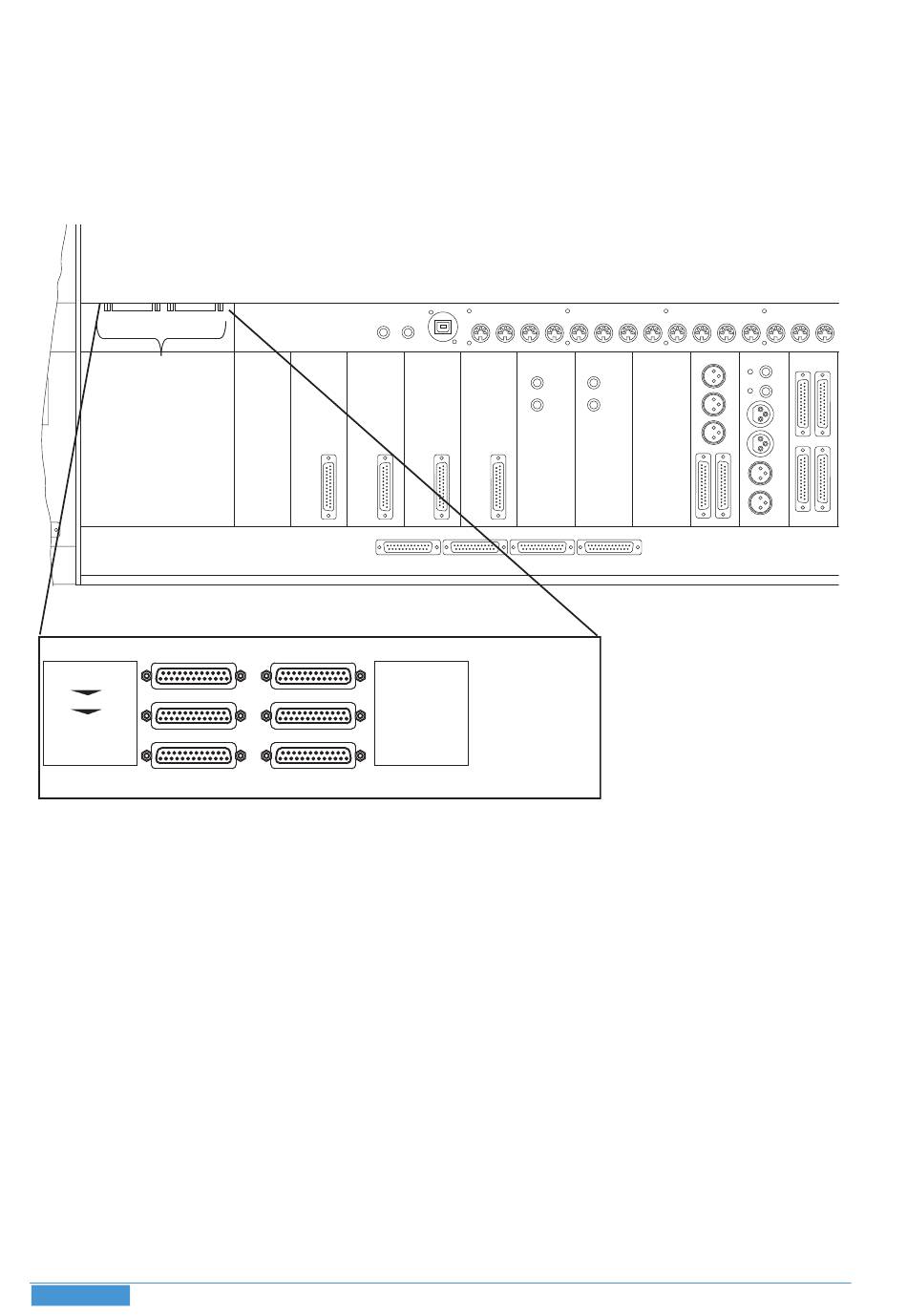

Rear view of console centre section
View looking up towards Fusion connector panel.
MIX INS RTN
FROM PATCH
FUSION
TO CONSOLE
MIX INS RTN
GP IO
Refer to Appendix C, page 52, for the connector pinouts.
Refer to Appendix D, page 57, for patchbay layouts.
The Fusion processing is ideally connected using a patchbay to give the greatest flexibility, however, it is possible to
connect the Fusion directly to the connections on Duality. The images on the following pages show these two methods
of connection.
Page 26
1 - FOOTSWITCH - 2
660X2 660X1 660X1
CUE/FX BUS BUS BUS
BUS OUT 17-24 9-16
ECHO RETURNS 1-4 MIX INSERT RETURNS
FUSION
I/P & RETURNS
FUSION
O/P & SENDS
TB/REDLIGHT
660X1 659 659
FB BL FB AL
FB BR FB AR
1-8
MIX INSERT SENDS MAIN MIX OUTPUTS
Rear of Console
Front of Console
Duality
Section 4
658 654 653 652
Desk Mic
Gain
T/Back
Mini
Mic Out
BL
Ext TB
Mic Gain
Listen
Mic Out
Mini
BR
T/Back
Mic In
Osc
Out
Send - Insert - Rtn
Listen
Mic In
Mini
AL
Mini
AR
M eter Out Ext B 1-4
M ON B M ON A
Fuse Installation & Setup Guide
651
MIC
EXT A3 EXT A4
CHANNEL OU
EXT A1 EXT A2
