Solid State Logic Duality Fuse Installation And Setup Manual page 28

System Installation
Internal Connector Panel
(Connectors face towards rear)
MIC I/P 41-48
DAW O/P 41-48
DAW I/P 41-48
E C H O R T N S
TALKBACK
USER T41-T48
USER U41-U48
USER V41-V48
USER W41-W48
Page 24

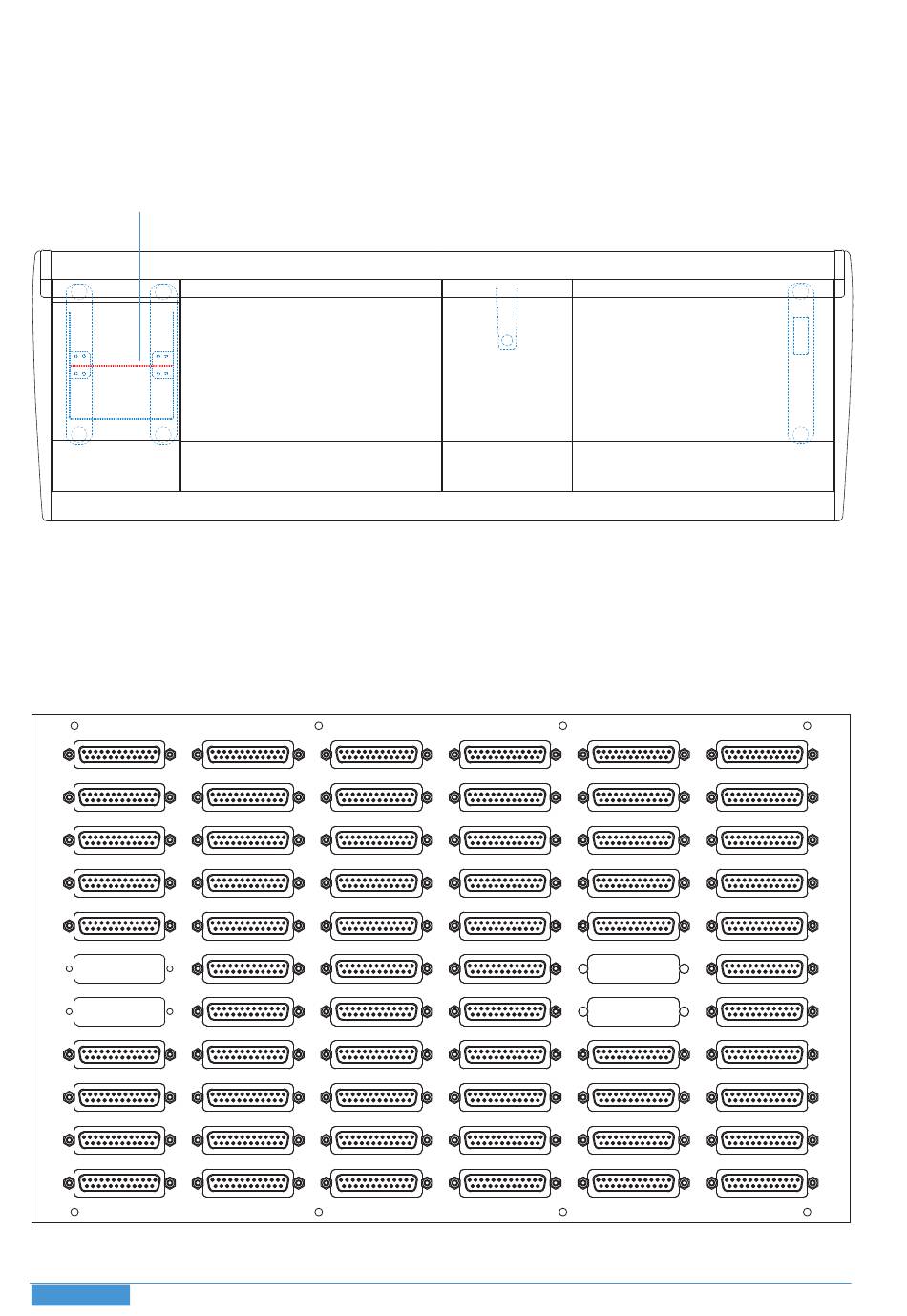

Location of Internal Patch Connector Panel
Patchbay section may be located at either end of the console
D25 Connector Panel
MIC I/P 33-40 MIC I/P 25-32
DAW O/P 33-40 DAW O/P 25-32
DAW I/P 33-40 DAW I/P 25-32
F X S E N D E X T / I P
EXT I/P A4 EXT I/P A3
USER R25-R32 USER R17-R24
USER S25-S32 USER S17-S24
USER T33-T40 USER T25-T32
USER U33-U40 USER U25-U32
USER V33-V40 USER V25-V32
USER W33-W40 USER W25-W32
48 channel Duality
MIC I/P 17-24
DAW O/P 17-24
DAW I/P 17-24
B R E C / I P 1 7 2 - 4
EXT I/P A2
USER R09-R16
USER S09-S16
USER T17-T24
USER U17-U24
USER V17-V24
USER W17-W24
MIC I/P 9-16 MIC I/P 1-8
DAW O/P 9-16 DAW O/P 1-8
DAW I/P 9-16 DAW I/P 1-8
R E C / I P 9 1 - 6 R E C / I P
EXT I/P A1 MIX OUTPUT
MON/MINI A
MON/MINI B
USER T09-T16 USER T01-T08
USER U09-U16 USER U01-U08
USER V09-V16 USER V01-V08
USER W09-W16 USER W01-W08
