Connect Data Wiring

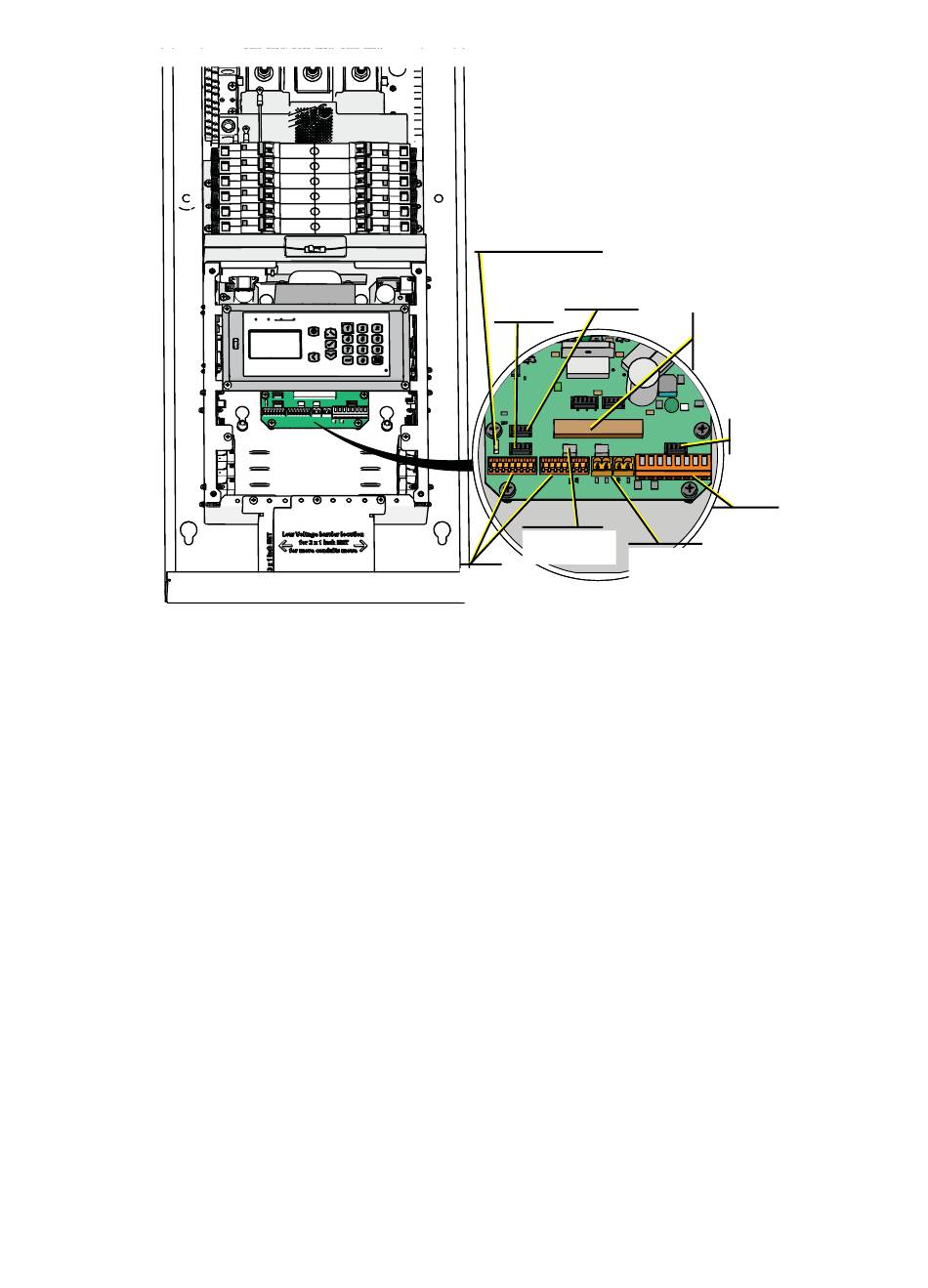

The Sensor IQ Panel termination board is located in the low-voltage box, behind the Power Control
Processor and the Data Access Panel.
• DMX In and DMX Pass-Thru: Used to connect the breaker panel to a DMX512 control source. See
Data and Control Wire Specification
• Panic In and Panic Out (Emergency): Allows override of the lighting control for specified loads by
emergency systems, such as a fire alarm system.
• EchoConnect: Station bus (up to four terminations) allows the ETC Echo line of preset stations to
control loads in the breaker panel.
• Option 1 and Option 2 connectors: Allow connection of optional DALI, 0–10V, and Contact Input
cards used to control a variety of possible system loads.
30
Remove cover for access
to termination board
Primary/secondary
switch
Ethernet card connection
Option
(factory installed)
card 2
DMX
termination
DMX
headers
page 31
on .
Ribbon cable
connection (factory
installed)
Option
card 1
Station
termination
Panic in/
Panic out
(Emergency)
