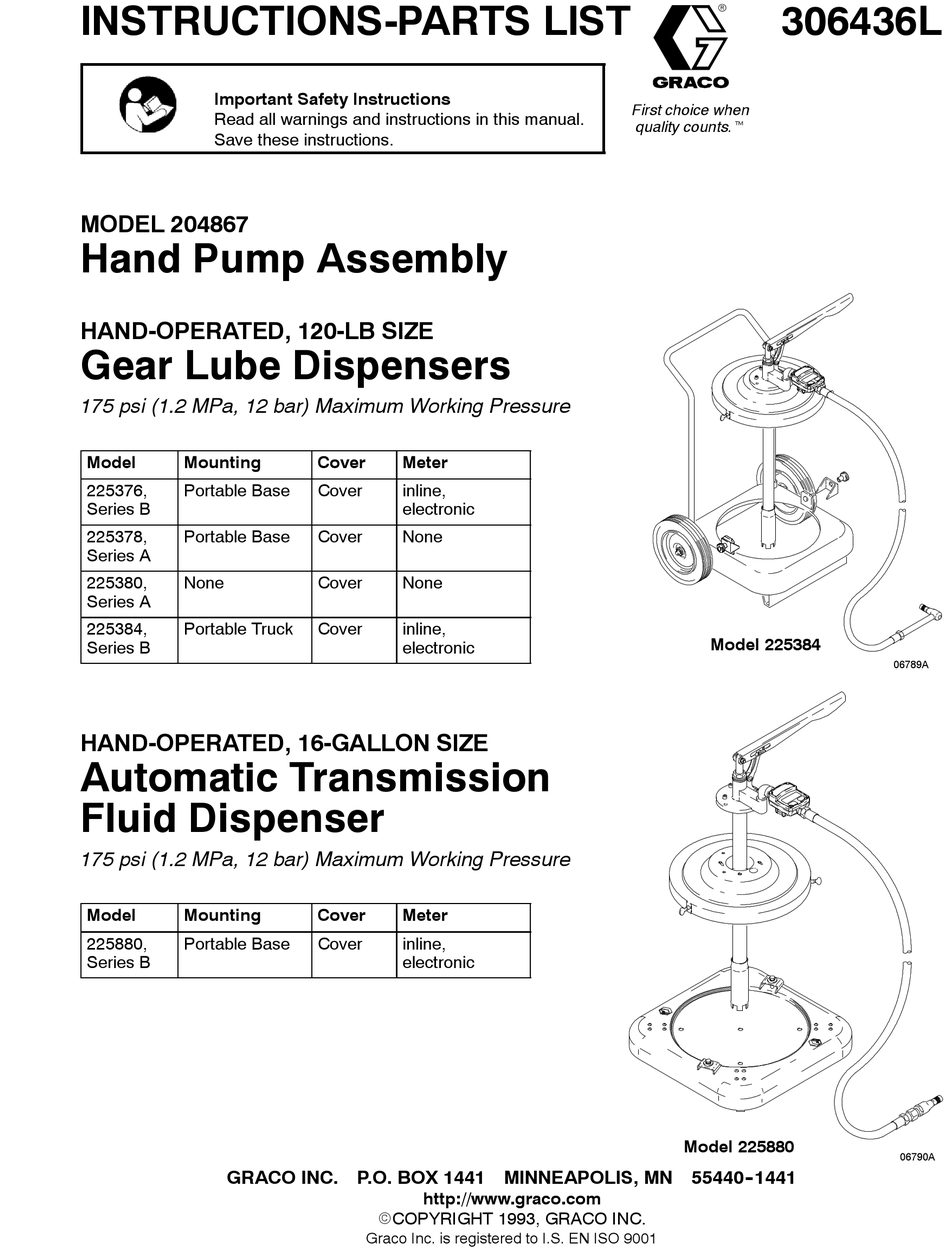

INSTRUCTIONS-PARTS LIST
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.

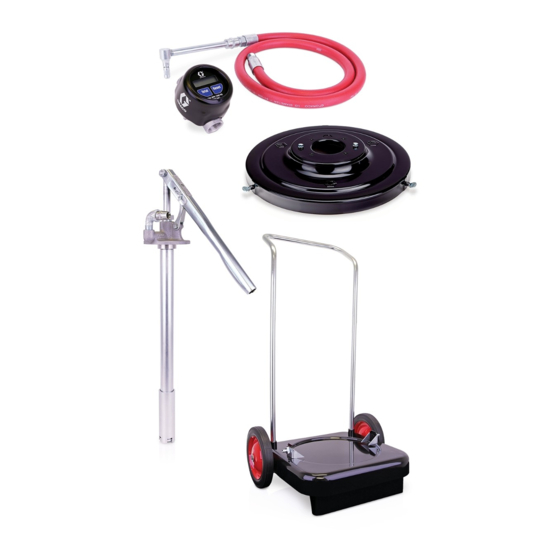

MODEL 204867
Hand Pump Assembly
HAND-OPERATED, 120-LB SIZE
Gear Lube Dispensers
175 psi (1.2 MPa, 12 bar) Maximum Working Pressure
Model
Mounting
225376,
Portable Base
Series B
225378,
Portable Base
Series A
225380,
None
Series A
225384,
Portable Truck
Series B
HAND-OPERATED, 16-GALLON SIZE
Automatic Transmission
Fluid Dispenser
175 psi (1.2 MPa, 12 bar) Maximum Working Pressure
Model
Mounting
225880,
Portable Base
Series B
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440- -1441
Cover
Meter
Cover
inline,
electronic
Cover
None
Cover
None
Cover
inline,
electronic
Cover
Meter
Cover
inline,
electronic
http://www.graco.com
ECOPYRIGHT 1993, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
306436L
First choice when
quality counts.t
Model 225384
Model 225880
06789A
06790A
