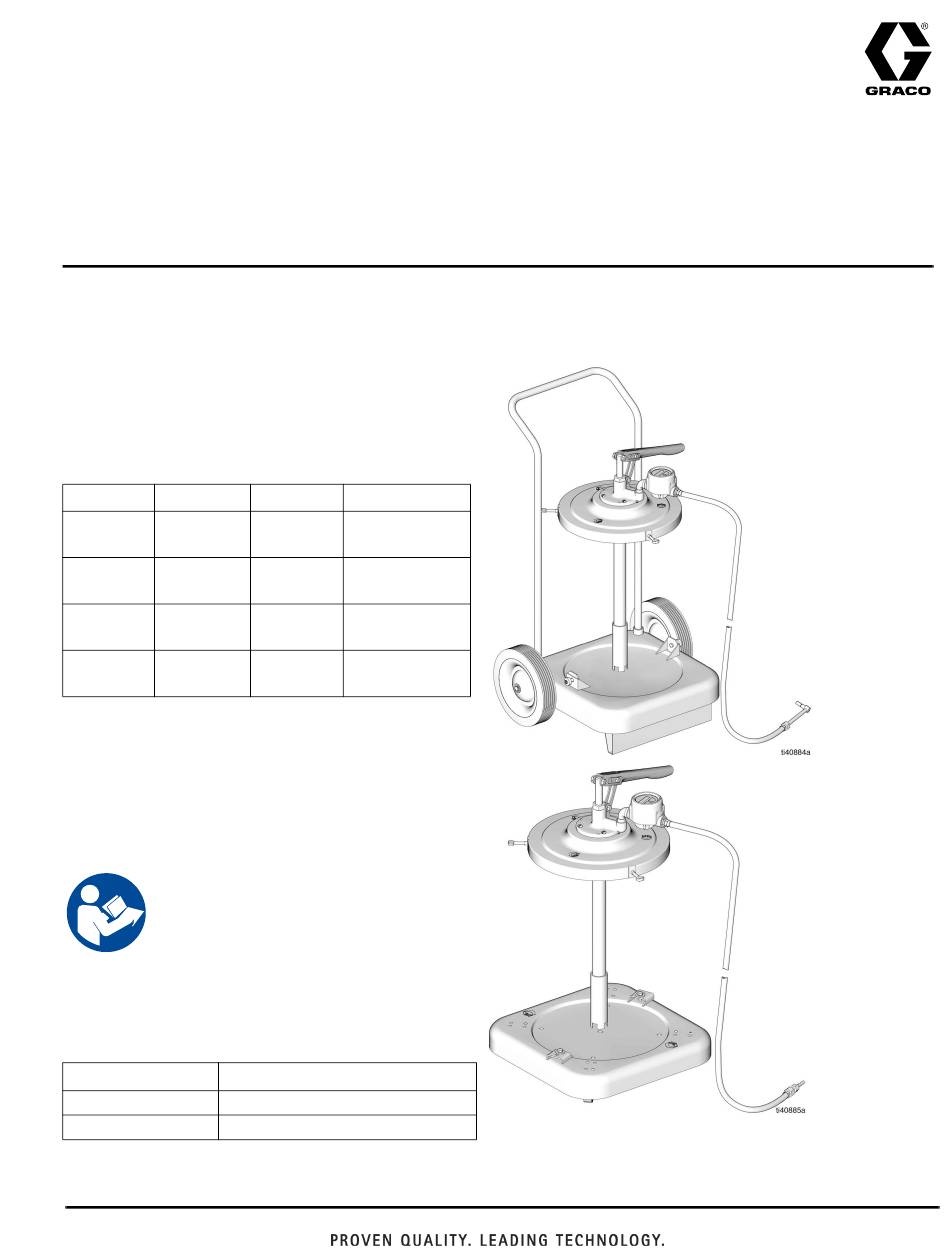

Instructions - Parts List
Hand Pump Assembly;
Gear Lube Dispensers;
Automatic Transmission Fluid
Dispenser
For dispensing non-corrosive and non-abrasive oils and lubricants only. For professional
use only.
Model 204867, Hand Pump Assembly
Gear Lube Dispensers
Hand-Operated, 120 lb. size.
175psi (1.2 MPa, 12 bar) Maximum Working Pressure
Model
Mounting
225376,
Portable
Series B
Base
225378,
Portable
Series A
Base
225380,
None
Series A
225384,
Portable
Series B
Truck
Model 225880, Series B Automatic
Transmission Fluid Dispenser with
Meter
Hand-Operated, 16 Gallon size.
175psi (1.2 MPa, 12 bar) Maximum Working Pressure
Important Safety Instructions
Read all warnings and instructions in this
manual and in the Related Manuals
before using the equipment. Save these
instructions.
Related Manuals
Manual in English Description
3A5588
EM8, EM20 and IM20 Meters
306345
Lube Ranger Components
Cover
Meter
Cover
In-line,
electronic
Cover
None
Cover
None
Cover
In-line,
electronic
306436M
EN

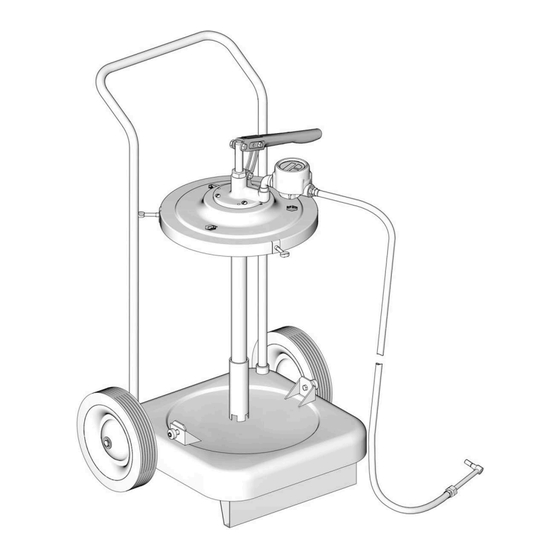

Gear Lube Dispenser
Model 225384
Automatic Transmission
Fluid Dispenser
Model 225880
Advertisement
Table of Contents
Related Manuals for Graco A Series
Summary of Contents for Graco A Series
-
Page 1: Related Manuals
Instructions - Parts List Hand Pump Assembly; Gear Lube Dispensers; Automatic Transmission Fluid 306436M Dispenser For dispensing non-corrosive and non-abrasive oils and lubricants only. For professional use only. Model 204867, Hand Pump Assembly Gear Lube Dispenser Gear Lube Dispensers Model 225384 Hand-Operated, 120 lb. -
Page 2: Table Of Contents
California Proposition 65 ....13 Graco Standard Warranty ....14... -
Page 3: Installation
Installation Installation WARNING Foot Crush Hazard A fully loaded cart adds weight, creating a potential foot crush hazard. To avoid a foot injury, keep feet away from the cart. Reference F . 1 or F . 2, depending upon the model. Models with a Portable Truck Insert the truck handle (708) into the sockets in the truck base (701). -
Page 4: Operation
Operation Operation Pressure Relief Procedure If the meter fails to register, it may be due to a low battery. See the Service section of the Electronic Meter manual. Follow the Pressure Relief Procedure whenever you see this symbol. Models with Non-Drip Nozzle WARNING 200348 The non-drip nozzle can be set in the automatic... -
Page 5: Repair
Repair Repair Pump NOTE: Clean all parts in non-flammable solvent. Dry all parts thoroughly before reassembly. 1. Remove the pump from the cover or shield. 2. Slide the extension (318) up the riser tube (314) and expose the intake valve (302). 3. -
Page 6: Parts
Parts Parts Gear Lube Dispenser Gear Lube Dispenser Model 225378, Series A without meter Model 225380, Series A Includes items 1, 3, 6, 201 Includes items 3, 6, 201 Model 225376, Series B with meter Ref. Part Description Qty. Includes items 1, 2, 3, 6 HAND PUMP ASSEMBLY, see Parts 204867 List, page Gear Lube Dispenser,... -
Page 7: Gear Lube Dispenser
Parts Gear Lube Dispenser Automatic Transmission Fluid Dispenser Model 225384, Series B Model 225880, Series B Ref. Part Description Qty. HOSE AND METER ASSEMBLY, see Ref. Part Description Qty. Parts List, page Ref 2, Part 239705, 239705 PORTABLE BASE ASSEMBLY, see Series A Hose and Meter Parts List, page Ref 1, Part 203622, Assembly, page 11... -
Page 8: Model 204867
Parts Model 204867 Parts Drawing 301f 301c 301d 301b 301a 301e Lubricate threads. Lubricate I.D. Lubricate threads. 302b 302d Lubricate threads. 302c 302a Torque to 25 in-lbs (2.8 N•m) 306436M... -
Page 9: Ref 3, Part 204867, Series A Hand Pump Assembly
Parts Ref 3, Part 204867, Series A Hand Pump Assembly Reference Parts, page 6. Ref. Part Description Qty. PISTON ASSEMBLY, includes 200753 items 301a - 301f 301a 100114 BALL, steel, 7/16 in. dia. 301b 150134 SPRING, compression 301c 150463 GLAND, male 301d* 151464 V-PACKING, leather 301e 150465 SEAT, piston... -
Page 10: Ref 7, Part 203650, Series A Truck Assembly
Parts Ref 7, Part 203650, Series A Ref 1, Part 203622, Series B Truck Assembly Portable Base Assembly Ref. Part Description Qty. Ref. Part Description Qty. 203651 TRUCK BASE 191750 BASE, drum 100609 SCREW, rd hd, 1/4 - 20 x 3/8 in. 113646 CASTER, polyurethane 101242 RETAINING RIGH... -
Page 11: Ref 5, Part 239707, Series A Metered Dispense Kit
Parts Ref 5, Part 239707, Series A Ref 2, Part 239705, Series A Metered Dispense Kit Hose and Meter Assembly Ref. Part Description Qty. Ref. Part Description Qty. HOSE, fluid, cpld 1/2 npt(m) x 1/4 HOSE ASSEMBLY, includes 501* 214657 214658 npt(f);... -
Page 12: Ref 3, Part 204867, Series A Hand Pump Assembly
Parts Ref 3, Part 204867, Series A Hand Pump Assembly Reference Parts, page 6. Ref. Part Description Qty. PISTON ASSEMBLY, includes 200753 items 301a - 301f 301a 100114 BALL, steel, 7/16 in. dia. 301b 150134 SPRING, compression 301c 150463 GLAND, male 301d* 151464 V-PACKING, leather 301e 150465 SEAT, piston... -
Page 13: California Proposition 65
Parts Wetted Parts Buna, zinc alloy, steel, neoprene, polycarbonate, aluminum California Proposition 65 CALIFORNIA RESIDENTS WARNING: Cancer and reproductive harm – www.P65warnings.ca.gov. 306436M... -
Page 14: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
