I/O Outlets

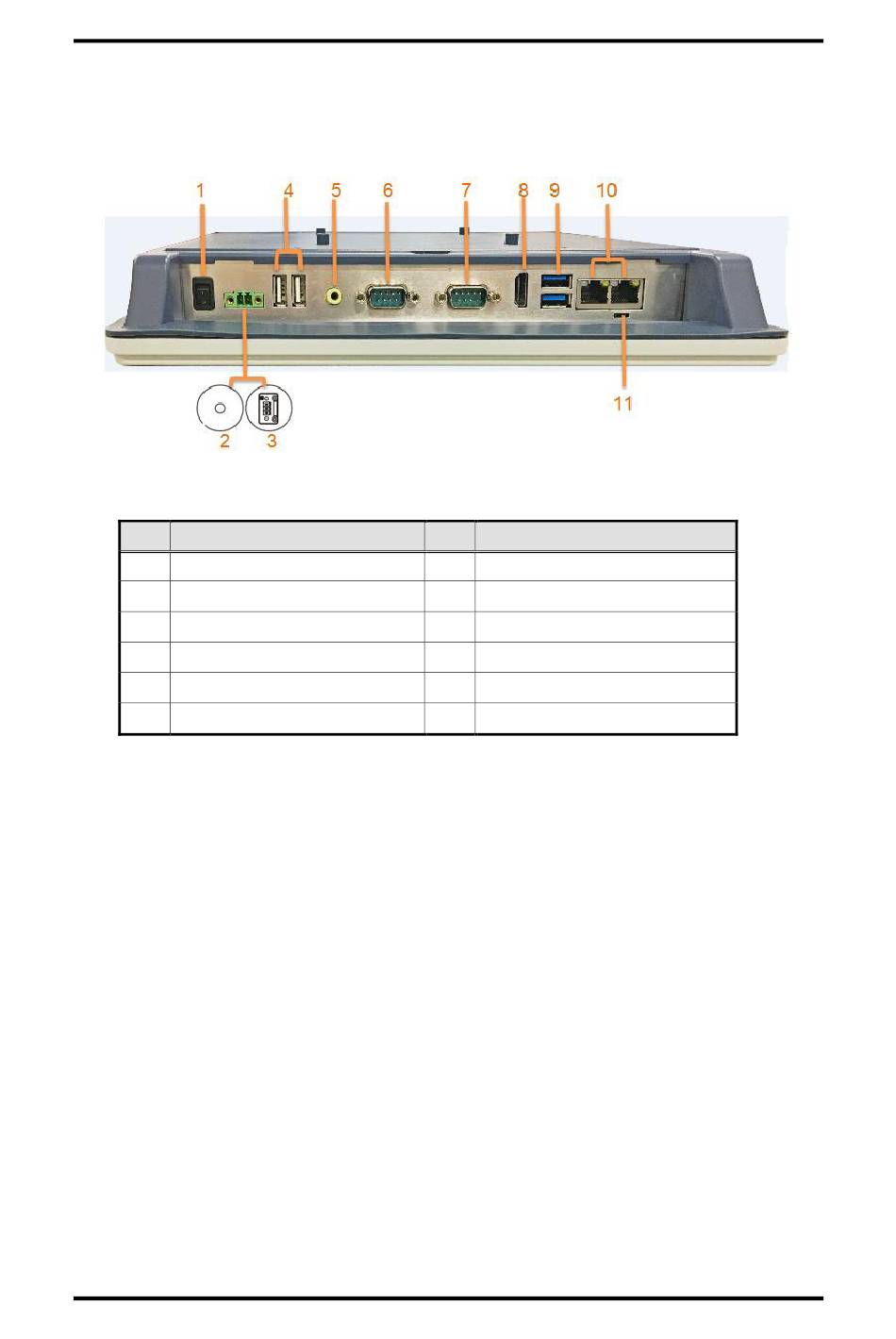

Please refer to the following illustration for I/O locations of the GOT5100T-845.
No Function
1 POWER SWITCH (ATX)
2 Power Input connector (Screw)
3 Power Input connector (Phoenix)
4 Dual USB 2.0 ports
5 AUDIO (LINE-OUT)
6 COM 1(RS-232/422/485)
6
No Function
7 COM 2(RS-232)
8 HDMI
9 Dual USB 3.0 ports
10 Ethernet (RJ-45)
11 AT/ATX selectable switch
