Chapter 2: Jumpers and Connectors

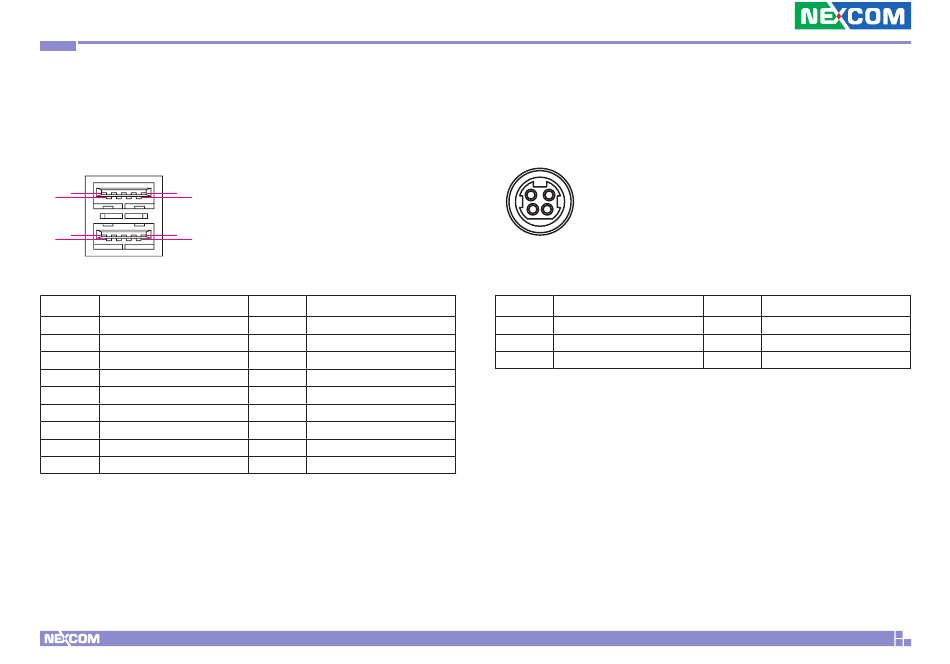

USB 3.0 Ports

Connector type: Dual USB 3.0 port
Connector location: USB3_P12 and USB3_P34
18 14
10 13
9 5
1 4
Pin Definition
1 +5V
3 USB2_2P
5 USB3_RX2N
7 GND
9 USB3_TX2P
11 USB2_1N
13 GND
15 USB3_RX1P
17 USB3_TX1N
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 USB2_2N
4 GND
6 USB3_RX2P
8 USB3_TX2N
10 +5V
12 USB2_1P
14 USB3_RX1N
16 GND
18 USB3_TX1P

DC Power Input (+12V Only)

Connector location: CN1
1 2
3 4
5
Pin Definition
1 +12VSUS
3 GND
5 CGND
16
Pin Definition
2 +12VSUS
4 GND
