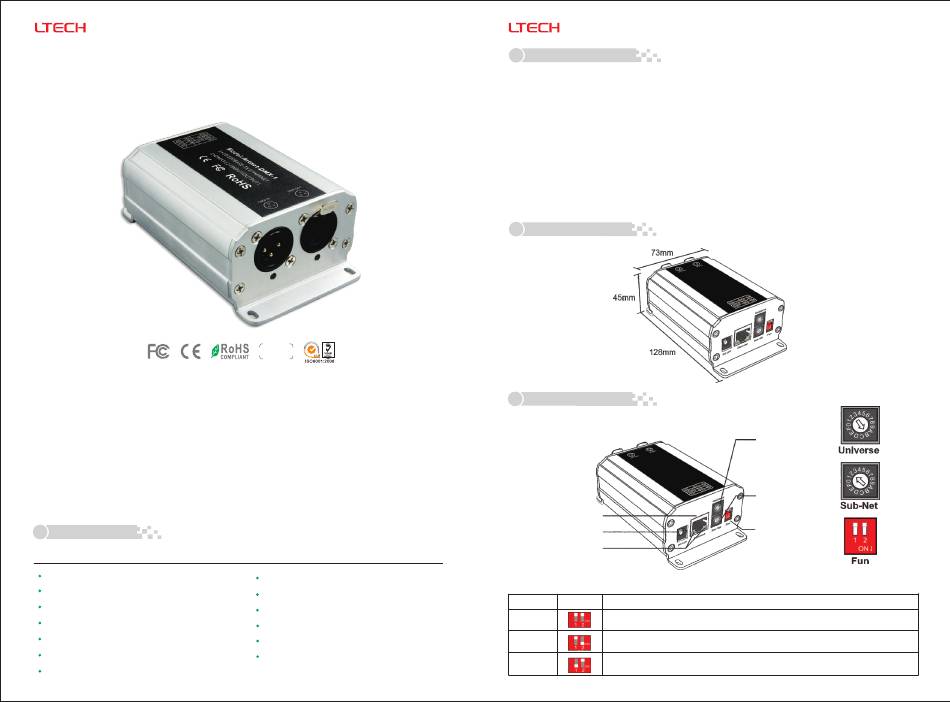

Ltech Artnet-DMX-1 Quick Start Manual

Artnet-DMX-1
Artnet-DMX Converter
Artnet-DMX converter is the Ethernet Control System based on the Artnet protocol, used to convert
the Artnet network data package into DMX512 data, adopting high-speed ARM processor, stable and
reliable working. Following Artnet standard protocol, it supports RJ45 network interface and standard
DMX512 output interface.
Artnet-DMX-1 can be configured in one of two ways: Artnet convert into DMX512, or DMX512 convert
into Artnet.
It is compatible with all the effects lighting control software which support Artnet protocol, widely used
in the LED dot matrix and the stage lighting control network in needing lots of DMX-512 data,
especially for TV station recorded scene, stage performances, entertainment and so on.
1. Technical Specs
Artnet-DMX-1
Power input: 12Vdc (with a power adaptor)
Artnet/DMX512
Input signal:
DMX512/Artnet
Output signal:
DMX channels: 512 channels
Current: 30mA@12Vdc
IP: Indoor use only
DMX Output Connection: XLR-3
Artnet-DMX-1 Artnet-DMX Converter
warranty
5 years
Network Connection: RJ45
Isolation Ethernet Port: Transformer isolation
℃ ℃
Working temperature: -30 ~65
Dimension: L120×W73×H45mm
Package Size: L198×W78×H50mm
Weight (G.W): 290g
1
2. Performance Features
2.1 Based on Artnet protocol network data communication, accept network DMX data;
2.2 IP address is bound to Subnet, no need to reset, plug and play.
2.3 Manage Artnet on broadcast mode or unicast mode.
2.4 1 group input, 1 group output.
2.5 Set different network segments to avoid multiple sets Artnet data interference.
2.6 Compatible with the light software based on Artnet Protocol, control stage lighting and LED
lighting simultaneously.
2.7 Connect up to 256 DMX Universes to one network.
2.8 10BaseT Ethernet Port.
2.9 Data activity indicators
2.10 Configurable DMX output refresh rates.
3. Product Dimension:
4. Interface Instruction:
Artnet input
Power Input
Status lamp
Switching modes operation instruction:
1 Diagrams
2
Artnet to DMX512 mode
OFF OFF
DMX512 to Artnet mode
OFF ON
ON OFF Testing function, generates
Artnet-DMX-1 Artnet-DMX Converter
Universe Dip Switch
Subnet Dip Switch
Mode Switcher
(Operation as follows)
Functions
170 pixels full color gradient floating DMX data.
2 www.ltechonline.com
