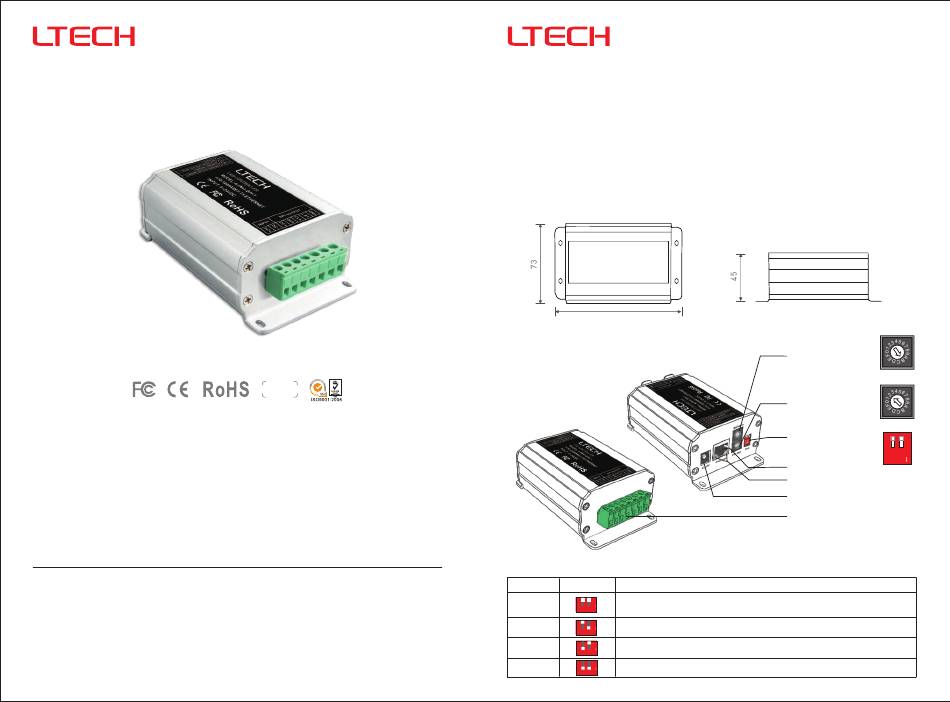

Ltech ArtNet-SPI-1 Quick Start Manual

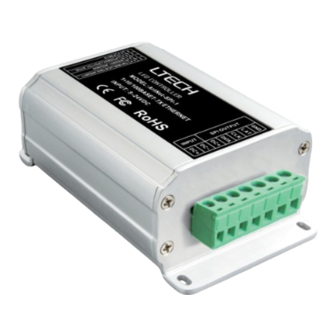

ArtNet-SPI-1
ArtNet-SPI Converter
ArtNet-SPI converter is the Ethernet Control System based on the ArtNet protocol, used to convert the ArtNet
network data package into SPI(TTL) digital signal, adopting high-speed processor, stable and reliable working.
Following ArtNet standard protocol, it supports RJ45 network interface and green terminal output interface.
ArtNet-SPI-1 can control LED lighting with compatible driving IC, such as TM1804/1809, D705, LPD6803/1101,
UCS1903/1909/1912/2903/2909/2912/6909/6912, WS2811/2812/2801/2803, P9813, etc.
It is compatible with all the effects lighting control software which support ArtNet protocol, widely used in the
LED dot matrix and the stage lighting.
1. Technical specs
ArtNet-SPI-1
Power input: 12Vdc (with a power adaptor)
Input signal: ArtNet
Output signal: SPI(TTL) digital signal
Current: 30mA@12Vdc
Network connection: RJ45
Isolation Ethernet port: Total isolation
Isolation power input: Total isolation
ArtNet-SPI-1 ArtNet-SPI Converter
warranty
5 years
IP: Indoor use only
Working temp.: -30 ~65 ℃ ℃
Dimension: L120×W73×H45mm
Package size: L198×W78×H50mm
Weight (G.W):
360g
1
2. Performance features
2.1 Based on ArtNet protocol network data communication, accept network DMX data, output one set SPI data.
2.2 IP address is bound to SubNet, no need to reset, plug and play.
2.3 Manage ArtNet on broadcast mode or unicast mode.
2.4 Compatible with the light software based on ArtNet protocol, control LED lighting.
2.5 Connect up to 256 DMX universes to one network.
2.6 10/100Mb/s Ethernet port.
2.7 Firmware can be updated via the network.
3. Product dimension:
120
4. Interface instruction:
Switching IC type operation instruction:
Diagrams
1 2
TM1804/TM1809/UCS1903/UCS1909/UCS1912/UCS2903/UCS2909/UCS2912
OFF OFF
ON
1 2 WS2811/WS2812/GS8206(BGR)/SM16703
OFF ON
LPD6803/1101, D705, UCS6909/6912
ON
1 2
ON OFF WS2801,WS2803
ON
1 2
P9813
ON ON
ON
1 2
ArtNet-SPI-1 ArtNet-SPI Converter
Universe Dip switch
Universe
Subnet Dip switch
SubNet
IC type switcher
(Operation as follows)
ArtNet input
Status lamp
Power input
Power and LED lamp
connected socket
IC type
2
1 2
ON
Fun
