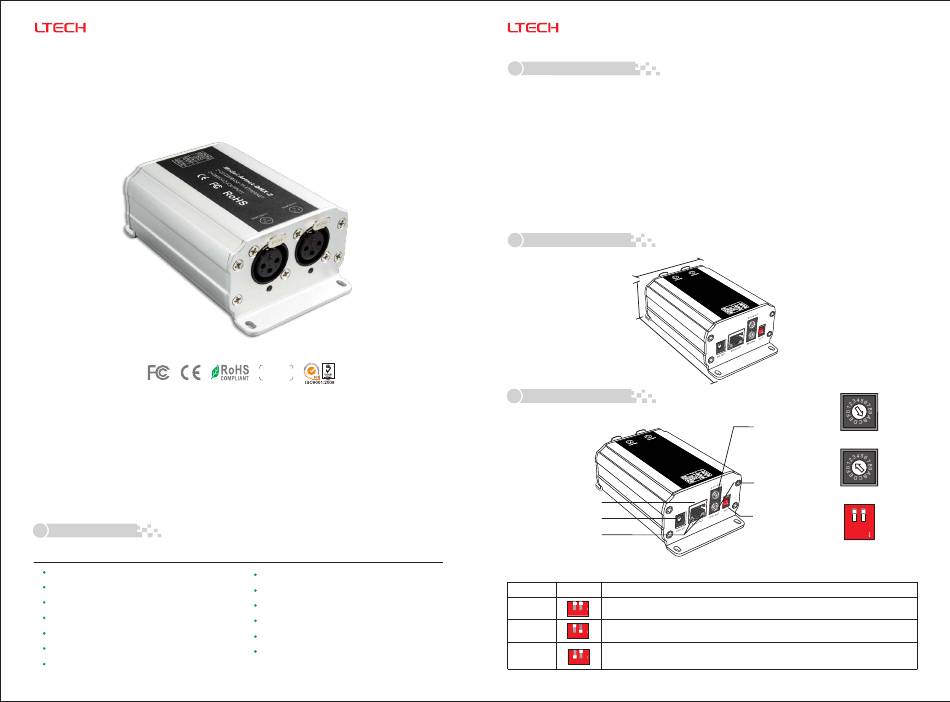

Ltech Artnet-DMX-2 Manual

Artnet-DMX-2
Artnet-DMX Converter
Artnet-DMX converter is the Ethernet Control System based on the Artnet protocol, used to convert
the Artnet network data package into DMX512 data, adopting high-speed ARM processor, stable and
reliable working. Following Artnet standard protocol, it supports RJ45 network interface and standard
DMX512 output interface.
Artnet-DMX-2 has two standard DMX512 data output port, output 1024 data in total.
It is compatible with all the effects lighting control software which support Artnet protocol, widely used
in the LED dot matrix and the stage lighting control network in needing lots of DMX512 data,
especially for TV station recorded scene, stage performances, entertainment and so on.
1. Technical Specs
Artnet-DMX-2
Power input: 12Vdc (with a power adaptor)
Input signal: Artnet
Output signal: DMX512
DMX channels: 512 × 2CH
Current: 30mA@12Vdc
IP: Indoor use only
DMX Output Connection: XLR-3
Artnet-DMX-2 Artnet-DMX Converter
warranty
5 years
Network Connection: RJ45
Isolation Ethernet Port: Transformer isolation
Working temperature: ℃ ℃
-30 ~65
Dimension:
L120×W73×H45mm
Package Size: L198×W78×H50mm
Weight (G.W): 290g
1
2. Performance Features
2 . 1 Based on Artnet protocol network data communication, accept network DMX data;
2 2 IP address is bound to Subnet, no need to reset, plug and play.
.
2 3 Manage Artnet on broadcast mode or unicast mode.
.
2 4 Output 2 group DMX512 data.
.
2 . 5 Set different network segments to avoid multiple sets Artnet data interference.
2 6 Compatible with the light software based on Artnet Protocol, control stage lighting and LED
.
lighting simultaneously.
2.7 Connect up to 256 DMX Universes to one network.
2.8 10BaseT Ethernet Port.
2.9 Data activity indicators
2.10 Configurable DMX output refresh rates.
3. Product Dimension:
73mm
45mm
120mm

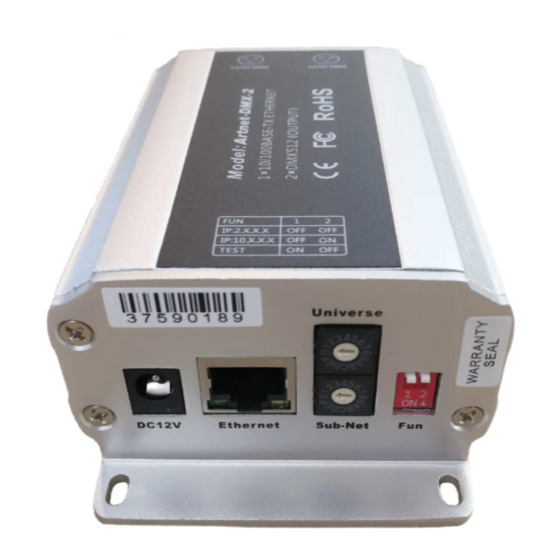

4. Interface Instruction:
Artnet input
Power Input
Status lamp
Switching modes operation instruction:
1 Diagrams
2
OFF OFF
IP Address Setting: 2.0.36.Address
ON
1 2
OFF ON
ON
IP Address Setting: 10.0.36.Address
1 2
Testing function, OUT1 generates 170 pixels full color jumping DMX data,
ON OFF
ON
OUT2 generates 170 pixels full color smooth float DMX data.
1 2
Artnet-DMX-2 Artnet-DMX Converter
1
Universe Dip Switch
Universe
Subnet Dip Switch
Sub-Net
1
Mode Switcher
(Operation as follows)
1 2
ON
Fun
Functions
2 www.ltechonline.com
