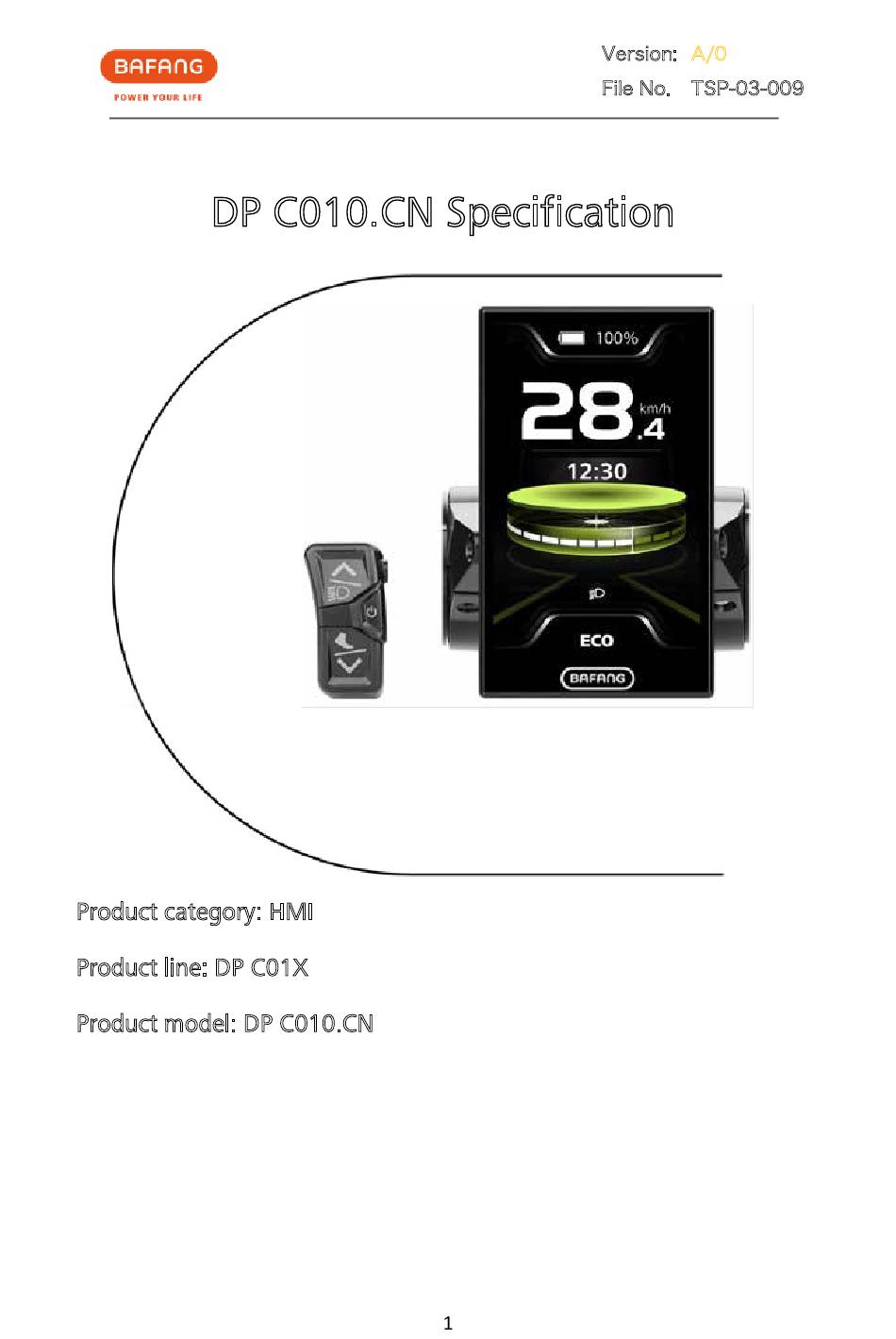

DP C010.CN Specification
Product category: HMI
Product line: DP C01X
Product model: DP C010.CN
Prepared by:
Zhu
Shengbing
Prepared on:
2024-6-18
Reviewed
Liu Yanxia
by:
Reviewed
2024-6-18
on:
Version:
A/0
File No.
TSP-03-009
Approved
Chen Xi
by:
Approved
2024-6-18
on:

Advertisement

loading
Need help?

Need help?

Do you have a question about the DP C010.CN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BAFANG DP C010.CN

Summary of Contents for BAFANG DP C010.CN

  • Page 1 Version: File No. TSP-03-009 DP C010.CN Specification Product category: HMI Product line: DP C01X Product model: DP C010.CN Prepared by: Reviewed Liu Yanxia Approved Chen Xi Shengbing Prepared on: 2024-6-18 Reviewed 2024-6-18 Approved 2024-6-18...

  • Page 2: Table Of Contents

    Contents I. Product introduction: 1. Name: 2. Model: 3. Scope of application: 4. Appearance: 5. Numbering on the back of the product: 6. Numbering on the label on the cable: II. Product Description: 1. Outline drawing: 2. Technical parameters: 3. HMI connector definition: 4.

  • Page 3: Product Introduction

    I. Product introduction: Name Model DP C010.CN Scope of application EN 15194 EPAC 4. Appearance: The housing is made of PC+ABS; the LCD display window is made of tempered glass; the button is made of ABS (as shown in the figure below).

  • Page 4: Numbering On The Back Of The Product

    There are 4 lines of numbers in the middle of the back of the product (as shown in the figure): A、 The 1st line: DP C010.CN DP C010.CN: Bafang HMI model; B、 The 2nd line: DP C010.CN 1.0 DP C010.CN 1.0: HMI hardware number; C. The 3rd line:...

  • Page 5: Numbering On The Label On The Cable

    Numbering is centered on label in two lines, and QR code is on the right side of it (as shown in the picture): QR code content: DPC010CNF80101.0 PD051505 DP C010.CN 1.0 702F8Q7280001 The 1st line: DPC010CNF80101.0 DPC010CN: The software is adapted to DP C010.CN. F8: Design code...
  • Page 6 1: the default startup mode is ECO 5: the default backlight level 05: the default sleep time (min) The 3rd line: DP C010.CN 1.0 DP: the abbreviation of "Display" C 010: C-LCD 01-serial number 0-version number; CA: C-CAN protocol N-navigation 1.0: Hardware version number...

  • Page 7: Product Description

    II. Product Description: Outline drawing: Technical parameters: 4.0 Inch 480*800(RGB) TFT color screen; 36V/43V/48V/50.4V/60V/72V DC power supply; HMI rated power consumption 1.6W HMI max power consumption: 8.5W (chargerd with USB) Power OFF leakage current < 1uA; Operating temperature: -20 ~45 ; Storage temperature: -20 ~60 ;...

  • Page 8: Hmi Connector Definition

    HMI connector definition: For the communication protocol, please refer to the description in the HMI section of Bafang's CAN communication protocol. Functional Overview: 1) Power display; 2) Power-assisted mode adjustment and display; 3) Speed display (including max speed and average speed, metric and imperial units can be converted);...

  • Page 9: Installation

    18) Find my; 19) Message mapping. 5. Installation: Install adapters: Choose suitable adapters according to the diameter of the handlebar. (can be installed to: Ø 22.2, Ø25.4, Ø31.8, Ø35 handlebars). Open the clamp bands, and install the adapters onto the clamp bands. (Note: Ø22.2 handlebar - Ø...
  • Page 10 Fix the HMI: Adjust the installation angle, and secure the HMI to the handlebar. Tighten the fixing screw. [Tightening torque: 1 N.m] Pass the control unit with adapters around the handlebar, and adjust its position and angle. (Applicable to 22.2mm outer diameter handlebar)
  • Page 11 Tighten the screw (M3*12) to secure the HMI by M3 hexagon wrench. (Tightening torque: 1 N.m) Connect the HMI with EB-BUS according to the symbols: F. HMI male connector; f. EB-BUS female connector. Do not cover or block the back of the HMI for the high light-sensitivity.

  • Page 12: Basic Interface

    6. Basic interface: Smart SOC indication: The real-time SOC will be shown on the HMI. Warn display: The icon will light up when there is a warning in the system, and the user can view it on the warn code list in info module. Speed unit display: Unit system can be switched, km/h or mph.

  • Page 13: Button Definition

    7. Button definition: There are 3 buttons, "power ", "plus ", and "minus ". As shown below. "Plus" Power button "Minus" . Normal operation "Press and hold" means that the user press the button for more than 2s, then release it; "press" means that user press the button for less than 0.5s, then release it;...
  • Page 14 Power-assisted mode selection: To switch the power-assisted mode, press "plus" or "minus". The default number of power-assisted modes is 6. The lowest is ECO, and the highest is BOOST; there is no power-assisted output in OFF mode. The default mode when the HMI on is ECO. (As shown below) 6 Modes selection 4 Modes selection Turn the headlight on/off...
  • Page 15 Headlight on/off Walk assistance Press the "minus" to switch the mode to OFF, then press the "minus" again, and Press and hold "minus", and the walk the symbol " " appears. assistance icon " " flashes. The ebike has been in walk assistance mode.
  • Page 16 Functions display Battery SOC indication: SOC is displayed as per actual percentage. When the battery is fully...
  • Page 17 (refer to Bafang communication protocol or order requirements for the definition of battery capacity percentage). Battery SOC: Bluetooth connection The HMI can be connected to Bafang Go developed by our company through Bluetooth developed app according to SDK , or customer's self- provided by our company.
  • Page 18 One-way mileage Headlight state Error Code Bluetooth connect/disconnect Download BAFANG GO+ ( Download BAFANG GO+ (iOS) USB charging To charge the HMI, connect the USB cable with the HMI. If the HMI is OFF, connect the USB cable with the HMI and power ON the HMI. Maximum charging voltage is 5V;...
  • Page 19 USB charge/not charging...
  • Page 20 Service tip When ODO is more than 5,000 km, the service tip icon will appear on the to remind the user that he/she should go to the after-sales store for maintenance. In general the function is turned off by default. Service tip Data aggregation interface In the main interface, double press the power button to enter the...

  • Page 21: Information Setting And Viewing

    Data aggregation interface shift 9. Information setting and viewing: 1) Quick setting: Backlight luminance setting plus" and "minus" buttons at the same time to go to the Press and hold " quick setting menu. Press "plus" or "minus" to select "Brightness". Press the power button to enter the setting, press and hold of press "plus"...
  • Page 22 Automatic off time setting interface Go to the quick setting menu, press "plus" or "minus" to select "Auto Off". Press the power button to enter the setting, press "plus" or "minus" to select "OFF" / “1” / “2” / “3” / “4” / “5” / “6” / “7” / “8” / “9” min ("OFF"...
  • Page 23 Clock setting Set the theme Go to the quick setting menu, press "plus" or "minus" to select "Theme", confirm. Press and hold "Plus" and "Minus" at press the power button to the same time to exit back to the main interface 3 themes are as shown below: Set the modes plus"...
  • Page 24 Clear Trip Go to the quick setting menu, press "plus" or "minus" to select "Trip reset", press the power button to set "YES ". Press and hold "Plus" and " at the same time to exit back to the main interface. "Minus 2) HMI basic parameters setting Clear Trip...
  • Page 25 Unit setting Service tip On the "Display setting" menu, press "plus" or "minus" to select "Service tip", press the power button to enter, press "plus" or "minus" to select "ON " or " ", and press the power button to confirm. Press and hold "...
  • Page 26 back to the main interface. Light sensitivity setting interface Password ON/OFF On the "Display setting" menu, press "plus" or "minus" to select "Boot Password "plus" or "minus" to select ", press the power button to enter, press "0" ~ "9" to confirm.
  • Page 27 After setting, enter the password after the startup animation. Press "plus" or "minus" to select "0"~"9", and press the power button to confirm. Enter the 4-digit password in sequence to go to the main interface. Reset Password On the "Display setting" menu, press "plus" or "minus" to select "Reset Password "plus"...
  • Page 28 Reset Password...
  • Page 29 3) Information view: View the wheel size and speed limit Go to the "Information" menu, press "plus" or "minus" to select "Wheel size"/"Speed limit" will be highlighted. Press and hold . The item selected "plus" and "minus" at the same time to exit back to the main interface. Wheel size and speed limit viewing View the battery information press "plus"...
  • Page 30 View the controller information Go to the "Information" menu, press "plus" or "minus" to select "Controller info". Press the power button to enter. Press the power button to view the information of the controller. Press the power button to exit back to the menu interface. Press and hold "plus" and "minus" at the same time to exit back to the main interface.
  • Page 31 HMI Info view interface View the sensor information press "plus" or "minus" to select "Sensor Go to the "Information" menu, info". Press the power button to enter. Press the power button to view the information of the sensor. Press the power button to exit back to the menu interface.
  • Page 32 menu interface. Press and hold "plus" and "minus" at the same time to exit back to the main interface. (Note: For detailed information, see the error code list.) Warn code viewing / HMI warn View the error code information press "plus" or "minus" to select "Error Go to the "Information"...
  • Page 33 4) Set the system Language to the "language" menu, press "plus" or "minus" to select "English"/"Deutsch"/"Nederlands"/"Français"/"Italiano"/"Čeština", and press the power button to confirm. Press and hold "plus" and "minus" at the same time to save and exit back to the main interface. System language setting 5) Set the system theme theme...

  • Page 34: Navigation Mapping

    Fashion 10. Navigation Mapping The function is enabled when the user uses the HMI with BAFANG GO+. When the user starts navigation with the app, the navigation route will map to the HMI synchronously. For detailed operation, see BAFANG GO+ App Operation Manual.

  • Page 35: Find My

    11. Find my To go to Find my function interface, press and hold "+", "-" and the power button under the main interface. After successful pairing, it will go to the pairing success interface, where there are two options: 1."Disable location": Select it to disable the Find my function; 2."More information": Go to the interface to allow other iPhones to view the information about the HMI for 5 minutes.

  • Page 36: Message Mapping

    HMI from you iPhone, and pair them again. 12. Message Mapping Make relevant settings through BAFANG GO+ app, and the messages received by the mobile phone can appear on the HMI synchronously. For the specific operation process, see the BAFANG GO+ app Operation Manual.

  • Page 37: Torque Assist Switching

    13.Torque Assist Switching Mode This function is a special feature designed for torque-equipped models, allowing riders to switch between torque-based riding effects and speed-based riding effects for different cycling experienc-...
  • Page 38 14.Regulation-compliant ODP Switching Mode...
  • Page 39 15.Current Step Adjustment Percentage This feature provides a higher level of customized riding experience. The current intensity can be adjusted in each gear, 15.allowing the riding experience to better suit personal preferences.
  • Page 40 16.Speed Gear Adjustment Percentage This function can be used in conjunction with the current adjustment percentage, allowing each gear's maximum speed to be customized according to personal preferences, providing riders with tailored speed limits for each gear.

  • Page 41: Copyright Statement

    For EPAC questions, contact your dealer first, unless you are the EPAC manufacturer. The copyright and other intellectual property rights of this product specification are owned by Bafang Electric (Suzhou) Co., Ltd. Content and images owner: Bafang Electric (Suzhou) Co., Ltd No.6 Dongyanli Rd., Suzhou Industrial Park, 215125 Suzhou,...
