6.2. Production label


Firmware version (FW): 1.0.x (X is a number 0 or more)

Hardware version (HW): 03 and higher


6.3. PROFIsafe address switch

An eight-bit DIP-Switch is provided for the F_Address of PROFIsafe. The switch setting is only checked at
power-up. Any changes made during operation are ignored and may lead to problems during the next
power-up sequence
Using the DIP switches:
・ Unscrew the cover and hinge it upwards.
・ The DIP switches can be adjusted with a small flat-blade screwdriver.
・ Tighten the cover again, making sure that the seals are positioned correctly. (torque = 0.3 Nm)
Note:
The F-Address bit numbering shown on the label has priority over any numbers printed on the DIP switch.
The default state (factory setting) for this DIP switch is all OFF.

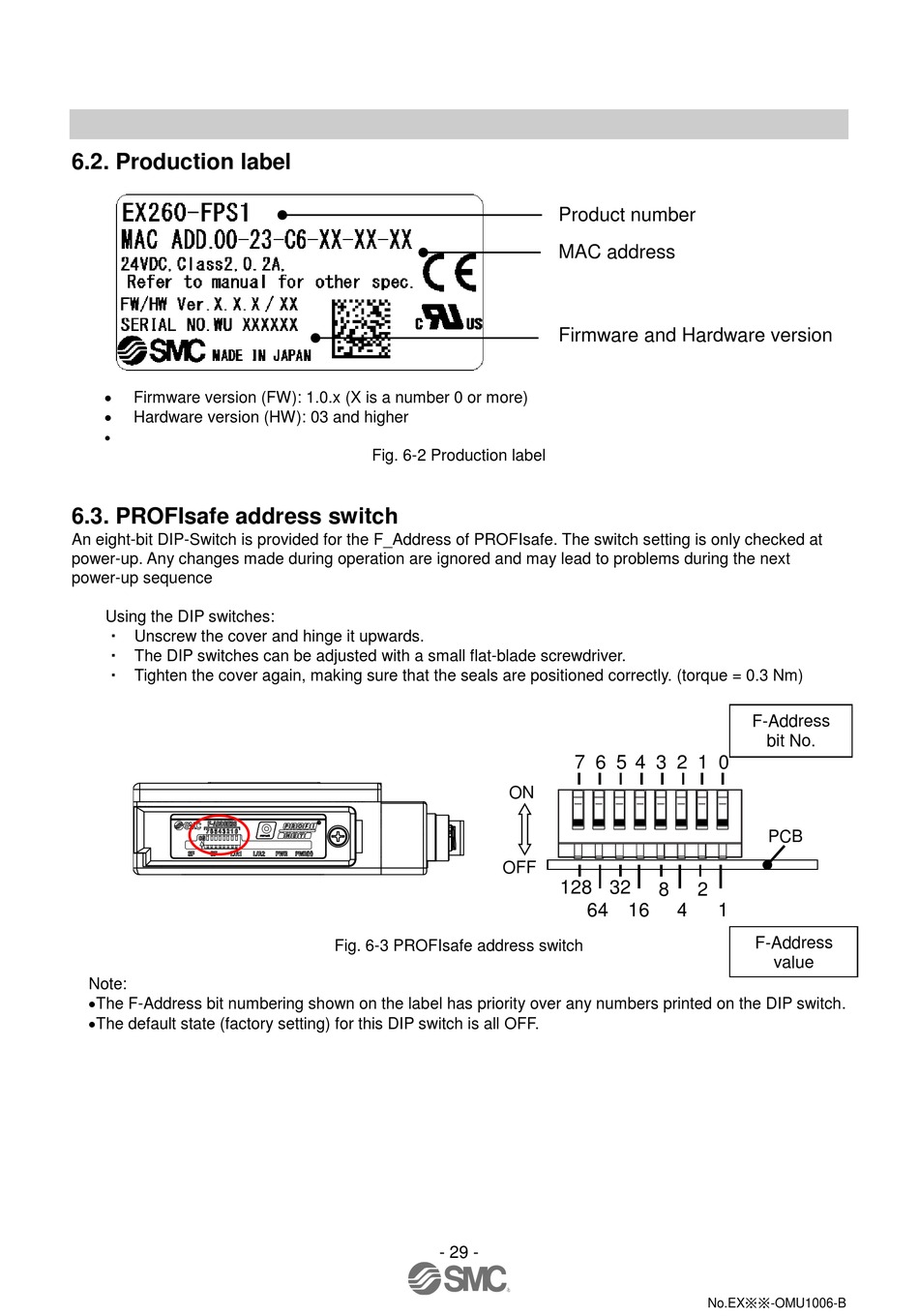

Fig. 6-2 Production label
OFF
Fig. 6-3 PROFIsafe address switch
