2.2. Parts and description

No.
Components
PROFINET connection
1
(BUS OUT)
PROFINET connection
2
(BUS IN)
3
Power supply connection
4
FE terminal
5
Output connector
F-Address switch under the
6
switch cover
7
LED indicators
8
Mounting hole
9
Production label
10
Security label
Accessories
Components
Hexagon socket head cap screw
Seal cap
PROFINET connection for Port 2
M12 4-pin socket, D-coded
PROFINET connection for Port 1
M12 4-pin socket, D-coded
Power supply for valves and power supply for logic of the SI unit
M12 4-pin plug, A-coded
Functional Earth terminal
M3 screw
Output connection for valve manifold
An eight-bit DIP-Switch is provided for the safety address setting
LED display to indicate the status of SI Unit
Mounting hole for connection to the valve manifold
Production label indicates the SI Unit information, MAC address and so on
To prevent hardware modification
2 pcs. M3 x 30 screw for connection to the valve manifold
1 pc. seal cap for unused fieldbus interface connector

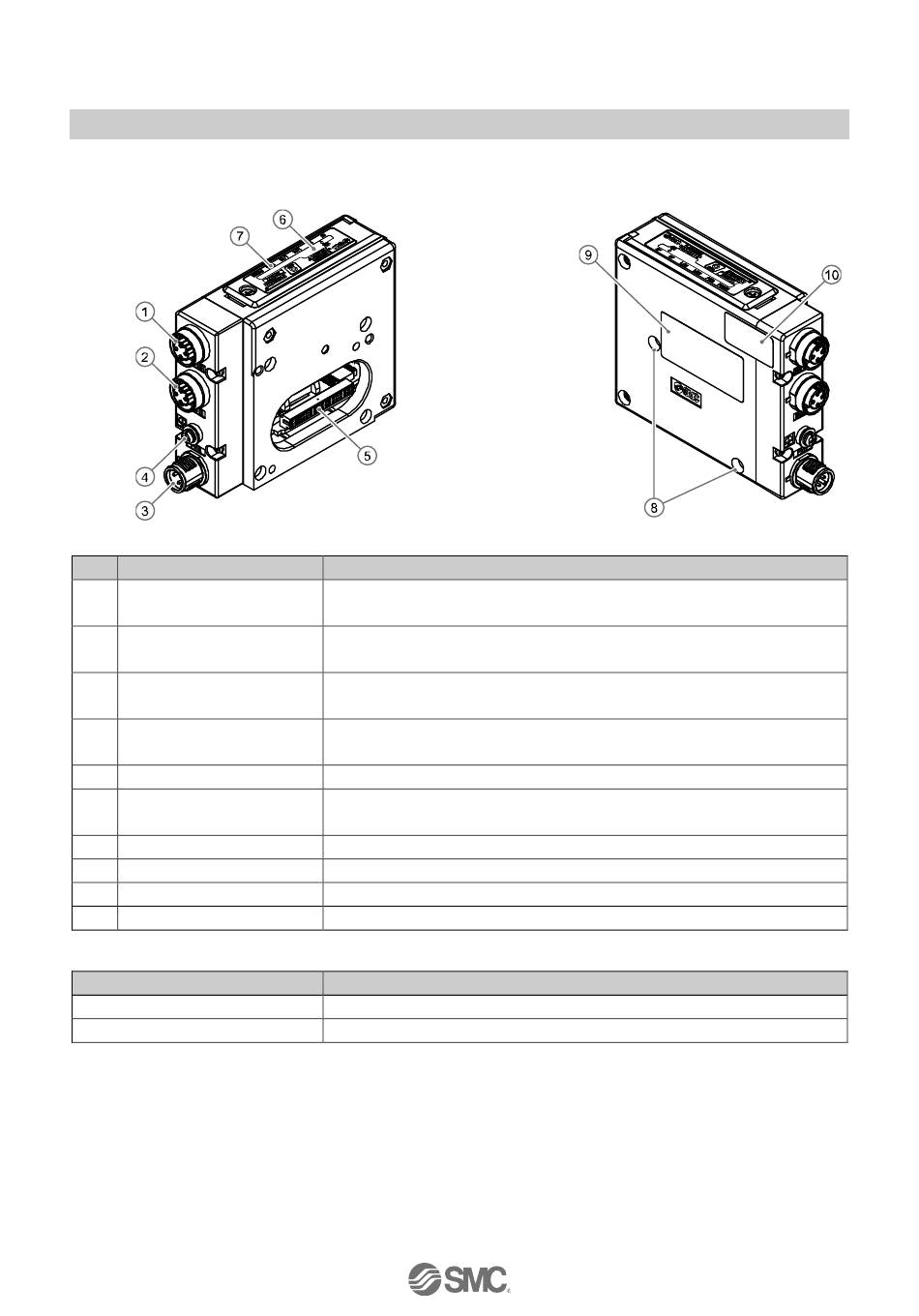

Fig. 2-1 Description of parts on the SI Unit and accessories
