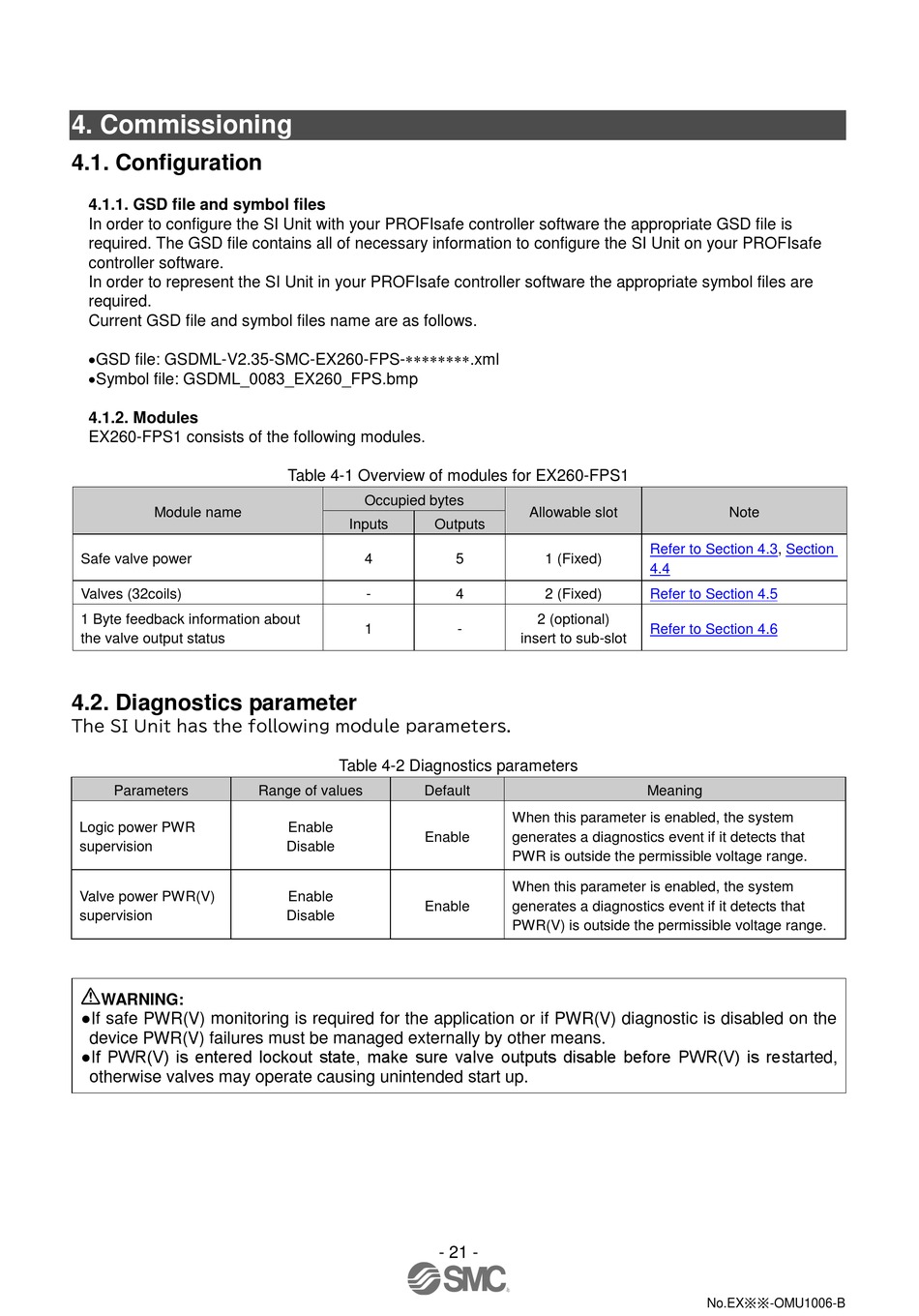

4. Commissioning

4.1. Configuration

4.1.1. GSD file and symbol files
In order to configure the SI Unit with your PROFIsafe controller software the appropriate GSD file is
required. The GSD file contains all of necessary information to configure the SI Unit on your PROFIsafe
controller software.
In order to represent the SI Unit in your PROFIsafe controller software the appropriate symbol files are
required.
Current GSD file and symbol files name are as follows.
GSD file: GSDML-V2.35-SMC-EX260-FPS-.xml
Symbol file: GSDML_0083_EX260_FPS.bmp
4.1.2. Modules
EX260-FPS1 consists of the following modules.
Module name
Safe valve power
Valves (32coils)
1 Byte feedback information about
the valve output status

4.2. Diagnostics parameter

The SI Unit has the following module parameters.
Parameters
Logic power PWR
supervision
Valve power PWR(V)
supervision
WARNING:
●If safe PWR(V) monitoring is required for the application or if PWR(V) diagnostic is disabled on the
device PWR(V) failures must be managed externally by other means.
●If PWR(V) is entered lockout state, make sure valve outputs disable before PWR(V) is restarted,
otherwise valves may operate causing unintended start up.
Table 4-1 Overview of modules for EX260-FPS1
Occupied bytes
Inputs
4
-
1
Table 4-2 Diagnostics parameters
Range of values Default
Enable
Enable
Disable
Enable
Enable
Disable
Allowable slot
Outputs
5 1 (Fixed)
4 2 (Fixed)
2 (optional)
-
insert to sub-slot
When this parameter is enabled, the system
generates a diagnostics event if it detects that
PWR is outside the permissible voltage range.
When this parameter is enabled, the system
generates a diagnostics event if it detects that
PWR(V) is outside the permissible voltage range.
- 21 -
Note
Refer to Section 4.3, Section
4.4
Refer to Section 4.5
Refer to Section 4.6
Meaning
No.EX※※-OMU1006-B
