3. Installation
3.1. Mounting
Caution
For a protection rating of IP67 to be ensured, apply the recommended tightening torque.
3.1.1. Valve manifold connection
Connect the valve manifold with the 2 screws on the SI Unit. (Hexagonal socket wrench size 2.5)
Note:
Tighten the screws while holding the SI unit and the valve manifold so that there is no gap between them.
Tighten the screws with the tightening torque specified.
(Tightening torque: 0.6 Nm)
SI Unit

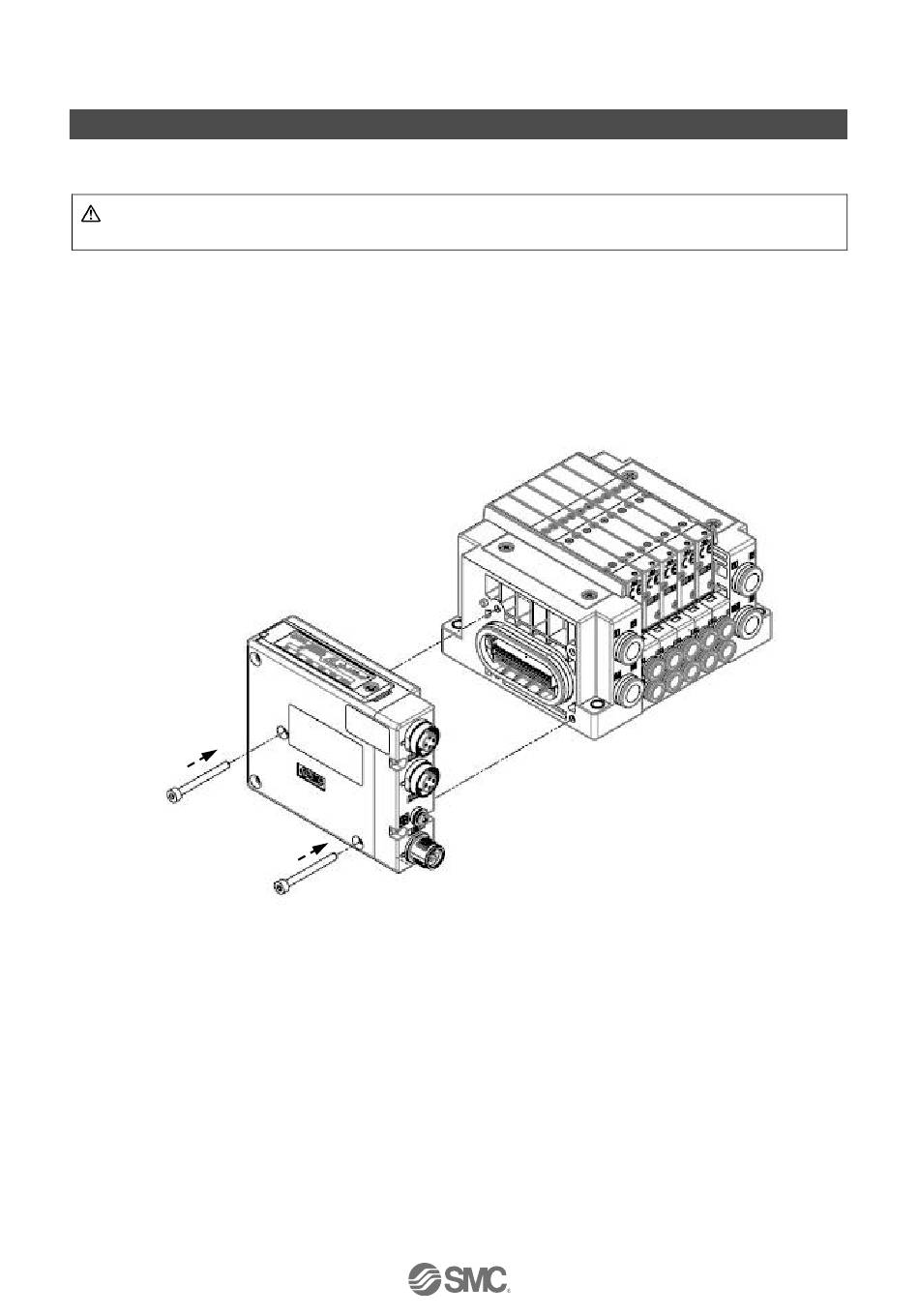

Fig. 3-1 Valve manifold connection
- 16 -
Valve manifold
No.EX※※-OMU1006-B
