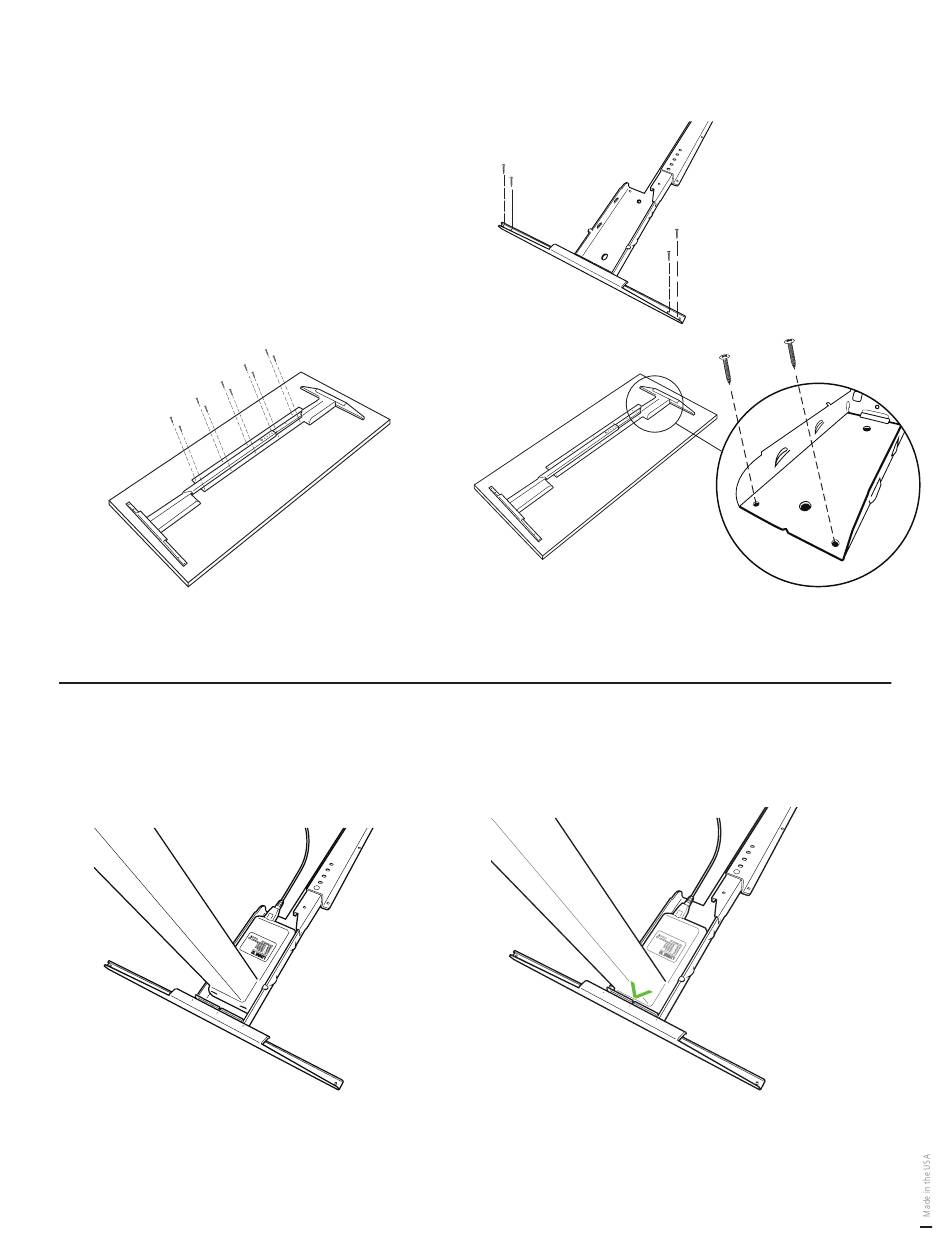

6.
Attach Kick and Click frame to table top approx 1" from each
side while centering the frame to the desired desktop.
6.1
Screw cantilevers into top using tapping screw.
6.2
Screw rails into top using tapping screws.
7.
Attach desk legs to frame bases.
7.1
Slide column backward into the base.
6.3
Screw bases into top using tapping screws.
11
