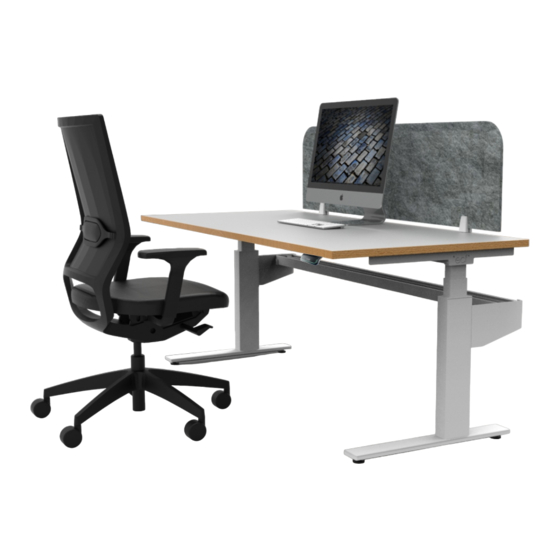

- Page 1 Shift Electric Sit Stand Desk Shift Electric Sit Stand Desk Setup / Operating / Troubleshooting Manual Setup / Operating / Troubleshooting Manual linak.com.au/DESKLINE...
-
Page 2: Factory Reset
NOTE: Must be done prior to first use Intialisation NOTE: Before INITIALISATION is carried out, the ANTI COLLISION feature is disabled. Please ensure you remove any objects or items from under the desk frame to avoid any collision whilst the desk is initialising. Please repeat the below steps in the event of a power interuption. - Page 3 Setting memory positions...
- Page 4 Driving to favourite positions After Saving the favourite positions, the user can reach the positions simply by tilting/pressing the DPG1M 1. Tilt/press and hold - when a saved position has been reached the desk stops. 2. Release DPG1M within one second This way the user can easily change between sitting and standing height without looking at the DPG1M in the meantime.
- Page 5 Operate the desk panel by tilting it. 1. Tilt and hold up DPG to drive desk up, press and hold down DPG to drive desk down 2. Release DPG when you have reached your requested position. Height settings and lower limits can now be adjusted via the switch with ease Desk Height limits In case the desk cannot be operated in its entire span (e.g.
- Page 6 TROUBLESHOOTING FOR SERVICE AGENT Note: Refer to Error Code list for specific description before following the steps below Possible Reason(s) Symptom What to do • Check all connections. • Malfunctioning desk panel or The desk does not run at all. No •...
- Page 7 Error codes for CBD6S troubleshooting: Error Code Name Description Unexpected Rest unexpected rest caused by software er - ror or external rest LIN error An error occurs on LIN bus Power fail A power failure occured or power regu lator adjusted below 10% Channel count Number of channels connected to the changed...
- Page 8 Channel 4 pulse Channel 5 pulse Channel 6 pulse Channel 1 Overload up Overload occurs outwards Scan the QR code Channel 2 Overload up to go to YouTube instruction videos Channel 3 Overload up Channel 4 Overload up Channel 5 Overload up Channel 6 Overload up Channel 1 Overload down Overload occurs inwards...
- Page 9 Channel 3A shorted Channel 3B shorted Channel 4A shorted Channel 4B shorted Channel 5A shorted Channel 5B shorted Channel 6A shorted Channel 6B shorted Massage Massage unit has been disconnected or failed DC out DC unit has been disconnected or failed Radio dead Radio circuit has died and has had to be restart - Master...
-
Page 10: Method Of Operation
Method of operation The DS1 operates on the gyroscope principle detecting tilting of the desk. If the desk starts tilting while driving up or down, the DS1 reacts to an angle change. If the angle change is larger than 0.7° per second, the DS1 immediately stops the desk and drives it in the opposite direction. -
Page 11: Installation
Installation Ensure that the CBD6S and/or T-splitter are fixed securely to the tabletop for optimal DS1 performance. The DS1 reacts to angle changes from its original position. Thus, the DS1 mounting direction is not important. If the DS1 is removed from the system or is no longer mounted correctly, the desk panel will show error 94 at the first activation. - Page 12 3. Plug serial cable into RJ45 socket on IC column. 4. Plug serial cable into a port on double-port side of T-splitter. 5. Plug cable for desk panel into the other port on double-port side of T-splitter.
- Page 13 2 LEG FRAMES (1 x MASTER + 1 x SLAVE) TYPICAL SETUP 1 X IC POWER SUPPLY 1 X MOUNTING BRACKET FOR IC POWER SUPPLY 1 X POWER CABLE FOR IC POWER SUPPLY 1 X LEAD - POWER SUPPLY TO MASTER LEG 1 X LEAD - MASTER LEG TO SLAVE LEG 2m 1 X DS1 KIT FOR IC (1 X DONGLE, 1 X SPLITTER, 1 X LEAD) 1 X STANDARD CONTROLLER...
