Understanding the Interrupter
Indicators
The interrupter indicators are located
underneath the interrupter base. The indicators
are not meaningful while the interrupter is being
closed and charged.
If the interrupter is "OPEN" and discharged,
the indicator reads "OPEN." See Figure 71.
If the interrupter is "CLOSED" and charged,
the indicator reads "CLOSED." See Figure 72.
"OPEN" and discharged

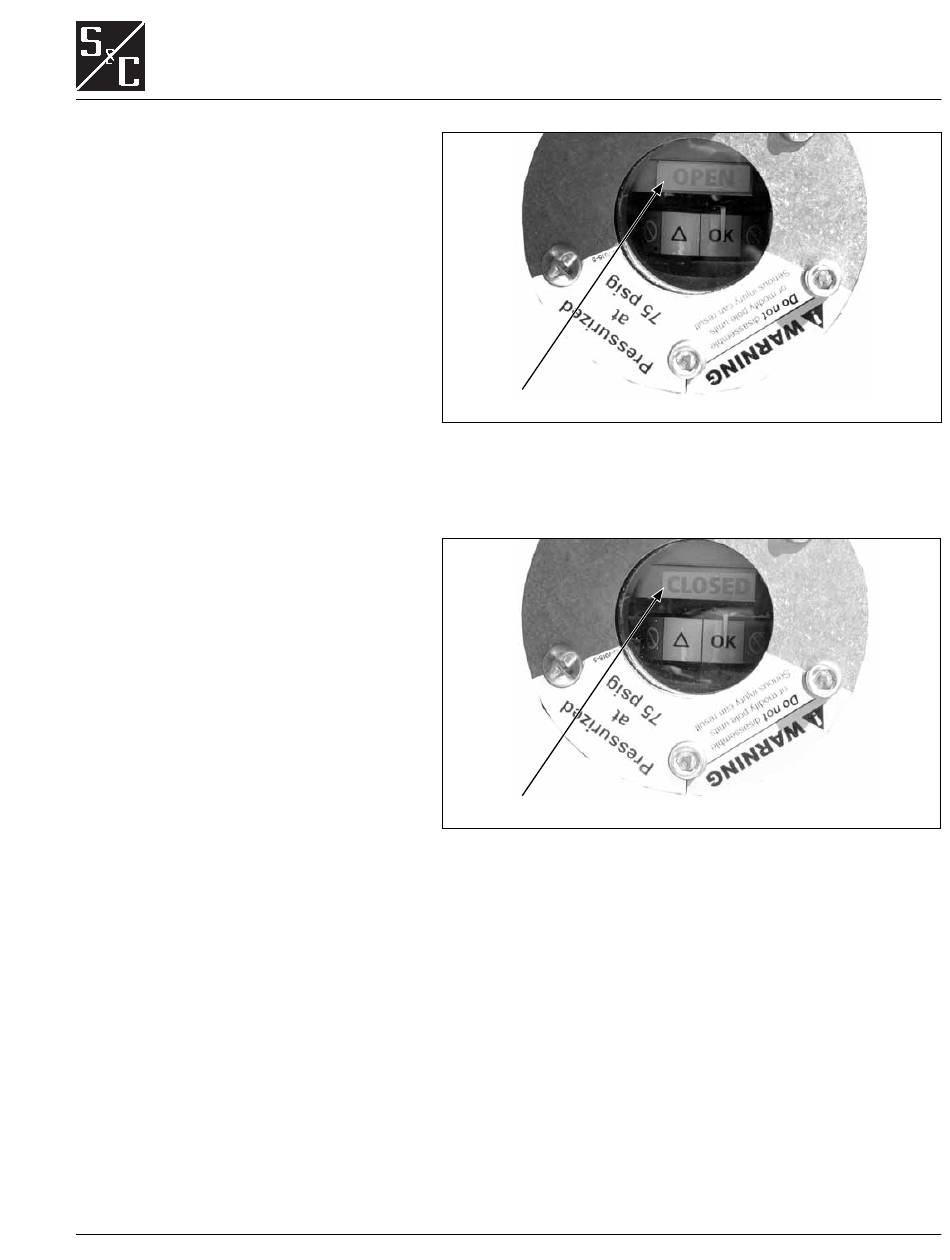

Figure 71. The interrupter is "OPEN" and discharged. The indicator reads
"OPEN."
"CLOSED and CHARGED"
Figure 72. The interrupter is "CLOSED" and charged. The indicator reads
"CLOSED."
53
INDICATORS
712-502
