WIRING AND ADJUSTING THE SWITCH OPERATOR
Step 57
Adjust the closing-stroke travel-limit disc (and
the associated cams) as follows:
a. Manually crank the disconnect to the fully
closed position.
b. Grasp the handwheel and turn it to the extent
possible in a direction opposite to the direc-
tion the output shaft rotates to close discon-
nect. See Figure 56.
c. With the handwheel held in the position
indicated above, lower the closing-stroke
travel-limit disc approximately ³⁄₁₆ of an
inch and rotate the disc until the arrow on
the outer ring is in line with the number 5 on
the indicator plate. Raise the disc, make sure
it is engaged, and release the handwheel.
Handwheel

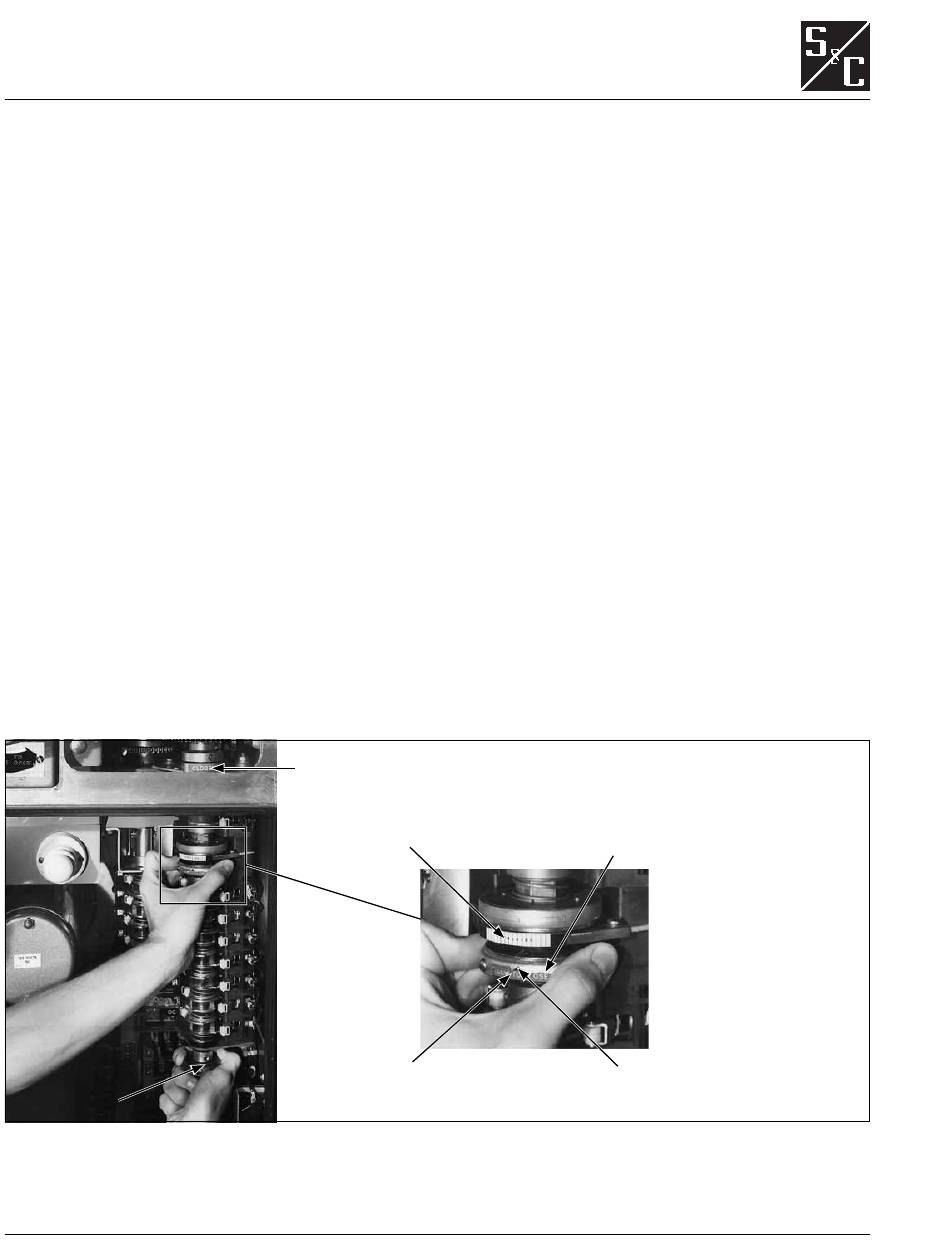

Figure 56. Adjustment of closing-stroke travel-limit disc.
712-502
Switch operator position
indicator (closed)
Indicator plate (with numbers)
Cutaway section (on outer ring)
38
Closing-stroke travel-limit
disc (in lowered position)
Arrow (on cutaway section)
