Circuit-Switcher Startup And Checkout; Startup - S&C Mark VI Instructions For Installation Manual

Startup

Ç
DANGER
Conductors must be de-energized and
grounded in accordance with standard sys-
tem operating practice. Failure to do so
can result in serious injury or death.
Step 69
Verify that the disconnect is in the "COUPLED"
position by looking at the internal decoupling
mechanism inside the CS-1A Switch Operator.
See Figure 67 and 68. If the switch operator is
"DECOUPLED," manually operate the switch
operator to bring it into the same position as the
disconnect (open or closed). See Figure 68. For
instructions on coupling the switch operator,
refer to Step 51.

CIRCUIT-SWITCHER STARTUP AND CHECKOUT

Internal decoupling
mechanism
(in decoupled position)

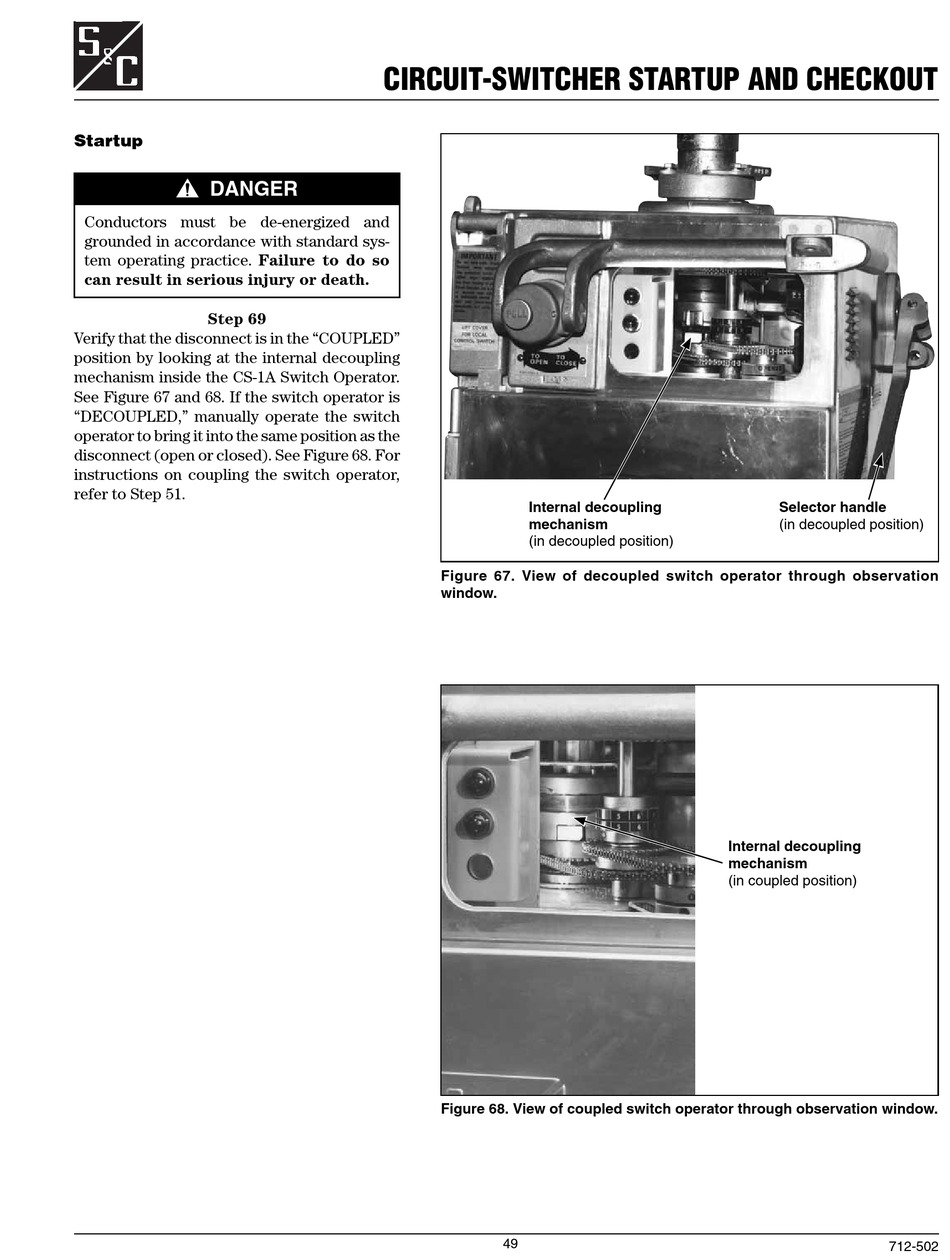

Figure 67. View of decoupled switch operator through observation
window.
Figure 68. View of coupled switch operator through observation window.
49
Selector handle
(in decoupled position)
Internal decoupling
mechanism
(in coupled position)
