Installing the Drive Train, Gearbox,
and Interphase Shaft
Step 20
The drive train is comprised of several sections
of interphase shaft that connect the three
pole-units to each other, a section of vertical
operating shaft that is directly driven by the
Mark VI CS-1A Switch Operator and a gearbox
that connects the vertical operating shaft to the
interphase shaft. See Figure 19.
Interphase shaft
Gearbox
Vertical shaft
Flexible coupling
Rigid coupling
T-coupling or rigid coupling
(T-coupling shown)
Flexible coupling
(output shaft of operator)

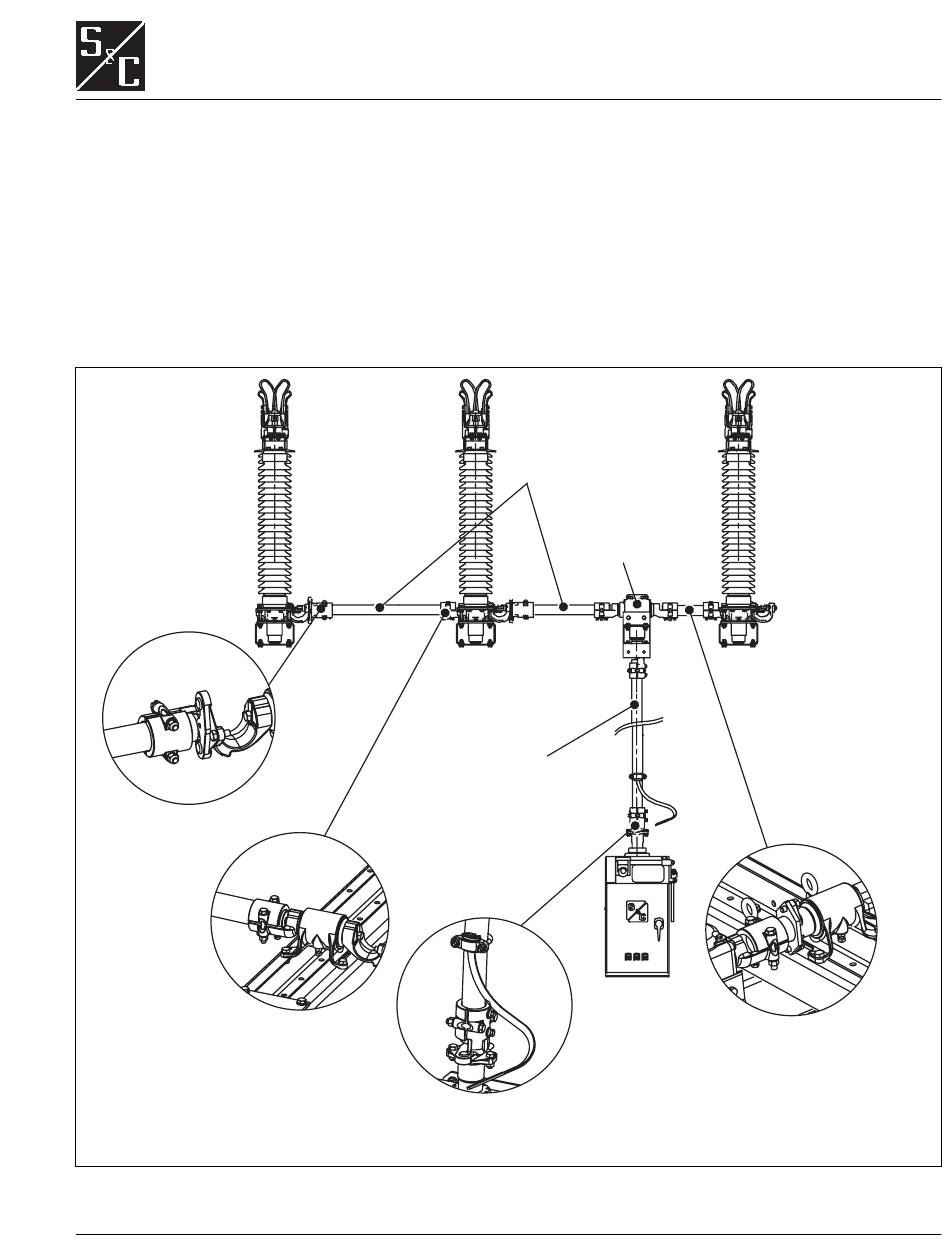

Figure 19. Drive train with coupling detail views.
17
712-502
