Step 42
Remove and retain the eight 10-32
stainless-steel round-head machine screws that
secure the motor cover to the motor housing.
Remove the motor cover, and set the cover
and screws aside in a protected area. See
Figure 39.
Step 43
Connect the conduit to the ¹⁄₂-14 NPT tap on
the side of the motor housing, and pull the
wires through into the motor housing. Use
watertight fi ttings to make all connections. See
Figure 40.
Step 44
Following the supplied wiring diagram, make
the necessary wiring connections to the terminal
block in the motor operator. See Figure 57.
DO NOT remove the jumper between Terminals
8 and 9. Train the motor wiring towards
the center of the housing so that the motor
wiring does not come in contact with the motor
cover. Bend the terminal lugs if necessary. Then
replace the motor cover and secure it using the
⁵⁄₈-inch round-head machine screws
10–32
retained from Step 50.
NOTICE
If control power is lost while the Mark
VI Circuit-Switcher interrupter charging
motors are closing and charging the pole-
units, the jumper between Terminals 8 and
9 will force the motor operators to "reset" to
the beginning of their charging cycle when
control power is restored.
Step 45
Replace the motor cover and secure it using the
screws retained from Step 43.
Ç
CAUTION
DO NOT connect the wiring from the Mark
VI CS-1A Switch Operator at this time. Keep
the wiring clear of any moving parts inside
the operator.
⁵⁄₈ inch

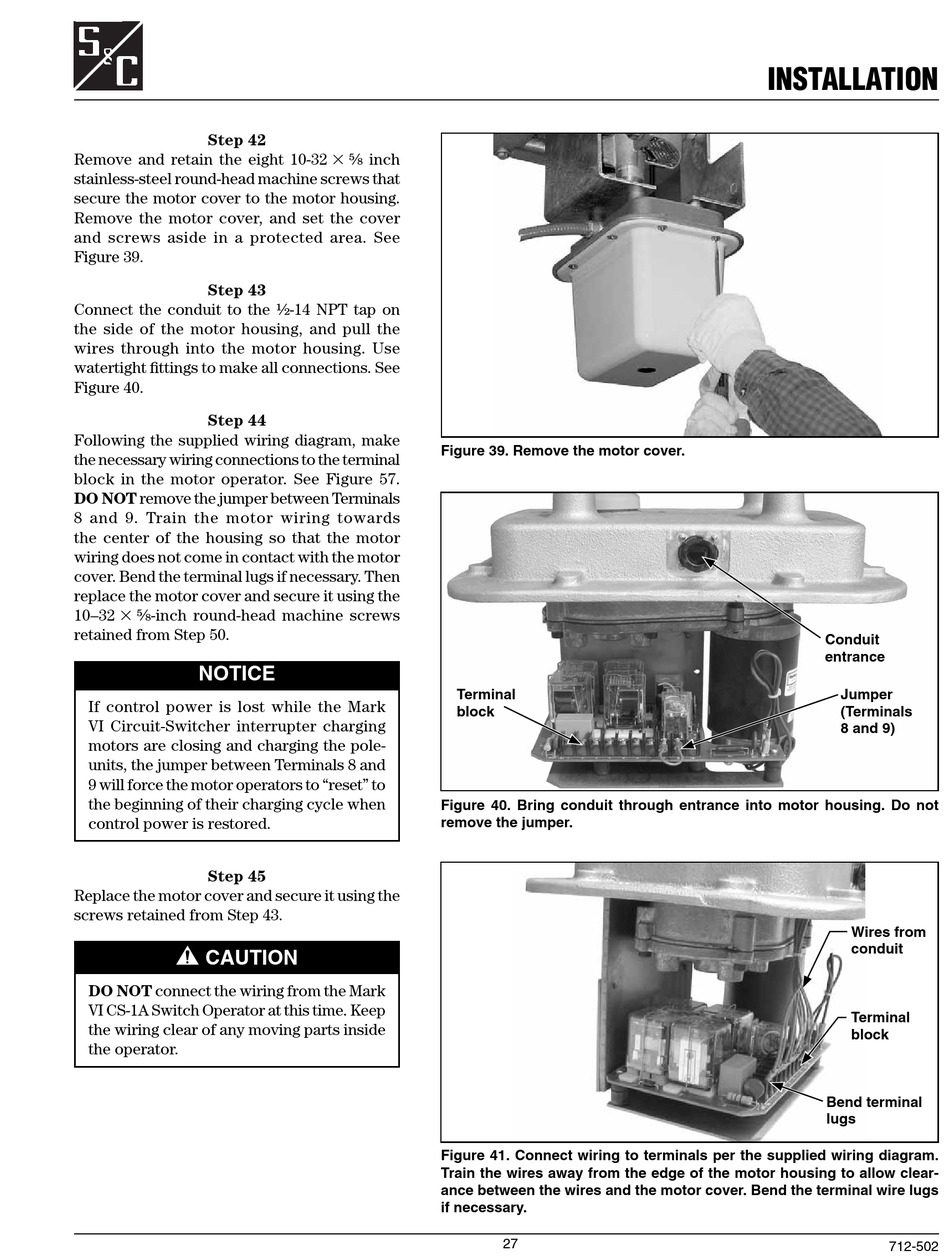

Figure 39. Remove the motor cover.
Terminal
block
Figure 40. Bring conduit through entrance into motor housing. Do not
remove the jumper.
Figure 41. Connect wiring to terminals per the supplied wiring diagram.
Train the wires away from the edge of the motor housing to allow clear-
ance between the wires and the motor cover. Bend the terminal wire lugs
if necessary.
