APPENDIX F - Using the optional ALIF3000 rack shelf

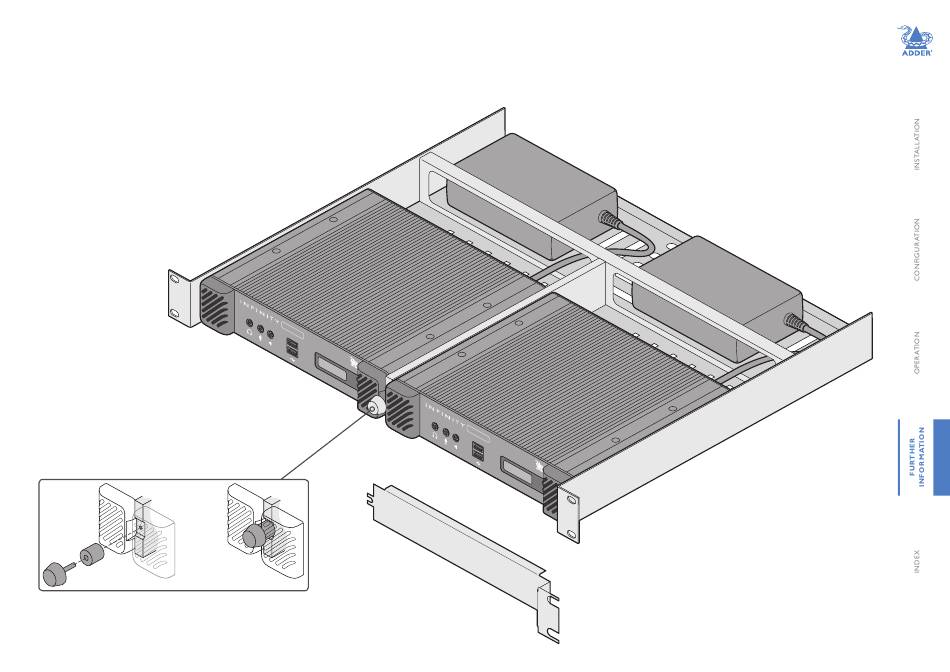

1 Install the empty ALIF3000 rack mount tray into your 19" rack frame and fully
secure it.
2 Place an ALIF3000 unit into each side of the rack mount tray so that their rear
panels butt up against the small pegs located on each of the side walls.
3 Locate the supplied thumbscrew and spacer.
4 Insert the thumbscrew through the spacer; then insert into the small hole at
the end of the center divider (A).
5 Gently tighten the thumbscrew so that the spacer engages with
the inner edges of the two ALIF3000 units and holds them in
place (B).
6 Place the power adapters in the rear section of
the rack mount tray and connect them to
their respective ALIF3000 units.
7 Make all other
necessary connections
to the ALIF3000 units.
(A) (B)
A d
d e rL
in k
3
0
0
0
1
2
IMPORTANT: When mounting the ALIF units (and their
power adapters), ensure that the vents are not obscured
and that there is sufficient airflow. The operating
temperature range is 0 to 40ºC (0 to 104ºF) and must
not be exceeded. Each power adapter is rated at a
maximum of 68.24BTU/hr.
A d
d e rL
in k
3
0
0
0
1
2
An optional blanking plate (part number:
RMK12-BP) is available to seal the airflow
if only one ALIF3000 unit is installed within
a rack mount tray.
