KVM & VM network links
Two SFP ports are located on the rear panel to allow fiber or copper links to separate
networks, according to the type of modules that are inserted.

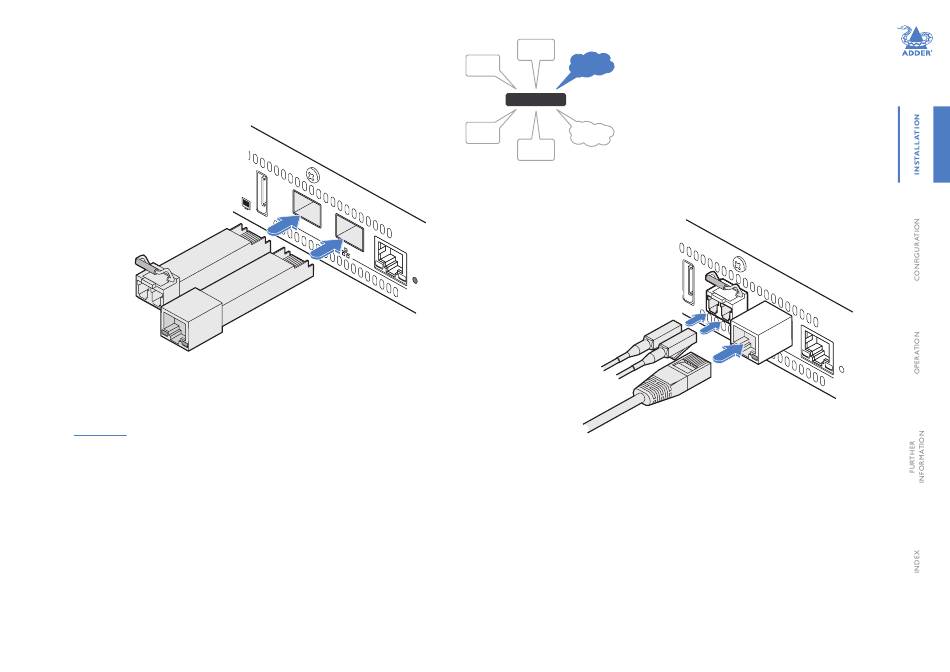

To create fiber links
1 Insert the appropriate optional SFP
module (SFP-MM-LC, SFP-SM-LC or
SFP-CATX-RJ45) into socket 1 and/
or 2 located on the rear panel of the
unit:
Fiber SFP
module
Copper/CATx
SFP module
Note: SFP-CATX-RJ45 for use with CAT5e (and above) cable.
SFP-SM-LC modules require OS1 or OS2 single mode fiber.
SFP-MM-LC modules require OM1, OM2, OM3 or OM4 multi-mode fiber.
See Appendix E for details.
Note: Units shipped before
July 1st 2020, will have
their network link ports
incorrectly labeled in the
order (L to R): 1,2, 3.
1
2
2
1
3
VIDEO
DISPLAYS
KVM & VM
AUDIO
NETWORK
DEVICE S
ALIF3000 RX
USB
VM-ONLY
DEVICES
NETWORK
POWER
IN
2 Make your connection(s) between
the chosen SFP module(s) and
suitable network switch(es):
Fiber links
CATx link
3 For fiber links, close the latch over the link connectors to lock them into place.
Note: Units shipped before
July 1st 2020, will have
their network link ports
incorrectly labeled in the
order (L to R): 1,2, 3.
1
2
2
1
3
