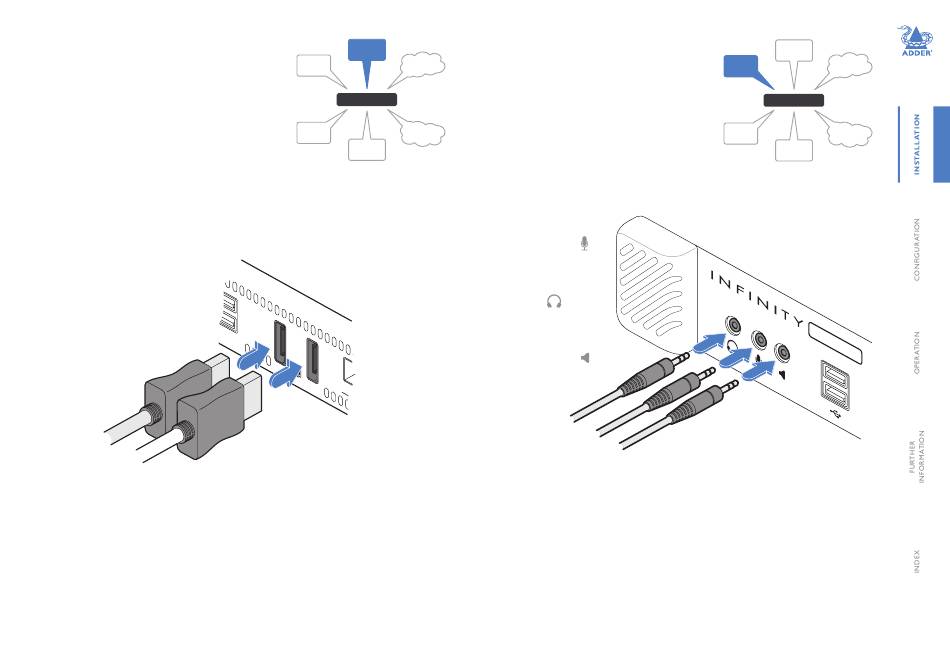

Video displays
The ALIF3000 unit supports two video displays,
each up to 1920x1200 or a single display at
2560x1600, with refresh rates up to 60Hz.
To connect video displays
1 Connect the lead from the primary video display to the DisplayPort
socket marked '1' on the rear panel:
To
primary
video
display
To
secondary
video display
2 If required, connect the lead from the second video display to the
DisplayPort socket marked '2' on the rear panel.
VIDEO
DISPLAYS
KVM & VM
AUDIO
NETWORK
DEVICE
S
ALIF3000 RX
USB
VM-ONLY
DEVICES
NETWORK
POWER
IN
5
6
1
2
Audio
The ALIF3000 unit can support a microphone
as well as speakers and/or headphones.
To connect a microphone, headphones and/or speakers
1 Connect the lead from a
mono microphone to the
3.5mm socket labeled
on the front panel.
2 Connect the lead from
headphones to the 3.5mm
socket labeled
on the
front panel.
3 Connect the lead from
stereo speakers to the
3.5mm socket labeled
on the front panel.
To/from
audio
devices
VIDEO
DISPLAYS
KVM & VM
AUDIO
NETWORK
DEVICE
S
ALIF3000 RX
USB
VM-ONLY
DEVICES
NETWORK
POWER
IN
A d
d e r
L i n
k
3
0
0
0
1
2
8
