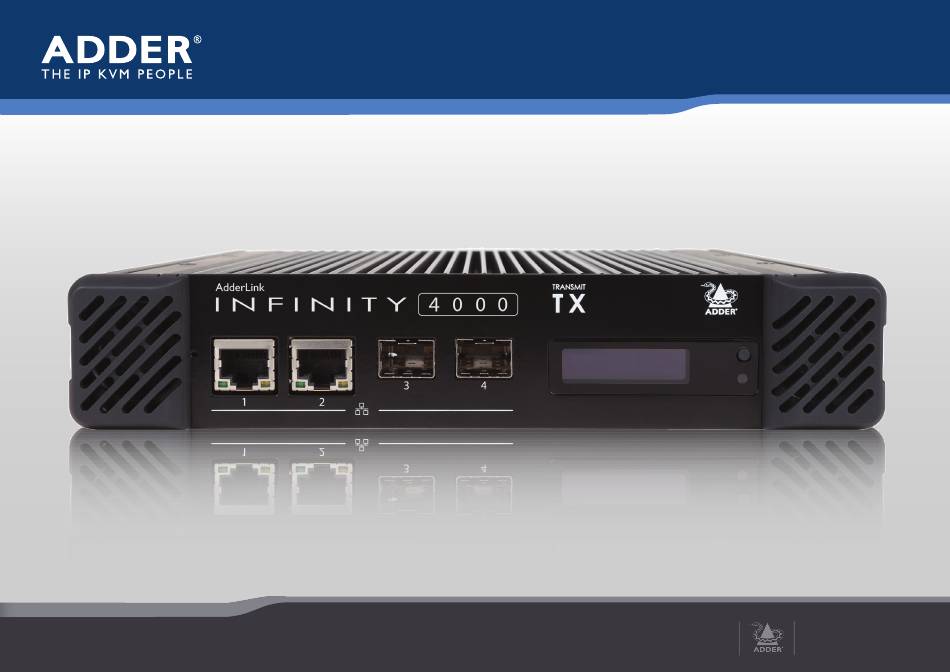

  • Page 1 ADDERLink INFINITY 4000 ™ User Guide Experts in KVM Extension Connectivity Solutions Solutions...

  • Page 2: Table Of Contents

    Contents Introduction Configuration Welcome ........................2 ALIF4000 configuration via web pages ............15 Linking .......................2 Start of Life: AIM or Point to Point configuration .........15 Technical Specifications .................3 Performing a manual factory reset ..............16 ALIF4000 unit features ..................4 Operation Supplied items .......................5 Front panel indications ..................17 Optional extras .....................6 Further information...

  • Page 3: Welcome

    • Pixel-perfect, color accuracy at 4K60, • Bi-directional analog audio, ALIF4000 TX ALIF4000 RX • Adder’s USB True Emulation for fast switching, • Backwards compatibility with existing ALIF range, Networked linking • Plug and play. Where ALIF4000 units are connected via networked links, you can either configure them...

  • Page 4: Technical Specifications

    Technical Specifications Operating/storage conditions Operating temperature: 0 to 50ºC / 32 to 122ºF 4 ports of USB2.0 with USB True Emulation to support keyboard, mouse and touch. Storage temperature: 0 to 60ºC / 32 to 140ºF 1 additional port provides transparent high speed USB2.0, best suited to mass storage, web cams, headsets and microphones.

  • Page 5: Alif4000 Unit Features

    ALIF4000 UNIT FEATURES The ALIF4000 units are housed within durable, vented enclosures with connectors situated on the front and rear panels. The smart front faces also feature an OLED information screen with control button (to scroll through the various informational pages) and also a status indicator. Transmitter - front Receiver - front AdderLink...

  • Page 6: Supplied Items

    SUPPLIED ITEMS ALIF4000 TX package Power adapter with locking connector and country-specific power cord d e rL in k 2x Display port video cable 2m ALIF4000 TX unit Information wallet containing: 2x Audio cable 2m 2x USB cable 2m (type A to B) (3.5mm stereo jacks) Part number: VSC24 Four self-adhesive rubber feet Quick start guide Safety document ALIF4000 RX package Power adapter with locking connector and country-specific power cord d e rL in k Information wallet containing:...

  • Page 7: Optional Extras

    OPTIONAL EXTRAS 10GbE single mode fiber SFP module Part number: SFP-SM-LC-10G Please refer to the table in Appendix F Rack mount blanking plate information about fiber modules and cables. Part number: RMK12-BP 10GbE multi mode fiber SFP module Part number: SFP-MM-LC-10G Dual unit 19” (1U) rack-mount shelf Part number: RMK12 Display port video cable 2m Part number: VSCD10A USB cable 2m (type A to B) Part number: VSC24 Replacement power adapter with locking connector Part number: PSU-IEC-12VDC-5A Country-specific power cords...

  • Page 8: Installation

    Installation CONNECTIONS MOUNTING Installation involves linking the ALIF4000 TX unit to various ports on the host computer, Please see Appendix G for details about mounting options for the ALIF units. while the ALIF4000 RX unit is attached to your peripherals (collectively known as the IMPORTANT: When mounting the ALIF units (and their power adapters), Console: ensure that the vents are not obscured and that there is sufficient airflow.

  • Page 9: Tx Video Links

    TX video links TX audio links VIDEO VIDEO The TX unit supports two display port LINK The TX unit supports two way stereo LINK AUDIO AUDIO connections, each up to 4K UHD (3840 x digital sound so that you can use a remote LINKS LINKS 2160) or DCI (4096 x2160), with refresh microphone as well as speakers.

  • Page 10: Tx Usb Links

    TX USB links TX AUX (serial) port VIDEO VIDEO The TX unit has two USB type B sockets on LINK The AUX port is an RS232 serial port LINK AUDIO AUDIO the rear panel. that allows extension of RS232 signals up LINKS LINKS to a baud rate of 115200. The port has software flow control, but no hardware ALIF4000 TX LINK...

  • Page 11: Tx Power In

    TX power in VIDEO Each unit is supplied with a power LINK AUDIO adapter and country-specific power LINKS cord. The supplied power adapter uses a locking-type plug to help prevent ALIF4000 TX LINK LINK accidental disconnection; please follow the instructions shown on the right SERIAL ALIF4000 RX when disconnecting a power adapter.

  • Page 12: Tx/Rx High Speed Links

    TX/RX high speed links VIDEO VIDEO ALIF4000 units can be either connected directly to each other or via a high speed LINK DISPLAY AUDIO (10GB) network. Currently, the connections must be Fiber Channel over Ethernet LINKS MIC & (FCoE). A single fiber link (using SFP port 3) is sufficient to provide full 4K operation SPEAKERS between ALIF4000 units.

  • Page 13: Rx Video Display

    RX video display RX microphone & speakers VIDEO VIDEO DISPLAY The RX unit supports two video The RX unit can support a DISPLAY displays, each up to 4K UHD (3840 ALIF4000 TX microphone as well as speakers ALIF4000 TX MIC & MIC & x 2160) or DCI (4096 x2160), with providing the necessary connections SPEAKERS SPEAKERS...

  • Page 14: Rx Usb Devices

    RX USB devices VIDEO DISPLAY The ALIF RX unit has five USB ports (three on the front panel and two on ALIF4000 TX MIC & the rear) to which peripherals may be SPEAKERS connected. LINK ALIF4000 RX Note: USB socket 1 on the front panel is transparent high speed USB2.0 port and DEVICES is very useful for mass storage, web cams,...

  • Page 15: Rx Power In

    RX power in VIDEO Each unit is supplied with a power DISPLAY adapter and country-specific power ALIF4000 TX MIC & cord. The supplied power adapter uses SPEAKERS a locking-type plug to help prevent LINK ALIF4000 RX accidental disconnection; please follow the instructions shown on the right DEVICES when disconnecting a power adapter.

  • Page 16: Configuration

    Configuration ALIF4000 CONFIGURATION VIA WEB PAGES Start of Life: AIM or Point to Point configuration Each ALIF4000 unit hosts its own internal set of web pages which contain all To streamline initial configuration processes, all ALIF4000 units employ a Start of Life configuration details and settings (see also Start of Life, shown right). You will need to use (SoL) procedure when they are in an unconfigured state;...

  • Page 17: Performing A Manual Factory Reset

    PERFORMING A MANUAL FACTORY RESET A factory reset returns ALIF4000 unit to its default configuration. To perform a manual factory reset 1 Power on the ALIF4000 unit. 2 Use a long narrow implement (e.g. a straightened-out paper clip) to press-and-hold the recessed reset button on the front panel for roughly ten seconds, until the d e r L i n status indicator turns blue (Note:...

  • Page 18: Operation

    Operation In operation, many ALIF4000 installations require no intervention once configured. The TX and RX units take care of all connection control behind the scenes so that you can continue to work unhindered. FRONT PANEL INDICATIONS The front panel of each ALIF4000 unit features an OLED information screen plus a single indicator capable of producing numerous color and flash patterns to provide a useful guide to operation.

  • Page 19: Further Information

    If you are still experiencing problems after checking the information contained within this • Getting assistance - see right guide, then please refer to the Support section of our website: • Appendix A - Configuration pages www.adder.com • Appendix B - Tips for success when networking ALIF units • Appendix C - Troubleshooting •...

  • Page 20: Appendix A - Configuration Pages

    APPENDIX A - Configuration pages This section covers the web page configuration for the ALIF4000 units: • RX - General Information • TX - General Information • RX - UI Settings • TX - UI Settings • RX - Presets • TX - Ports •...
  • Page 21 RX - General Information To get here You can access this page in two ways: 1 On the console keyboard attached to the RX unit, access the OSD by pressing CTRL + ALT + C. 2 If necessary, click the General Information link. 1 Connect a computer to the same network as the RX unit. 2 Run a web browser and enter the IP address of the RX unit: http://169.254.1.32 (this is the default address when using SFP port 3).
  • Page 22 RX - UI Settings To get here You can access this page in two ways: 1 On the console keyboard attached to the RX unit, access the OSD by pressing CTRL + ALT + C. 2 Click the UI Settings link. 1 Connect a computer to the same network as the RX unit. 2 Run a web browser and enter the IP address of the RX unit: http://169.254.1.32 (this is the default address when using SFP port 3).
  • Page 23 RX - Presets To get here You can access this page in two ways: 1 On the console keyboard attached to the RX unit, access the OSD by pressing CTRL + ALT + C. 2 Click the Presets link. 1 Connect a computer to the same network as the RX unit. 2 Run a web browser and enter the IP address of the RX unit: http://169.254.1.32 (this is the default address when using SFP port 3).
  • Page 24 RX - Ports To get here You can access this page in two ways: 1 On the console keyboard attached to the RX unit, access the OSD by pressing CTRL + ALT + C. 2 Click the Ports link. 1 Connect a computer to the same network as the RX unit. 2 Run a web browser and enter the IP address of the RX unit: http://169.254.1.32 (this is the default address when using SFP port 3).
  • Page 25 RX - Network To get here You can access this page in two ways: 1 On the console keyboard attached to the RX unit, access the OSD by pressing CTRL + ALT + C. 2 Click the Network link. 1 Connect a computer to the same network as the RX unit. 2 Run a web browser and enter the IP address of the RX unit: http://169.254.1.32 (this is the default address when using SFP port 3).
  • Page 26 RX - Transmitters To get here You can access this page in two ways: 1 On the console keyboard attached to the RX unit, access the OSD by pressing CTRL + ALT + C. 2 Click the Network link. 1 Connect a computer to the same network as the RX unit. 2 Run a web browser and enter the IP address of the RX unit: http://169.254.1.32 (this is the default address when using SFP port 3).
  • Page 27 (since the connection was established or last changed). Remote Support - When using the Adder remote server, this option Expected Packets - The total number of packets that were expected determines which port will be used. Multiple options are offered in case to be received on the video port (since the connection was established one or more ports are blocked by your firewall.
  • Page 28 RX - System To get here You can access this page in two ways: 1 On the console keyboard attached to the RX unit, access the OSD by pressing CTRL + ALT + C. 2 Click the System link. 1 Connect a computer to the same network as the RX unit. 2 Run a web browser and enter the IP address of the RX unit: http://169.254.1.32 (this is the default address when using SFP port 3).
  • Page 29 TX - General Information To get here You can access this page in two ways: 1 On the console keyboard attached to the RX unit, access the OSD by pressing CTRL + ALT + C. 2 Click on the Transmitters option. 3 If necessary, click the General Information link. 1 Connect a computer to the same network as the TX unit.
  • Page 30 TX - UI Settings To get here You can access this page in two ways: 1 On the console keyboard attached to the RX unit, access the OSD by pressing CTRL + ALT + C. 2 Click on the Transmitters option. 3 Click the UI Settings link. 1 Connect a computer to the same network as the TX unit. 2 Run a web browser and enter the IP address of the TX unit: http://169.254.1.33 (this is the default address when using SFP port 3).
  • Page 31 TX - Ports To get here You can access this page in two ways: 1 On the console keyboard attached to the RX unit, access the OSD by pressing CTRL + ALT + C. 2 Click on the Transmitters option. 3 Click the Ports link. 1 Connect a computer to the same network as the TX unit. 2 Run a web browser and enter the IP address of the TX unit: http://169.254.1.33 (this is the default address when using SFP port 3).
  • Page 32 TX - Network To get here You can access this page in two ways: 1 On the console keyboard attached to the RX unit, access the OSD by pressing CTRL + ALT + C. 2 Click on the Transmitters option. 3 Click the Network link. 1 Connect a computer to the same network as the TX unit. 2 Run a web browser and enter the IP address of the TX unit: http://169.254.1.33 (this is the default address when using SFP port 3).
  • Page 33 Click an item Packets Transmitted - The breakdown of packets transmitted for each Remote Support - When using the Adder remote server, this option to tick and include it. video stream on each video port.
  • Page 34 TX - System To get here You can access this page in two ways: 1 On the console keyboard attached to the RX unit, access the OSD by pressing CTRL + ALT + C. 2 Click on the Transmitters option. 3 Click the System link. 1 Connect a computer to the same network as the TX unit. 2 Run a web browser and enter the IP address of the TX unit: http://169.254.1.33 (this is the default address when using SFP port 3).

  • Page 35: Appendix B - Tips For Success When Networking Alif Units

    APPENDIX B - Tips for success when networking ALIF units Creating an efficient network layout ALIF units use multiple strategies to minimize the amount of data that they send across networks. However, data overheads can be quite high, particularly when very Network layout is vital. The use of IGMP snooping also introduces certain constraints, so high resolution video is being transferred, so it is important to take steps to maximize take heed: network efficiency and help minimize data output.
  • Page 36 Configuring the switches and devices The layout is vital but so too is the configuration: • Enable IGMP Snooping on all L2 switches. • Ensure that IGMP Fast-Leave is enabled on all switches with ALIF units connected directly to them. • Enable the L3 switch as an IGMP Querier.

  • Page 37: Appendix C - Troubleshooting

    APPENDIX C - Troubleshooting Problem: The video image of the ALIF receiver shows horizontal lines across Remedies: the screen. • Ensure that IGMP snooping is enabled on all switches within the subnet. This issue is known as Blinding because the resulting video image looks as though you’re • Where each ALIF unit is connected as the sole device on a port connection to viewing it through a venetian blind.
  • Page 38 Problem: The audio output of the ALIF receiver sounds like a scratched re- cord. This issue is called Audio crackle and is a symptom of the same problem that produces blinding (see previous page). The issue is related to missing data packets. Remedies: As per blinding discussed previously. Problem: AIM cannot locate working ALIF units. There are a few possible causes: •...

  • Page 39: Appendix D - Glossary

    APPENDIX D - Glossary Internet Group Management Protocol IGMP Snooping Jumbo frames (Jumbo packets) Where an ALIF transmitter is required to stream video to The IGMP messages are effective but only operate at Since its commercial introduction in 1980, the Ethernet two or more receivers, multicasting is the method used. layer 2 - intended for routers to determine whether standard has been successfully extended and adapted to...
  • Page 40 Spanning Tree Protocol (STP) Forwarding modes Layer 2 and Layer 3: The OSI model In order to build a robust network, it is necessary In essence, the job of a layer 2 switch is to transfer as When discussing network switches, the terms Layer 2 and to include certain levels of redundancy within the fast as possible, data packets arriving at one port out to Layer 3 are very often used.
  • Page 41 In simplified terms, the wrapper that is added at Layer 2 (by the sending system) includes the physical address of the intended recipient system, i.e. the unique MAC address (for example, 09:f8:33:d7:66:12) that is assigned to every networking device at manufacture. Deciphering recipients at this level is more straightforward than at Layer 3, where the address of the recipient is represented by a logical IP address (e.g.

  • Page 42: Appendix E - Null Modem Cable Pinout

    APPENDIX E - Null modem cable pinout RS232 ‘null-modem’ cable pin-out 9pin D-type 9pin D-type female female...

  • Page 43: Appendix F - Fiber Modules And Cables

    To suit your installation layout, fiber modules are available for the ALIF4000 units to support various fiber optic cables. The specifications for all are summarized in this table: Fiber name Fiber size Fiber type Coding Distance Adder part number for SFP Normal Suggested print 10Gbps module applications nomenclature (62.5/125)

  • Page 44: Appendix G - Using The Optional Alif4000 Rack Shelf

    APPENDIX G - Using the optional ALIF4000 rack shelf 1 Install the empty ALIF4000 rack mount tray into your 19” rack frame and fully IMPORTANT: When mounting the ALIF units (and their secure it. power adapters), ensure that the vents are not obscured 2 Place an ALIF4000 unit into each side of the rack mount tray so that their rear and that there is sufficient airflow. The operating panels butt up against the small pegs located on each of the side walls. temperature range is 0 to 40ºC (0 to 104ºF) and must not be exceeded. Each power adapter is rated at a 3 Locate the supplied thumbscrew and spacer.

  • Page 45: Appendix H - Open Source Licenses

    APPENDIX H - OPEN SOURCE LICENSES This product includes binaries that are derived from the open source community. The modules listed below are licenced under the GNU Lesser This product includes binaries that are derived from the open source General Public License v3 and must be provided, in source form, on community.
  • Page 46 # 950 Charter Street (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE # Redwood City, CA 94063 USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH # <info@isc.org> DAMAGE. # https://www.isc.org/ The Institute of Electrical and Electronics Engineers and the American ---------------------------------------------------------------------------- National Standards Committee X3, on Information Processing Systems have given us permission to reprint portions of their documentation.
  • Page 47 See below for the actual license texts. * ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, * SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT OpenSSL License * NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; --------------- * LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) * HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN /* ============================================================ CONTRACT,...
  • Page 48 * are met: Redistribution and use in source and binary forms, with or without * 1. Redistributions of source code must retain the copyright modification, are permitted provided that the following conditions notice, this list of conditions and the following disclaimer. are met: * 2.
  • Page 49 The above copyright notice and this permission notice shall be included in ---------------------------------------------------------------------------- all copies or substantial portions of the Software. - Module: libdrm THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF ---------------------------------------------------------------------------- MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.
  • Page 50 Copyright (c) 2000-2003 Intel Corporation * Redistributions in binary form must reproduce the above All rights reserved. copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided Redistribution and use in source and binary forms, with or without with the distribution.
  • Page 51 DISCLAIMER * Redistributions in binary form must reproduce the above copyright This software is provided ‘as is’ with no explicit or implied warranties notice, this list of conditions and the following disclaimer in the in respect of its properties, including, but not limited to, correctness documentation and/or other materials provided with the and/or fitness for purpose.
  • Page 52 * 3. The name of the author may not be used to endorse or promote THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, products derived from this software without specific prior EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF written permission.
  • Page 53 License for Open Source Software Implementations of OCB 2 License Grant January 9, 2013 2.1 License. Subject to your compliance with the term s of this license, 1 Definitions including the restriction set forth in Section 2.2, Licensor hereby grants to you a perpetual, worldwide, non-exclusive, non-transferable, 1.1 “Licensor”...
  • Page 54 to use, copy, modify, merge, publish, distribute, sublicense, and/or sell ---------------------------------------------------------------------------- copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions: - Module: libevdev The above copyright notice and this permission notice shall be included in ---------------------------------------------------------------------------- all copies or substantial portions of the Software.
  • Page 55 Copyright © 2006-2009 Simon Thum Copyright (c) 1995, 1996 Michael Elizabeth Chastain <mec@duracef.shout.net> Copyright © 2008-2012 Kristian Høgsberg Copyright (c) 1993, 1994, 1995, 1996 Rick Sladkey <jrs@world.std.com> Copyright © 2010-2012 Intel Corporation Copyright (c) 1998-2001 Wichert Akkerman <wakkerma@deephackmode.org> Copyright © 2010-2011 Benjamin Franzke Copyright (c) 2001-2017 The strace developers.
  • Page 56 3. The names of the authors may not be used to endorse or promote products derived from this software without specific prior written permission. ---------------------------------------------------------------------------- THIS SOFTWARE IS PROVIDED ``AS IS’’ AND WITHOUT ANY EXPRESS OR - Module: ntp IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR ---------------------------------------------------------------------------- PURPOSE.
  • Page 57 * 1. Redistributions of source code must retain the above copyright * 14. [15]Casey Crellin <casey@csc.co.za> vxWorks (Tornado) port and notice, this list of conditions and the following disclaimer. * help with target configuration * 2. Redistributions in binary form must reproduce the above 15.
  • Page 58 - Module: libxkbcommon 41. [44]Kamal A Mostafa <kamal@whence.com> SCO OpenServer port 42. [45]Derek Mulcahy <derek@toybox.demon.co.uk> and [46]Damon ---------------------------------------------------------------------------- Hart-Davis <d@hd.org> ARCRON MSF clock driver 43. [47]Rob Neal <neal@ntp.org> Bancomm refclock and config/parse code ------------------------------------------------------------------------------- maintenance 44. [48]Rainer Pruy <Rainer.Pruy@informatik.uni-erlangen.de> Copyright © 2009-2012, 2016 Daniel Stone monitoring/trap scripts, statistics file handling Copyright ©...
  • Page 59 all copies or substantial portions of the Software. Permission to use, copy, modify, and distribute this software and its THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS OR documentation for any purpose and without fee is hereby granted, IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, provided that the above copyright notice appear in all copies and that FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.
  • Page 60 Copyright 1996 by Joseph Moss Copyright (C) 2002-2007 Free Software Foundation, Inc. Except as contained in this notice, the name of the Digital Equipment Copyright (C) Dmitry Golubev <lastguru@mail.ru>, 2003-2004 Corporation shall not be used in advertising or otherwise to promote Copyright (C) 2004, Gregory Mokhin <mokhin@bog.msu.ru>...
  • Page 61 THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, EXPRESS THE SOFTWARE IS PROVIDED “AS IS”, WITHOUT WARRANTY OF ANY KIND, OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.
  • Page 62 or other dealings in this Software without prior written authorization Permission is granted to anyone to use, distribute and modify of the copyright holder. this file in any way, provided that the above copyright notice is left intact and the author of the modification summarizes All trademarks and registered trademarks mentioned herein are the property of their respective owners.
  • Page 63 CONSEQUENTIAL DAMAGES, OR ANY DAMAGES WHATSOEVER RESULTING FROM # SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT, # BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN # LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING CONNECTION WITH THE USE OR PERFORMANCE OF THE DATA FILES OR...
  • Page 64 # * FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE # * REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, # Copyright 1996 Chih-Hao Tsai @ Beckman Institute, # * INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES University of Illinois # * (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR # c-tsai4@uiuc.edu http://casper.beckman.uiuc.edu/~c-tsai4...
  • Page 65 # to users as so produced on an experimental basis. Accordingly, the # Project: http://code.google.com/p/lao-dictionary/ # program is provided without any warranty whatsoever, whether express, # Dictionary: http://lao-dictionary.googlecode.com/git/Lao-Dictionary.txt # implied, statutory or otherwise. The term “warranty” used herein # License: http://lao-dictionary.googlecode.com/git/Lao-Dictionary-LICENSE.txt # includes, but is not limited to, any warranty of the quality, (copied below) # performance, merchantability and fitness for a particular purpose of...
  • Page 66 # -------------------------------------------------------------------------- public domain. Therefore, BCPs 78 [RFC5378] and 79 [RFC3979] do # Copyright (c) 2013, LeRoy Benjamin Sharon not apply to the TZ Database or contributions that individuals make # All rights reserved. to it. Should any claims be made and substantiated against the TZ Database, the organization that is providing the IANA # Redistribution and use in source and binary forms, with or without Considerations defined in this RFC, under the memorandum of...
  • Page 67 LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, obtaining a copy of this software and associated documentation files OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS (the “Software”), to deal in the Software without restriction, IN THE SOFTWARE.
  • Page 68 FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OF THIRD PARTY RIGHTS. IN * SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, * LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DAMAGES OR OTHER LIABILITY , WHETHER IN AN ACTION OF CONTRACT , TORT OR * DATA, OR PROFITS;...
  • Page 69 To protect your rights, we need to make restrictions that forbid Activities other than copying, distribution and modification are not anyone to deny you these rights or to ask you to surrender the rights. covered by this License; they are outside its scope. The act of These restrictions translate to certain responsibilities for you if you running the Program is not restricted, and the output from the Program distribute copies of the software, or if you modify it.
  • Page 70 and can be reasonably considered independent and separate works in special exception, the source code distributed need not include themselves, then this License, and its terms, do not apply to those anything that is normally distributed (in either source or binary sections when you distribute them as separate works.
  • Page 71 may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by 10. If you wish to incorporate parts of the Program into other free all those who receive copies directly or indirectly through you, then programs whose distribution conditions are different, write to the author the only way you could satisfy both it and this License would be to to ask for permission.
  • Page 72 <one line to give the program’s name and a brief idea of what it does.> consider it more useful to permit linking proprietary applications with the Copyright (C) <year> <name of author> library. If this is what you want to do, use the GNU Lesser General Public License instead of this License.
  • Page 73 Public License permits more lax criteria for linking other code with To protect your rights, we need to make restrictions that forbid the library. distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for We call this license the “Lesser”...
  • Page 74 a) The modified work must itself be a software library. A “library” means a collection of software functions and/or data prepared so as to be conveniently linked with application programs b) You must cause the files modified to carry prominent notices (which use some of those functions and data) to form executables.
  • Page 75 3. You may opt to apply the terms of the ordinary GNU General Public Whether this is true is especially significant if the work can be License instead of this License to a given copy of the Library. To do linked without the Library, or if the work is itself a library.
  • Page 76 Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user’s computer system, b) Give prominent notice with the combined library of the fact rather than copying library functions into the executable, and (2) that part of it is a work based on the Library, and explaining will operate properly with a modified version of the library, if where to find the accompanying uncombined form of the same work.
  • Page 77 particular circumstance, the balance of the section is intended to apply, of all derivatives of our free software and of promoting the sharing and the section as a whole is intended to apply in other circumstances. and reuse of software generally. It is not the purpose of this section to induce you to infringe any NO WARRANTY patents or other property right claims or to contest validity of any...
  • Page 78 This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public 0. Additional Definitions. License as published by the Free Software Foundation; either version 2.1 of the License, or (at your option) any later version. As used herein, “this License”...
  • Page 79 ensure that, in the event an Application does not supply the function or data, the facility still operates, and performs 0) Convey the Minimal Corresponding Source under the terms of this whatever part of its purpose remains meaningful, or License, and the Corresponding Application Code in a form suitable for, and under terms that permit, the user to b) under the GNU GPL, with none of the additional permissions of recombine or relink the Application with a modified version of...
  • Page 80 6. Revised Versions of the GNU Lesser General Public License. The Free Software Foundation may publish revised and/or new versions of the GNU Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.
  • Page 81 © 2020 Adder Technology Limited All trademarks are acknowledged. www.ctxd.com Documentation by: Part No. MAN-ALIF4000-ADDER • Release 2.1...

  • Page 82: Index

    Index Adaptive 39 Fast-Leave 38 Network address 15 Snooping 38 AIM mode 15 Fibre Channel 11 Network layout 34 SoL 15 Forwarding modes 39 Network switch Spanning Tree Protocol 39 Fragment-free 39 choosing 34 Start of Life 15 Cable Front panel 4 Null-modem cable Store and forward 39 null-modem 41...
