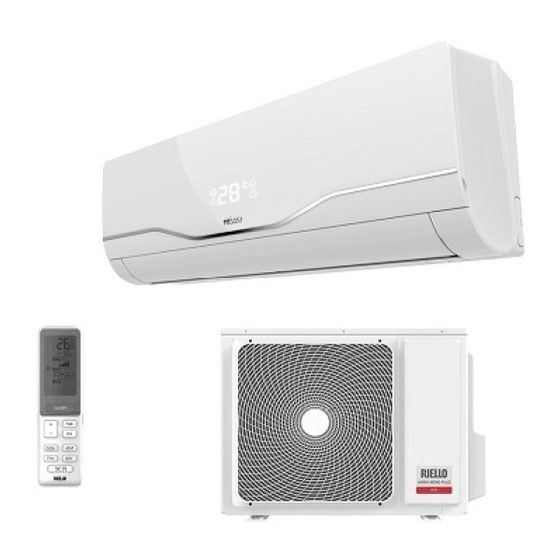

- Page 1 TIMER POWER Remote control AMW P - AMW ST - AMK P USER INSTRUCTIONS...
- Page 2 Thank you for choosing a R product, an innovative and high quality appliance that guarantees wellbeing for a long time. This manual contains information we deem necessary for correct and easy use. Thanks again. RIELLO COMPLIANCE R AMW P - AMW ST - AMK P heat pumps are compliant with the following European Directives: —...
-
Page 3: Table Of Contents
AMW P - AMW ST - AMK P TAbLE OF CONTENTS GENERAL INFORMATION Temporary shutdown......p. 20 . -
Page 4: General Information
GENERAl INfoRMATIoN GENERAL INFORMATION This unit contains fluorinated greenhouse gases covered General Notices by the Kyoto protocol. Maintenance and disposal activities must be carried out exclusively by skilled personnel. R32 refrigerant gas is slightly flammable and odourless. When you get the product, check immediately that the con- tents are all present and undamaged. -
Page 5: Amw P
Power supply 1PH,230V~,50HZ of the outdoor unit and regulate the room temperature Anti-electric shock Class RIELLO Spa - Via Ing. Pilade Riello, 7 Net Weight 10.0 kg 37045 LEGNAGO (VR) - Italy Air volume XXX m ³ /h... -
Page 6: Unit Display
Power supply 1PH,230V~,50Hz of the outdoor unit and regulate the room temperature Anti-electric shock Class Riello S.p.A- Via Ing. Pilade Riello, 7 Net Weight 8.8 kg 37045 LEGNAGO (VR) - Italy Air volume 500 m³/h... -
Page 7: Layout
GENERAl INfoRMATIoN layout TIMER POWER Air intake Air filter Metal cabinet Electric panel cover Air outlet Motor-driven deflectors Front panel Remote control Unit display 1. Detected ambient temperature The unit display shows the temperature and the alarms, if any. 2. Required temperature when using the button 3. -
Page 8: Amk P
Identification The unit can be identified through the technical data plate: Power supply 1PH,230V~,50HZ Anti-electric shock Class RIELLO Spa - Via Ing. Pilade Riello, 7 Net Weight XX. X kg 37045 LEGNAGO (VR) - Italy Air volume XXX m ³/h... -
Page 9: Layout
GENERAl INfoRMATIoN layout TIMER POWER Support bracket Motor-driven deflectors Electric panel cover Display Refrigerant connections Air intake grille Fresh air hole Condensation discharge 10 Remote control Unit display The unit display shows the active functioning mode, the tem- perature and the alarms, if any. Timer on Temperature indication, alarm code Display... -
Page 10: Remote Control
GENERAl INfoRMATIoN Remote control DooR oPEN Control, setting and programming operations are carried out with the IR remote control. The electronics modulates the device operation according to the temperatures detected by the probes inside the indoor and out- door units. function keys TIMER The remote control features a small door in the key area:... -
Page 11: Remote Control Display
GENERAl INfoRMATIoN Remote control display Timer settings The remote control display shows the settings as changed by the Timer setting value or current time display user and the detected weather conditions. The backlit display is divided in areas according to function type. Switch on timer enabled Switch off timer enabled Motor-driven deflector settings... -
Page 12: Use
Initial settings The remote control was designed to ensure user-friendliness even with no special programming. To activate, just install batteries and set current time. Battery insertion The remote control is powered by two AAA batteries (1.5 V) housed at the back, under a cover. Should you notice a poorer reception or if display information fades out, the batteries must be changed. -
Page 13: Start-Up
Start-up such as choosing the operating mode and setting the desired temperature. To switch on: Ensure that the door is fully closed. If this is not the case, the external keys will not work. Cooling mode The Cooling mode allows starting and use of the air condition- er as a producer of cold and dehumidified air. -
Page 14: Dehumidification Mode
• Activation — press appears on the display of the remote control and the unit. Set required temperature as follows: — work on Value is stored with no need to press other buttons. • Switch-off — select another operating mode Alternatively: —... -
Page 15: Quiet Function
• Activation POWER — press Remote control display shows • Switch-off — select another operating mode Minimum speed Alternatively: Medium speed Maximum speed — press to deactivate Automatic speed Use with open flap — work on When the door is open, you can access the advanced functions, —... -
Page 16: Vertical Motorised Deflector
Cooling and Dehumidification mode Initial position Heating Mode Smart mode — work on Initial position — select required position Each press will select a different position. — work on is selected, the position automatically changes accord- — select required position ing to predefined logics from the program. -
Page 17: Health Air Flow Function
flector so as to avoid aiming the air flow directly at persons. + 1 °C + 1 °C Sleep function on Sleep function end and unit switch-off Set temperature • Activation h Hours passed since function activation — press — increasing it in Cooling and Dehumidification mode Remote control display shows This setting is recommended for Cooling mode. -
Page 18: Switching Unit Display Off Or On
The display shows the and the temperature value disappears. The equipment will operate at selected ventilation speed. The equipment will operate to keep room temperature at TIMER 10 °C. • Switch-off — press disappears in the display and the temperature value appears. Switching unit display off or on If required, indoor unit display can be turned off or on. -
Page 19: Selecting The Temperature Measurement Unit
Set required time as follows: Factory set channel is A. Select required channel as follows: — work on — work on — Each time the key is pressed, the values changes by 1. by Each press will select a different channel, toggling between A keeping the key pressed down, the value changes faster. -
Page 20: Temporary Shutdown
press The unit display turns off. The horizontal motorised deflector closes. The settings are memorized by the remote control and are activated each time is pressed. Turn unit off exclusively through the remote control. Stop for an extended period of time If the device has not been used for an extended period of time, carry out the following operations: —... - Page 21 Mesh filters Mesh filters Air purifying filter — open the front panel — remove exhausted purifying filters — take out the mesh filter by grabbing the relevant fins — insert new purifying filters into the prearranged slots — remove exhausted purifying filters if present —...
-
Page 22: Amk P
AMK P The following checks are part of the monthly maintenance plan: Stubborn dirt can be removed by washing the filter in a luke — cleaning the housing and front panel warm (max. 40 °C) solution of water and neutral detergent. After washing, rinse the filters well and leave to dry in the —... -
Page 23: 2.10 Troubleshooting
2.10 Troubleshooting warm up the air Check that: — the mesh filter is clean Power failure — the purification filters, if installed, are clean If after pressing on the remote control unit display — doors or windows in communication with the outside are does not light up and the appliance does not switch on, check closed that:... -
Page 24: Amk P
To restore operating conditions: — set the main switch to “Off” — allow 10 minutes — reposition the general switch on "on" — press on the remote control If the climate control system resumes normal operation, it means that shutdown was due to an erratic condition. If the fault occurs again, an accurate check of the device compo- nents is required. -
Page 25: Faults Requiring Intervention Of The Technical Support
fault codes for indoor unit Code Display Description Remarks 01.5°C Room probe fault 02.5°C Exchanger probe fault 04.5°C Microprocessor malfunction Communication error between 07.5°C indoor unit and outdoor unit The unit resets after problem Malfunction condensation 0C.5°C resolution drain system Zero cross signal detected 0D.5°C wrong... -
Page 26: Disposal
RECyClING AND DISPoSAl DISPoSAl Packing materials must be disposed of separately, in order to be recovered and recycled. Equipment at end of life and flat bat- teries must be disposed of as required by prevailing law and regulations. - Page 28 RIELLO S.p.A. - 37045 Legnago (VR) tel. +39 0442 630111 - fax +39 0442 630371 www.riello.it As the manufacturer is constantly improving its products, the aesthetic or dimensional features, the technical data, the equipment and accessories indicated could be subject to variations.
