Summary of Contents for Sports Attack SKILL ATTACK VOLLEYBALL PITCHING MACHINE

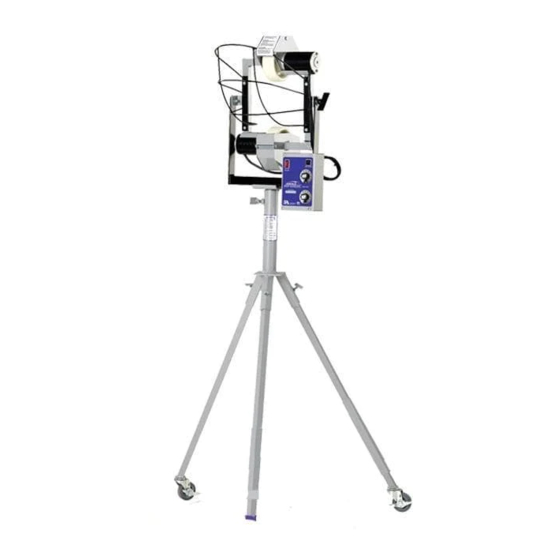

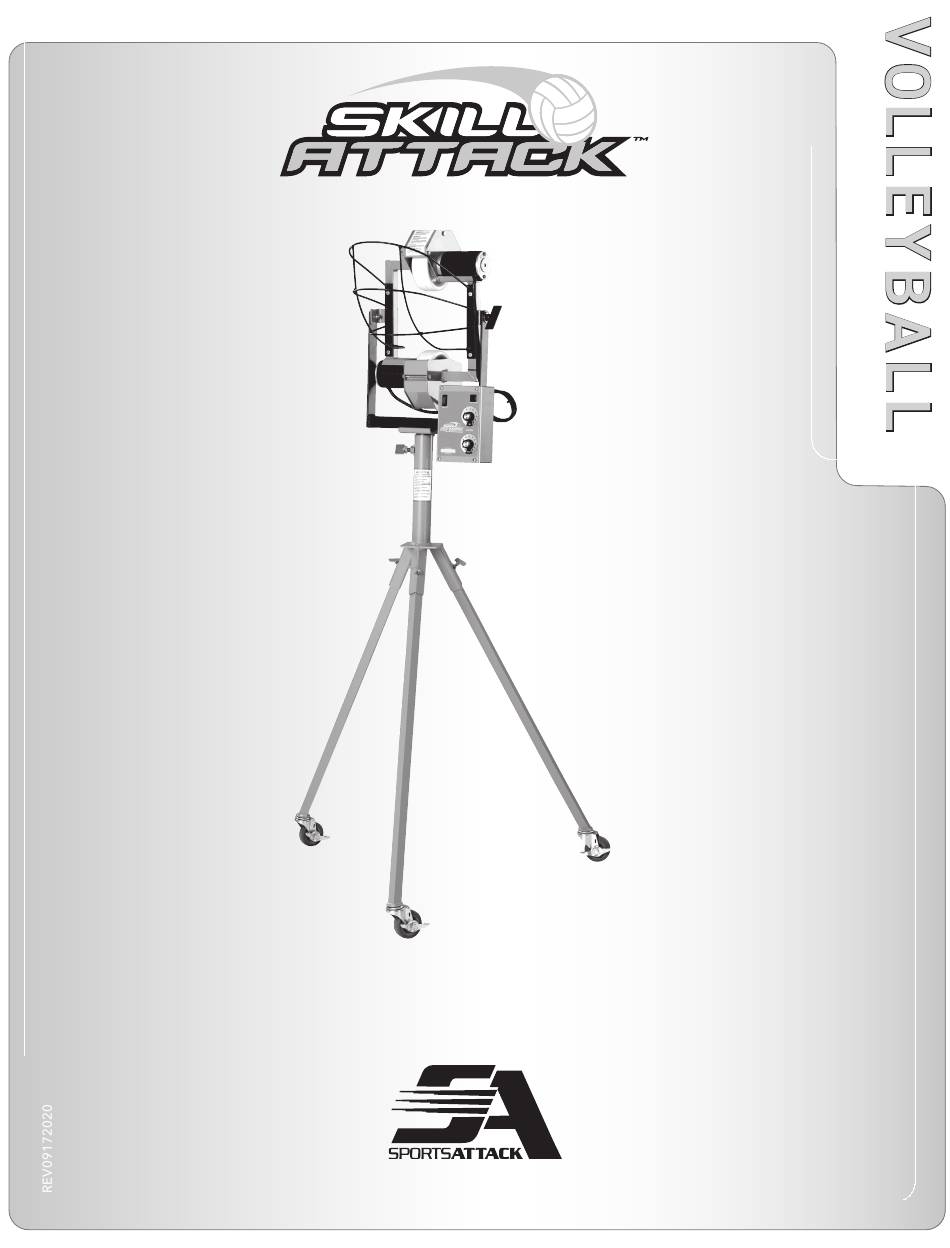

- Page 1 VOLLEYBALL PITCHING MACHINE SKILL ATTACK™ PITCHING MACHINE PATENTS APPLIED FOR INSTRUCTION MANUAL OPERATION · SETUP · USE & CARE · SERVICE SPORTS ATTACK LLC. | 800.717.4251 | www.sportsattack.com...
- Page 2 To return an item, please If a service person is needed, Sports Attack will pay the pre-approved labor charge to get contact our Customer Service your machine back in working order.
-
Page 3: Table Of Contents
RECEIVING THE PRODUCT Please check the contents of your boxes to ensure you have received all parts for the machine. If anything is missing or damaged, call Sports Attack Customer Service, 800-717-4251. If the product or package has been damaged in shipping, note on shipping tag, save all evidence of damage along with related documents and contact the shipper immediately. -
Page 4: Operating Safety Instructions
SAFETY INSTRUCTIONS WARNING PERSONAL INJURY ELECTRICAL SAFETY HAZARD Use a 115 volt single phase 3-wire (2 wire with ground) grounded power source. Carefully read all instructions in this manual, and all labels Up to 200 ft. from power source, use a minimum #14/3 grounded 3-wire 15 amp and warnings on the Skill Attack minimum rating extension cord. before using this machine. Over 200 ft. from power source, consult a licensed electrician for required power cord size. Use machine only under adult supervision. -
Page 5: Assembly Instructions
ASSEMBLY INSTRUCTIONS To order additional parts, please call: Tools required: Wrench for casters (provided. See Figure 2). Sports Attack Customer STEP ONE Service Department Lay out all parts and check them against parts list. Call customer service immediately if any Ph 800.717.4251 parts are missing. Please have applicable part numbers as shown on parts list (See page 10). Fx 775.345.2883 STEP TWO Screw on casters to the end of legs. Tighten with the wrench provided (See Figure 2). STEP THREE Insert the three legs into tripod sockets and tighten handles as shown in A. -
Page 6: Operating Instructions
SKILL ATTACK OPERATION The Skill Attack is the perfect individual training machine. No special training other than the complete careful reading of this manual is required to operate. INCREASE OR DECREASE SPEED 1. Before turning machine “ON,” turn dials located on the throwing head to the “OFF”... -
Page 7: Care & Cleaning
CARE & CLEANING CAUTION PERSONAL INJURY LUBRICATION HAZARD 1. Once per season, or as required. Never attempt to clean the 2. Throwing wheel motors are sealed and require no lubrication. throwing wheels while they are EXAMINE THE MACHINE turning. Rags or implements caught in spinning wheels can Examine Skill Attack for condition and completeness before every use: cause serious injury. -
Page 8: Component Replacement
COMPONENT REPLACEMENT THROWING WHEEL REPLACEMENT 1. Turn the power switch “OFF” and unplug the power cord. 2. Hold the wheel so that it cannot move. Turn the retaining screw counterclockwise using a 1/8” allen wrench. SUGGESTION: If the screw is too tight, give the opposite end of the wrench a series of light taps with a hammer making sure the wrench remains on the screw. - Page 9 COMPONENT REPLACEMENT (cont’d) WIRING POWER CORD CONTROLLER REPLACEMENT White or Blue Wire (1) 1. Turn the on/off switch “OFF” and unplug the power cord. To middle male terminal 2. Remove the four screws holding controller faceplate. Note the position of the main marked “N.”...
-
Page 10: Part List
SKILL ATTACK™ To order additional parts, please call: Sports Attack Customer Service Department Ph 800.717.4251 Fx 775.345.2883 PARTS LIST KEY Wrench , Skill Cater (Not Shown) Locking Caster Leg, Skill Attack Leg Lock Handle 5 Tripod Swivel Plate Horizontal Control Handle Control Knob... - Page 11 SKILL ATTACK PARTS LIST To order additional parts, please call: Sports Attack Customer Service Department PART NO. DESCRIPTION QTY PER Ph 800.717.4251 Fx 775.345.2883 680-7001 Wrench, Skill Caster 281-0006 Locking Caster 532-0017 Leg, Skill Attack 533-4507 Leg Lock Handle 533-4505 Tripod 533-4504...
