Sports Attack STRIKE ATTACK SOCCER MACHINE Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

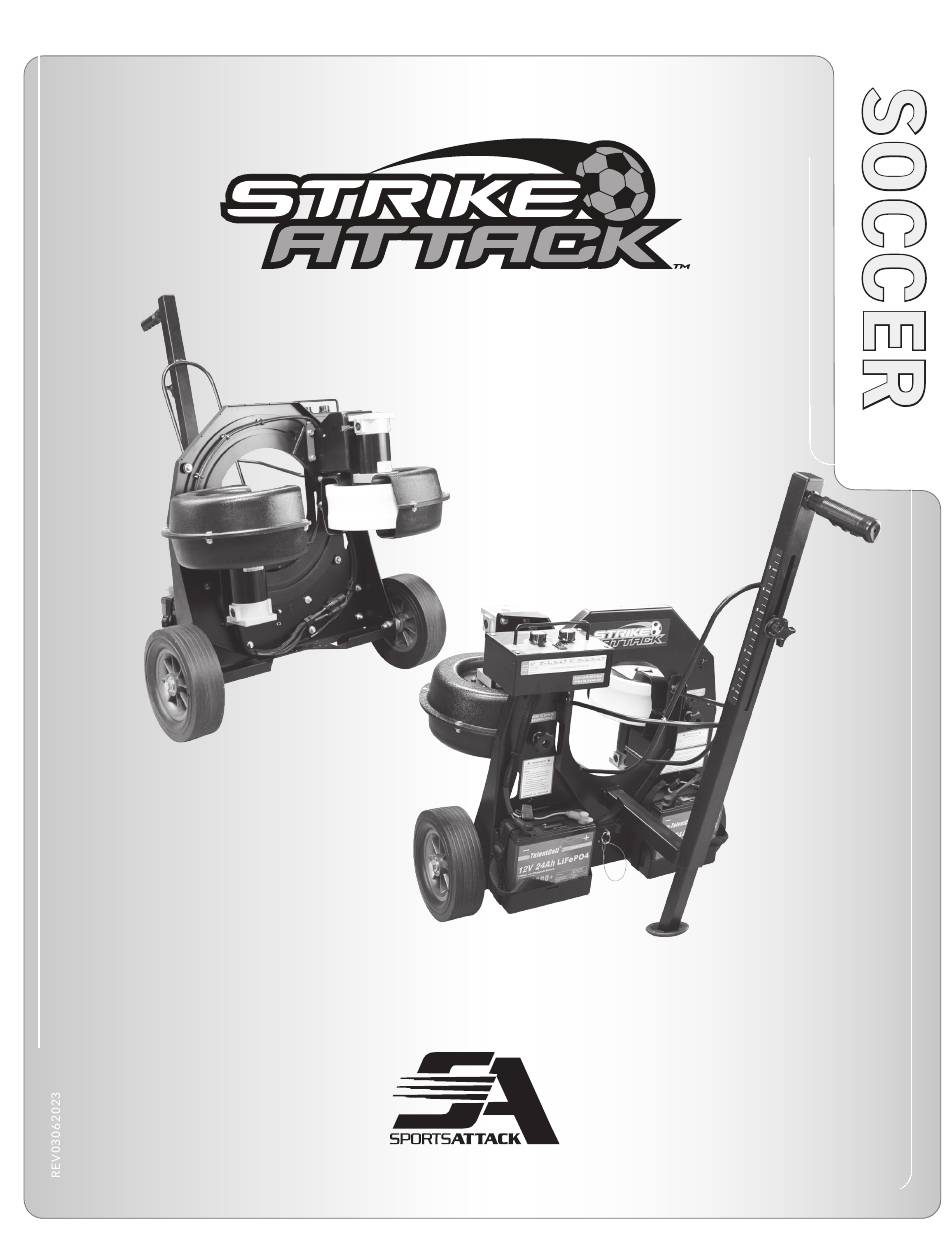

SOCCER MACHINE
STRIKE ATTACK™
SOCCER MACHINE
PATENTS APPLIED FOR
INSTRUCTION MANUAL
OPERATION · SETUP · USE & CARE · SERVICE
SPORTS ATTACK LLC. | 800.717.4251 | www.sportsattack.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STRIKE ATTACK SOCCER MACHINE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sports Attack STRIKE ATTACK SOCCER MACHINE

Summary of Contents for Sports Attack STRIKE ATTACK SOCCER MACHINE

  • Page 1 SOCCER MACHINE STRIKE ATTACK™ SOCCER MACHINE PATENTS APPLIED FOR INSTRUCTION MANUAL OPERATION · SETUP · USE & CARE · SERVICE SPORTS ATTACK LLC. | 800.717.4251 | www.sportsattack.com...
  • Page 2 To return an item, please If a service person is needed, Sports Attack will pay the pre-approved labor charge to get contact our Customer Service your machine back in working order.

  • Page 3: Table Of Contents

    List..............INTRODUCTION Thank you for purchasing this Sports Attack LLC equipment. Proper assembly, careful operation and consistent maintenance of your Strike Attack will ensure that it gives you the very best performance and a long, economical service life.

  • Page 4: Safety Instructions

    WARNING SAFETY INSTRUCTIONS Carefully read all instructions in AC Model - ELECTRICAL SAFETY this manual, and all labels and Use a 115 volt single phase 3-wire grounded power source. warnings on Strike Attack Soccer Machine before using. Up to 200 ft. from power source, use a minimum #14/3 grounded 3-wire extension cord. Use machine only under adult Over 200 ft.

  • Page 5: Component View

    COMPONENT VIEW FRONT ADDITIONAL INFORMATION If you have any questions regarding the safe operation of this equipment, please call: Motors Sports Attack Customer Service: 800.717.4251 or 775.345.2882 • To reorder components, a parts Throwing list and part numbers can be Wheels found on page 11.

  • Page 6: Set-Up & Preparation

    SET-UP & PREPARATION SAFETY HINT When lowering or lifting the SETTING UP THE STRIKE ATTACK (for battery models) Strike Attack, keep your back 1. Remove outer boxing from pallet. straight and lift using your legs. 2. Install Chute/Handle Assembly onto main frame of Strike Attack machine as follows: Place 90 degree tabs on chute/handle over hooks on either side of ball tunnel and WARNING slide bottom of Chute/Handle assembly into retaining slot (see below detail A).
  • Page 7 ADDITIONAL (CONT’D) INFORMATION If you have any questions regarding the safe operation of this equipment, please call: Sports Attack Customer Service: 800.717.4251 or 775-345.2882 • To reorder components, a parts list and part numbers can be found on page 11.

  • Page 8: Generator Information

    Unloosen the knob on the handle/chute this equipment, please call: assembly to adjust high and low. 6. Pitch several more test balls to ensure the Sports Attack Customer Service: selected pitch repeats. 800.717.4251 or 775.345.2882 • To reorder components, a parts list and part numbers can be found on page 11.
  • Page 9 1. Unplug charger from power source. this equipment, please call: 2. Turn both speed control knobs to “0.” Make sure throwing wheels are stopped. Sports Attack Customer Service: 3. Unplug battery connector from throwing head. 800.717.4251 or 775.345.2882 4. Loosen and remove two wing nuts on battery terminal connectors. Remove the two wires on each terminal (1 wire from charger and 1 wire from battery harness).

  • Page 10: Care, Cleaning & Maintenance

    CAUTION CARE, CLEANING & MAINTENANCE LUBRICATION PERSONAL INJURY HAZARD (once per season, or as required): Never attempt to clean the 1. Spin/Angle Control Knob - Apply fresh grease to threads as needed. Throwing Wheels while they 2. Rear Leg Assembly Elevation Knob - Apply fresh grease to threads as needed. are turning.

  • Page 11: Component Replacement

    COMPONENT REPLACEMENT THROWING WHEEL REPLACEMENT 1. Turn both throwing wheel control knobs to “0.” If an AC unit, unplug the power cord. Remove the 4 bolts on the outside wheel guard. 2. Hold the wheel so that it cannot move. Turn the keyway retaining bolt counter-clockwise using a half inch box-end wrench (See Figure 1). Suggestion: If the bolt is too tight, give the opposite end of the wrench a series of light taps with a hammer making sure the wrench remains on the bolt.
  • Page 12 COMPONENT REPLACEMENT (CONT’D) MOTOR REPLACEMENT TOOLS MOTOR REPLACEMENT ” wrench 1. Turn the speed control knobs to “0.” If an AC unit, unplug the power cord. ” wrench 2. Remove outside wheel guard. 3. Remove the throwing wheel (See page 11). 4. Remove inside wheel guard. 5. Unbolt 4 bolts (See Figure 2) and slide motor out. Reassemble with new motor in reverse order.

  • Page 13: Exploded View

    EXPLODED VIEW PARTS LIST 1 Plug, Square, Plastic Part # 6023-1292-11 2 Handle Grip Part # 4023-6476-11 3 Knob, Plastic 3/8-16 Stud Part # 4013-2365-11 4 Washer, Nylon, Black Part # 9113-5781-11 5 Washer, Rubber Part # 9113-6386-11 6 Height Adjustment Leg Part # 6013-2237-11 7 Height Adjustment Foot Part # 4013-9794-11...
