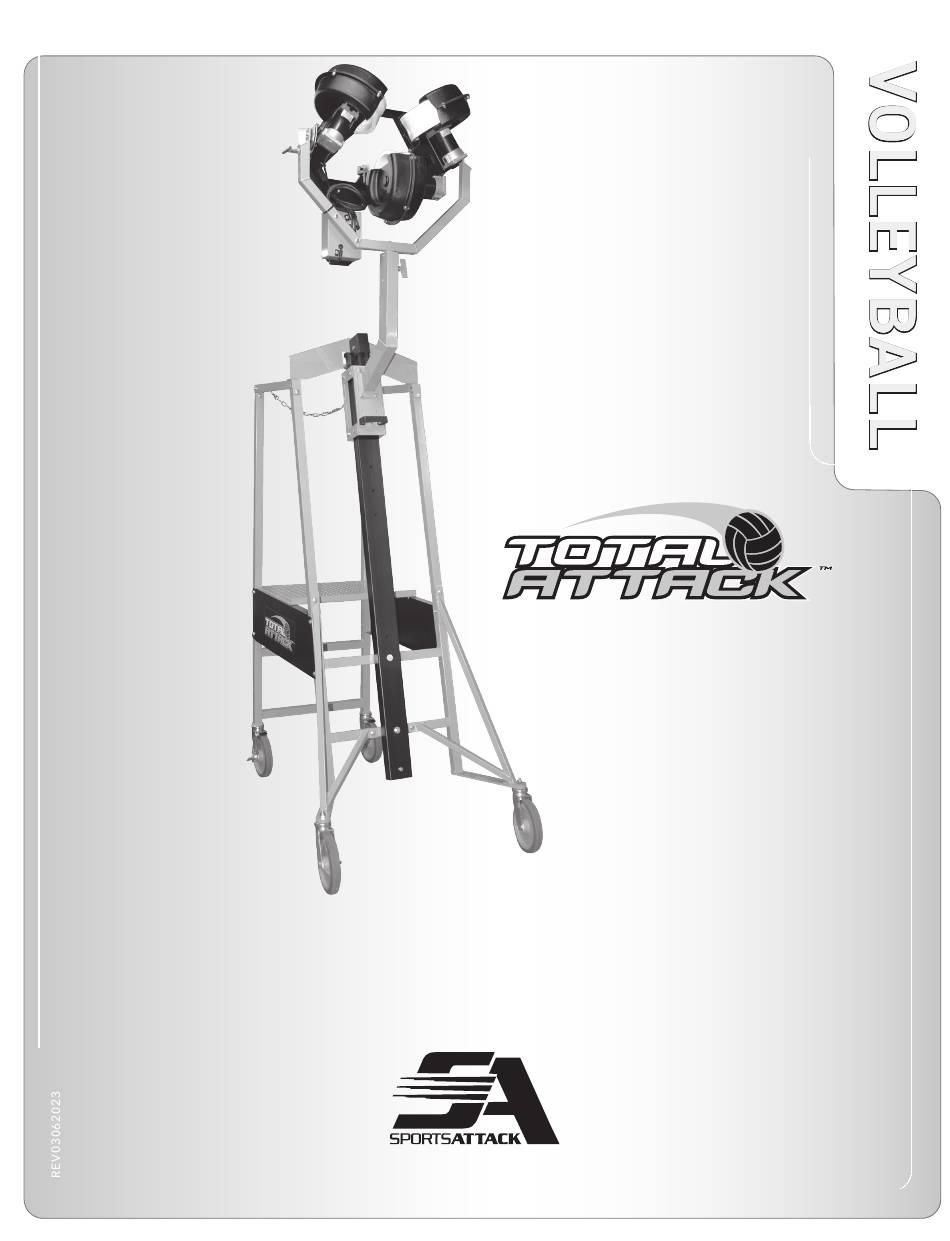

VOLLEYBALL MACHINE
TOTAL ATTACK™ VOLLEYBALL MACHINE
PATENTS APPLIED FOR
INSTRUCTION MANUAL
OPERATION · SETUP · USE & CARE · SERVICE
SPORTS ATTACK LLC. | 800.717.4251 | www.sportsattack.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TOTAL ATTACK VOLLEYBALL MACHINE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sports Attack TOTAL ATTACK VOLLEYBALL MACHINE

  • Page 1 VOLLEYBALL MACHINE TOTAL ATTACK™ VOLLEYBALL MACHINE PATENTS APPLIED FOR INSTRUCTION MANUAL OPERATION · SETUP · USE & CARE · SERVICE SPORTS ATTACK LLC. | 800.717.4251 | www.sportsattack.com...
  • Page 2 To return an item, please If a service person is needed, Sports Attack will pay the pre-approved labor charge to get contact our Customer your machine back in working order.
  • Page 3: Table Of Contents

    Please check the contents of your boxes to ensure you have received all parts for 30 days of receiving product. the machine. If anything is missing or damaged, call Sports Attack Customer Service, 800-717-4251. If the product or package has been damaged in shipping, note on shipping tag, save all evidence of damage along with related documents and contact the shipper immediately.
  • Page 4: Safety Instructions

    OPTION B 208/220/230V ELECTRICAL SHOCK HAZARD Green = Earth Total Attack Volleyball Machine White or Blue = Neutral must be connected to a properly Black or Brown = Line grounded electrical receptacle. • OPERATING SAFETY Do not operate on wet ground.
  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTIONS CAUTION PERSONAL INJURY Tools required: Two ” wrenches and two ” wrenches or two small crescent wrenches. HAZARD DO NOT TIGHTEN BOLTS ALL THE WAY UNTIL YOU COMPLETE ASSEMBLY. Failure to use the special tool STEP 1 provided to install the casters Lay out all parts and check them against the components list on page 4, Hardware kit on could result in personal injury.
  • Page 6 ASSEMBLY COMPONENT PARTS Throwing Head Assembly 1 -Ball Bag Assembly Right-Hand Top Cross Bar Arm Assembly #533-4035 Left-Hand Cross Bar Rear Frame Assembly Mast Assembly Front Frame Assembly Platform Right-hand Side Panel Left-hand Side Panel Left-hand Castor Brace Assembly 2 - Rear Locking Casters Right-hand Castor Brace Assembly 2- Front Non-Locking Casters Castor Wrench...
  • Page 7 IMPORTANT: as you assemble the machine, leave bolts very loose. CAUTION Tighten only after the Total Attack machine is completely assembled. PERSONAL INJURY HAZARD Failure to use the special tool STEP 2 provided to install the casters Lay out rear frame assembly, front frame assembly and right- and left-hand panels. could result in personal injury.
  • Page 8 STEP 3 CAUTION With bolts from Step Two still loose, set platform in place and tighten bolts PERSONAL INJURY securely see below. Now go back and tighten bolts from Step Two assembly. HAZARD Failure to use the special tool provided to install the casters could result in personal injury.
  • Page 9 STEP 5 Bolt arm assembly onto rolling tray as shown below. Again do not tighten bolts until all four are in place. STEP 6 Lay machine on the ground to attach right and left brace tube caster assembly. Bolt right and left brace tube caster assembly as shown below.
  • Page 10 HEAD ASSEMBLY). Assembly is now complete, make sure all nuts and bolts are tightened securely and your Total Attack Volleyball Machine is ready for use. See instructions in the manual and on the decals on the machine for operating procedures and options.
  • Page 11 STEP 6 To order additional parts, like a ballbag, please contact: Sports Attack Customer Service Dept. Ph 800-71 7-4251 Fx 775-345-2883 Step 5 Both arms are securely in place. Step 6 Tie ball bag straps.
  • Page 12: Operation

    WARNING VOLLEYBALL OPERATION PERSONAL INJURY HAZARD The Total Attack Volleyball Machine is a total practice machine. No special training other than the complete, careful reading of this manual is required to Never reach down near throwing operate the machine. Many coaches have broadened and refined their own coaching wheels for any reason! Always skills by its use.
  • Page 13: Shutting Down

    VOLLEYBALL SHUTTING DOWN TURNING TOTAL ATTACK “OFF” 1. Set each speed control dial to “0.” 2. Turn the on/off switch “OFF.” 3. Unplug Total Attack from the power source. TRANSPORTING 1. Turn the machine “OFF” and unplug. 2. Lower throwing head to the lowest position on the sliding tray. The locating pin will snap into place.
  • Page 14: Care, Cleaning & Maintenance

    CAUTION CARE, CLEANING & MAINTENANCE PERSONAL INJURY HAZARD LUBRICATION Never attempt to clean the Throwing Wheel Motors throwing wheels while they are Motors are sealed and require no lubrication. turning. Rags or implements caught in spinning wheels can CLEANING THE THROWING WHEELS cause serious injury.
  • Page 15: Component Replacement

    COMPONENT REPLACEMENT THROWING WHEEL REPLACEMENT 1. Turn the throwing wheels “OFF” and unplug the power cord. Remove four bolts holding the wheel guard to the motor-side wheel guard. 2. Hold the wheel so that it cannot move. Turn the keyway retaining bolt counter- clockwise using a box end wrench (See Figure 9).
  • Page 16: Motor

    COMPONENT REPLACEMENT (cont’d) CONTROLLER REPLACEMENT 1. Turn the on/off switch “OFF” and unplug the power cord. 2. Remove the four screws holding controller faceplate. Note the position of the main power and motor wires on the controller, then disconnect the wires. Reassemble in reverse order.
  • Page 17 INCREASING TENSION INSTRUCTIONS STEPS IN INCREASING TENSION ON THROWING HEAD (LOCATED AT A) 1. Stretch cord approximately 12” (this distance can be adjusted as required) 2. Using vise grips as shown, clamp tightly to hold shock absorber cord. 3. Loosen knot and slide it down to top of vise grips. 4. Repeat process on opposite side. 5. Release vise grips.
  • Page 18: Controller

    COMPONENT PARTS 1- Wheel Guard Outside 2- Wheel Guard Inside #280-4002 #280-4001 4- Throwing Wheel #531-0007 3- Throwing Head Frame 10- Motor #530-4033 90V - #530-1015 180V - #530-1016 5- Controller 90V - #530-0032 180V - #530-0033 11- Yoke Assembly #533-4034 9- Shock Absorber Cord, ” (not shown) #680-7004 8- Arm Assembly #533-4035 22- Rolling Tray Assembly...
  • Page 19: Parts List

    TOTAL ATTACK PARTS LIST To order additional parts, please contact: Sports Attack PART NO. DESCRIPTION QTY PER Customer Service Dept. 280-4002 Wheel Guard Outside Ph 800-71 7-4251 Fx 775-345-2883 280-4001 Wheel Guard Inside 530-4033 Throwing Head Frame HARDWARE KIT Item# 520-9000 531-0007...
