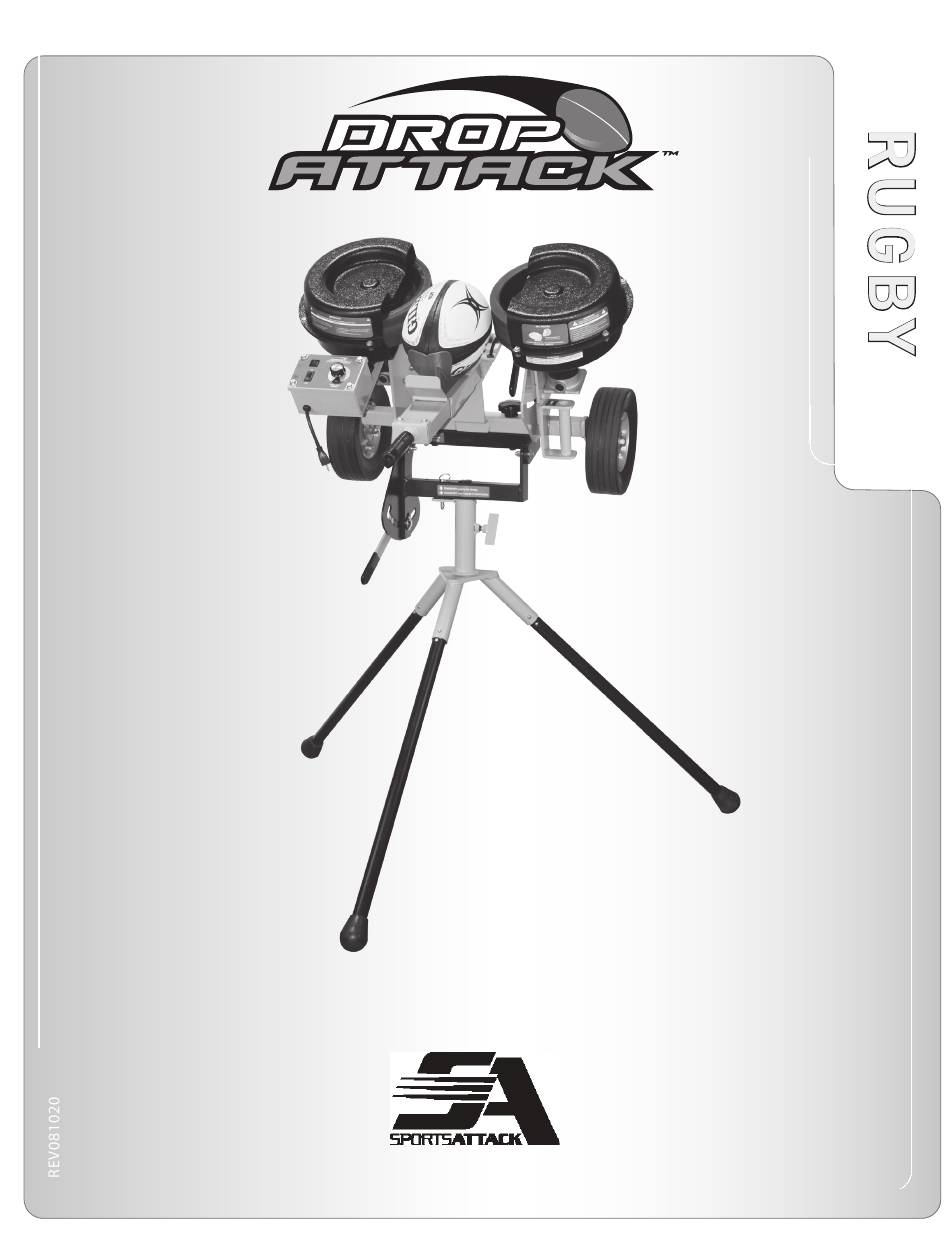

- Page 1 RUGBY TRAINING MACHINE DROP ATTACK RUGBY MACHINE PATENTS APPLIED FOR INSTRUCTION MANUAL OPERATION · SETUP · USE & CARE · SERVICE SPORTS ATTACK LLC. | 800.7 1 7.4251 | www.sportsattack.com...
- Page 2 Customer Service If a service person is needed, Sports Attack will pay the pre-approved labor charge to get Department at 800.717.4251 your machine back in working order.
-
Page 3: Table Of Contents
This manual contains the information needed to properly set up the Drop Attack Rugby Machine, and to use, care for and maintain the Drop Attack in a manner which will ensure its optimum performance. D R O P AT TAC K R U G B Y M AC H I N E Sp or t s At t ack , LLC. -
Page 4: Safety Instructions
Check that the speed control is at “0” before turning the throwing wheels “ON”. Keep hands away from throwing Do not allow anyone to walk in front of the Drop Attack Rugby Machine if it is wheels anytime the machine is connected to electrical power. -
Page 5: Component View
COMPONENT VIEW INFORMATION If you have any questions Top Wheel Guard Throwing Top Wheel Guard regarding the safe operation Wheel of the Drop Attack, please call: Bottom Left Sports Attack Customer Wheel Guard Service Department 800.717.4251 or 775.345.2882 Wheel Tilt 775.345.2883... -
Page 6: Set-Up & Preparation
6. Loosen horizontal control handle (See Figure 5). Make sure that no one steps in 7. Loosen stand elevation handle (See Figure 7). front of Drop Attack while it is 8. Plug machine into power source. (110v or 220v) connected to electric power. -
Page 7: Shutting Down & Transporting
1. Set each speed control dial to “0”. Never reach down near throwing 2. Turn the power switch “OFF”. wheels for any reason! Always 3. Unplug Drop Attack from the power source. turn all three speed control dials “0” , turn the power switch “OFF” , TRANSPORTING... -
Page 8: Care, Cleaning & Maintenance
® EXAMINE THE MACHINE Examine Drop Attack for condition and completeness before every use: 1. Throwing wheels must be tight on the motor shafts. Check that the four bolts holding the motor to the throwing head assembly are tight. -
Page 9: Component Replacement
COMPONENT REPLACEMENT THROWING WHEEL REPLACEMENT 1. Turn the throwing wheels “OFF” and unplug the power cord. Remove 4 bolts holding the top wheel guard to the bottom wheel guard. 2. Hold the wheel so that it cannot move. Turn the keyway retaining bolt counter-clockwise using a box end wrench (See Figure 10). - Page 10 COMPONENT REPLACEMENT (cont’d POWER CORD WIRE Black (#1) CONTROLLER REPLACEMENT On/Off switch 1. Turn the power switch “OFF” and unplug the power cord. White (#2) 2. Remove knob from the controller. N on green control board 3. Remove four screws holding controller faceplate into main casting. Note the Green (#3) position of the main power and motor wires on the controller, then disconnect Grounds to machine...
-
Page 11: Exploded View
EXPLODED VIEW - DROP ATTACK™ Cane Tip Swivel Assy Handle Horizontal Swivel Lock Locking Pin Frame to Swivel Undercarriage Assy Handle, Elevation Bolt, Carriage ” Nylon Nut 110V Disc, Elevation 220V Elevation Clutch Throwing Head Assy Snapping Tube Elevation Mount... -
Page 12: Parts List
PARTS LIST To order additional parts, please contact: PART NO. DESCRIPTION QTY PER Sports Attack 280-1003 Cane Tip Customer Service Dept. 532-0007 800.717.4251 775.345.2883 533-2014 Undercarriage 533-2011 Frame, Elevation Control 533-2025 Yoke 280-2009 Throwing Head Mount knob 533-2026 Elevation Control Handle...
