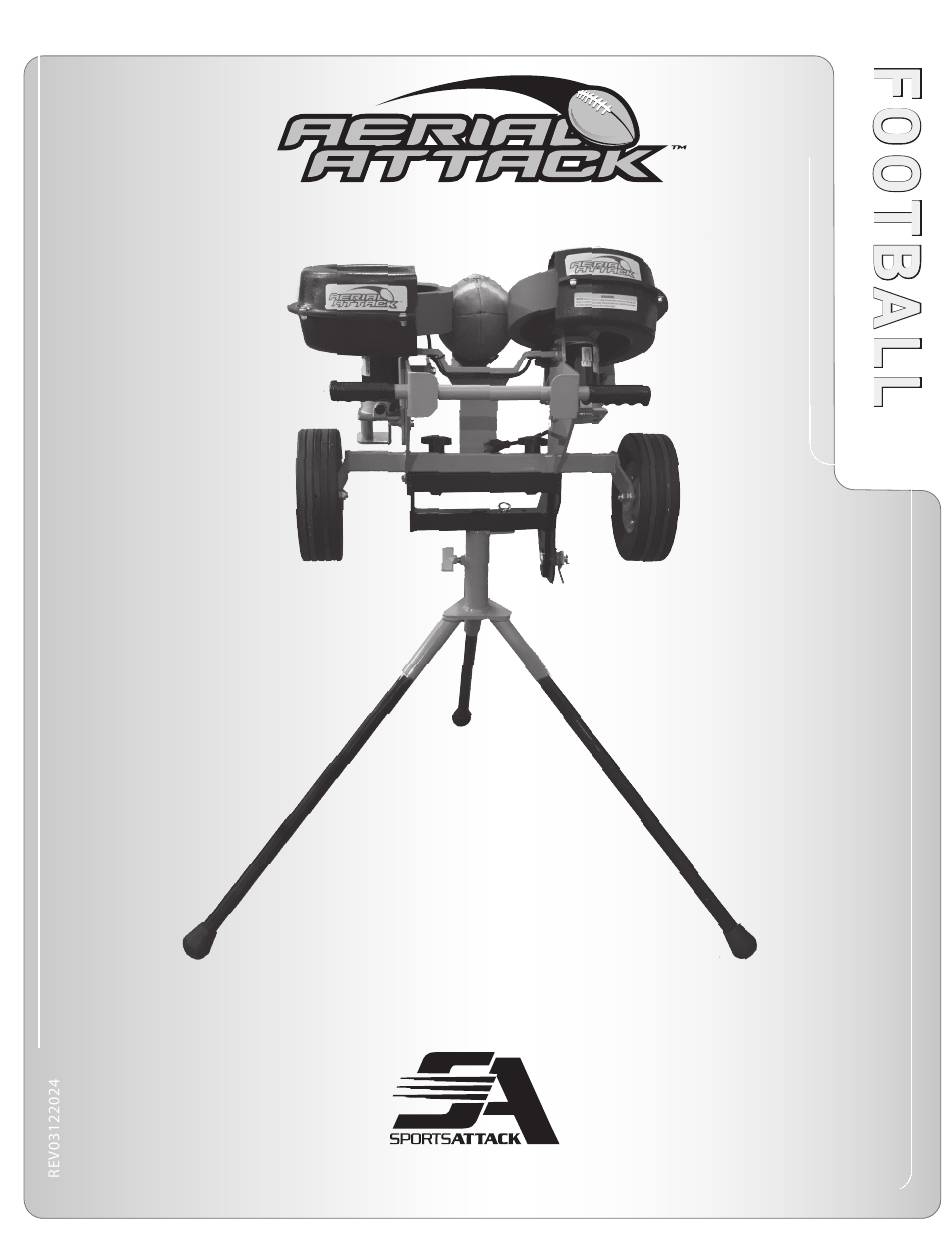

- Page 1 FOOTBALL MACHINE AERIAL ATTACK™ FOOTBALL MACHINE PATENTS APPLIED FOR INSTRUCTION MANUAL OPERATION · SETUP · USE & CARE · SERVICE SPORTS ATTACK LLC. | 800.7 1 7.4251 | www.sportsattack.com...
-
Page 2: Warranty Statement
What is most important to Sports Attack is that your machine meets your expectations and represents our high standards of quality and performance. No matter the circumstances, if this For repairs and service after the is not the case, we encourage you to call our customer service department at 800.717.4251. -
Page 3: Table Of Contents
Be sure to retain the container for inspection. Sports Attack, LLC. cannot assume liability for damage or loss incurred in transit. We will, however, at your request, supply you with the necessary documents to support your claim. -
Page 4: Safety Instructions
ALWAYS set the speed control to “0” before connecting the machine to power. PERSONAL Check that the speed control is at “0” before turning the throwing wheels “ON”. INJURY HAZARD Do not allow anyone to walk in front of the Aerial Attack Football Machine if it Keep hands away from throwing is connected to electrical power. wheels anytime the machine is CAUTION: DO NOT plug in or energize this equipment until all assembly connected to a power source. -
Page 5: Component View
Throwing Head - Figure 1 Throwing If you have any questions Wheel Guard Wheels regarding the safe operation (with Safety Decals) of the Aerial Attack, please call: Wheel Tilt Sports Attack Customer Handle (G) Service Department 800.717.4251 775.345.2883 Motor GENERATOR INFORMATION Motor Lifting Handle (C) 1. -
Page 6: Set-Up & Preparation
SAFETY HINT SET-UP & PREPARATION USING THE AERIAL ATTACK ON THE STAND TO THROW PASSES, PUNTS AND KICKS OFFS When lowering or lifting, Aerial Attack keep your back straight IMPORTANT: Lock pin A must be removed (See Figure 2) and stored in adjacent hole and lift with your legs. -
Page 7: Shutting Down & Transporting
SHUTTING DOWN & TRANSPORTING TURNING AERIAL ATTACK “OFF” 1. Turn the power switch “OFF”. 2. Unplug Aerial Attack from the power source. WITH PASS AND PUNTING STAND Transporting with stand 1. Be sure machine is turned “OFF” and wheels are not turning. 2. Unplug cord from extension cord, standard outlet or generator. 3. Frame lock pin A (See Figures 2 & 4) must be inserted in hole to right, locking head into position for transporting. -
Page 8: Passing, Punting, Kickoff
PASSING, PUNTING & KICKOFF The Aerial Attack is able to simulate right-hand spins only. FOR RIGHT-HAND SPIN 1. Loosen lever clamp H and push down. 2. Using wheel tilt handle H (See Figure 2) push throwing wheel down. 3. Pull handle H (See figure 2) and lock in place. FOR KICKOFF &... -
Page 9: Care, Cleaning & Maintenance
CAUTION CARE, CLEANING & MAINTENANCE PERSONAL INJURY LUBRICATION (once per season, or as required): HAZARD 1. Pass & Kick Elevation Control Handle E (See Figure 2) Never attempt to clean the Apply fresh grease to threads. throwing wheels while they are turning. -
Page 10: Component Replacement
COMPONENT REPLACEMENT THROWING WHEEL REPLACEMENT 1. Turn the throwing wheels “OFF” and unplug the power cord. Remove 4 bolts holding the top wheel guard to the bottom wheel guard. 2. Hold the wheel so that it cannot move. Turn the keyway retaining bolt counter-clockwise using a box end wrench (See Figure 8). Suggestion: If the bolt is too tight, give the opposite end of the wrench a series of light taps with a hammer making sure the wrench remains on the bolt. - Page 11 COMPONENT REPLACEMENT (cont’d) MOTOR REPLACEMENT 1. Turn the power switch “OFF” and unplug the power cord. 2. Remove top wheel guard. 3. Remove the throwing wheel (See page 11). 4. Remove bottom wheel guard. 5. Remove four screws holding the controller into the control box. Note the position of the motor wires on the controller, then disconnect the wire for the motor to be replaced.
- Page 12 POWER CORD WIRE COMPONENT REPLACEMENT (cont’d) Black (#1) CONTROLLER REPLACEMENT On/Off switch White (#2) 1. Turn the power switch “OFF” and unplug the power cord. N on green control board 2. Remove knob from the controller. Green (#3) 3. Remove four screws holding controller faceplate into main casting. Note the Grounds to machine position of the main power and motor wires on the controller, then disconnect CONNECTING WIRES...
-
Page 13: Exploded View
Cane Tip EXPLODED VIEW - Aerial ATTACK™ Swivel Assy Handle Horizontal Swivel Lock Locking Pin Frame to Swivel Undercarriage Assy Handle, Elevation Bolt, Carriage ” Nylon Nut Disc, Elevation 110V Elevation Clutch 220V Throwing Head Assy Snapping Tube Elevation Mount 10 Motor 110V 11 Motor 220V 12 Motor Mount Plate with Pin 13 Smile Plate... -
Page 14: Parts List
To order additional PARTS LIST parts please contact: PART NO. DESCRIPTION QTY PER Sports Attack Customer Service Dept. 280-1003 Cane Tip 800.717.4251 532-0007 775.345.2883 531-1046 Swivel Assy 533-2016 Handle Horizontal Swivel Lock 340-2009 Locking Pin Frame to Swivel 533-2014 Undercarriage Assy... -
Page 15: Attaching Cart Clamp
CART CLAMP KIT ATTACHING OPTIONAL CART CLAMP Item ______________________ Designed to fit 2 ½ to 4 inch round or square post Clamp 1. Insert clamp bolt through top plate. Loosely attach washer and nut. Finger tighten. Top Plate 2. Put 3 bolts through sides of clamps. Slide unit over post, then attach fourth bolt. ½-13x3 ½... -
Page 16: Drilling Practice
DRILLING PRACTICE A. TYPICAL USES WITH STAND 1. Passing a. Passing including deep passes, sideline routes, curls, hook and slants b. Drills including interception, tip and defensive c. Versus zone defenses d. Prevent e. Versus “Hail Mary” 2. Kicking a. Long punt b. Punt return c.
