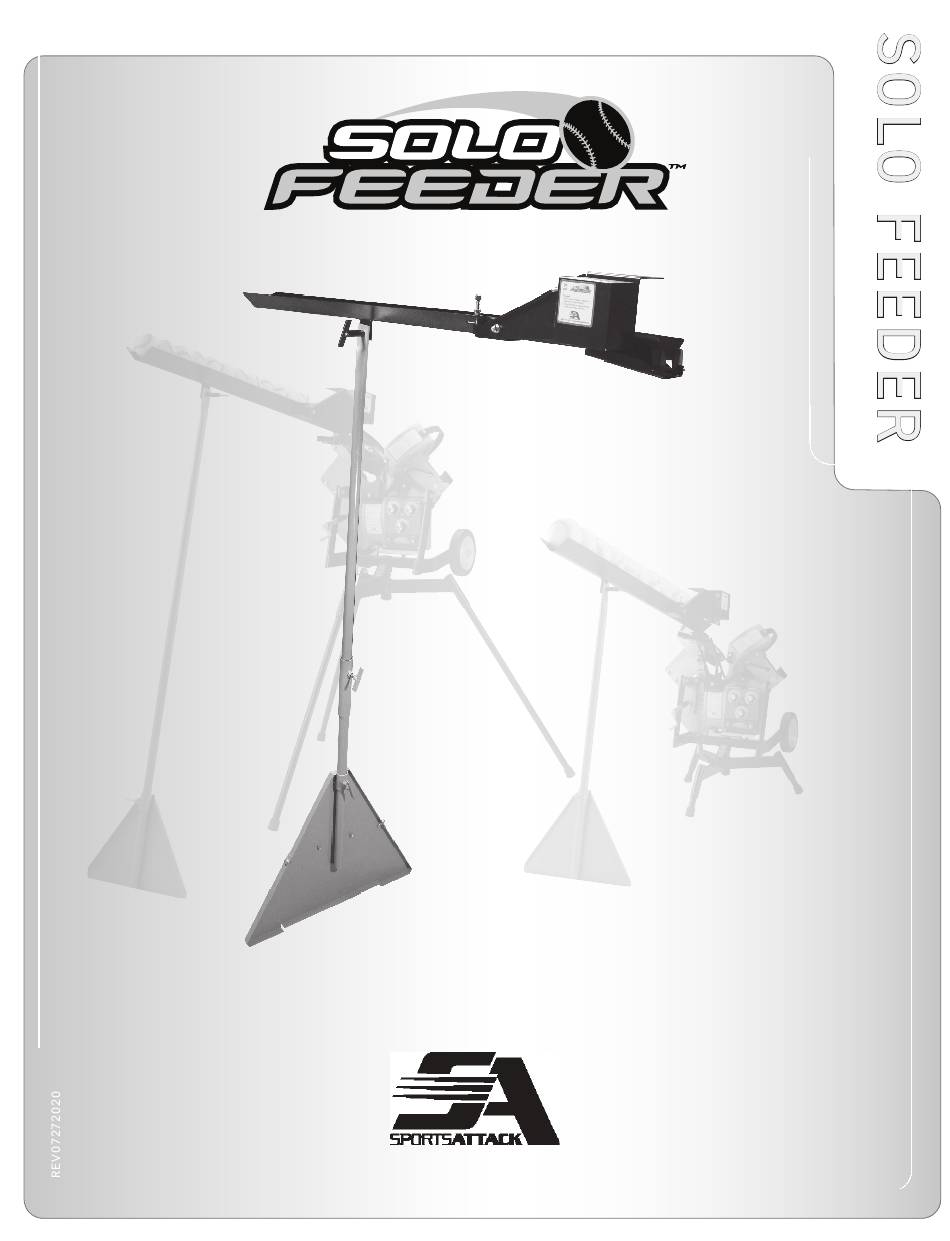

- Page 1 SOLO BALL FEEDER FOR BASEBALL AND SOFTBALL SOLO BALL FEEDER PATENTS APPLIED FOR INSTRUCTION MANUAL OPERATION · SETUP · USE & CARE · SERVICE SPORTS ATTACK LLC. | 800.717.4251 | www.sportsattack.com...
- Page 2 P.O. Box 1529 Verdi, NV 89439 Should such equipment be found to be defective, Sports Attack LLC. will, at its option and sole discretion provide at no cost to the purchaser new or rebuilt replacements for defective parts and will pay the pre-approved labor charge to For repairs and service repair the product for the duration of the warranty period only.
-
Page 3: Table Of Contents
Keep hands away from throwing wheels anytime the machine is If anything is missing or damaged, call Sports Attack Customer Service at connected to a power source. 800-717-4251. If the product or package has been damaged in shipping, note on shipping tag, save all evidence of damage along with related documents and •... -
Page 4: Solo Feeder Operation Component View & Packing List
COMPONENT VIEW PACKING LIST STANDARD (with all feeders) 1. Ball Chute 2. Motor 3. Motor Roller 4. Handle 5. Hack Attack Attachment 6. Stand Top and Boittom SOFTBALL SOLO FEEDERS 7. Softball Leg BASEBALL SOLO FEEDERS 7. Softball Leg 8. Baseball Leg Extension S O LO B A S E B A L L A N D S O F T B A L L F E E D E R S P O RT S AT TA C K , L LC. -
Page 5: Assembly For Baseball
ASSEMBLY FOR BASEBALL NOTE: The Solo Feeder interval control also comes HACK ATTACK AND JUNIOR HACK ATTACK assembled for use with the Track Attack Eye Ball (smaller ball) Pitching Machine. See page 7 STEP ONE: for interval adjustment. Attach Softball leg onto ball chute as Show at “A” Fig. 1. STEP TWO: For a Solo Feeder that is going to be used with a BASEBALL Hack Attack, Junior Hack Attack or Track Attack, attach baseball extension leg (show at “B”... -
Page 6: Assembly For Softball
ASSEMBLY FOR SOFTBALL NOTE: The Solo Feeder interval control also comes HACK ATTACK AND JUNIOR HACK ATTACK assembled for use with the Track Attack Eye Ball (smaller ball) STEP ONE: Pitching Machine. See page 7 for interval adjustment. Attach Softball leg onto ball chute as Show at “A” Fig. 2. STEP TWO: For a Solo Feeder that is going to be used with a SOFTBALL Hack Attack, Junior or Track Attack machine, attach stand as show at “C”... - Page 7 FOR USE WITH HACK ATTACK & JUNIOR HACK ATTACK BASEBALL OR SOFTBALL 1. Assemble feed attachment piece to Hack Attack ball chute handle as shown. Figure 3 Connecting Solo Feeder to Pitching Machine Figure 4 1. Install Attachment Bracket (A) to Ball Chute (B) using Solo Feeder Ball Tray wingnut and washer provided (C).
-
Page 8: Operation
OPERATION WARNING PERSONAL INJURY ADJUSTMENT FOR TIME BETWEEN PITCHES HAZARD To shorten the interval between pitches, loosen jam nut at “A” Fig. 7. Turn the Feeder should be used under adjustment bolt “B” Fig. 8, clockwise. After adjustment, tighten jam nut “A.” adult supervision only! The on/off To lengthen the interval between pitches, loosen jam nut “A”... -
Page 9: Parts Parts List
SOLO FEEDER PARTS LIST To order additional parts, please call: Sports Attack Customer PART NO. DESCRIPTION Service Department 800.717.4251 775.345.2883 533-7017 Stand Top 533-7018 Stand Bottom 533-1194 Handle for Chute 533-1193 Handle for Stand 533-1205 Baseball Extension Leg 533-1204 Softball Leg... -
Page 10: Exploded View
EXPLODED VIEW To order additional parts, please call: Sports Attack Customer Service Department 533-1199 800-717-4251 Chute 775-345-2883 310-8019 533-1204 Roller Softball Leg 533-1197 Motor Bracket 533-1205 Baseball Extension 530-1022 110V Motor 533-3017 Hack Attack 533-1198 Attachment Motor Cover 533-7017 Stand Top...
