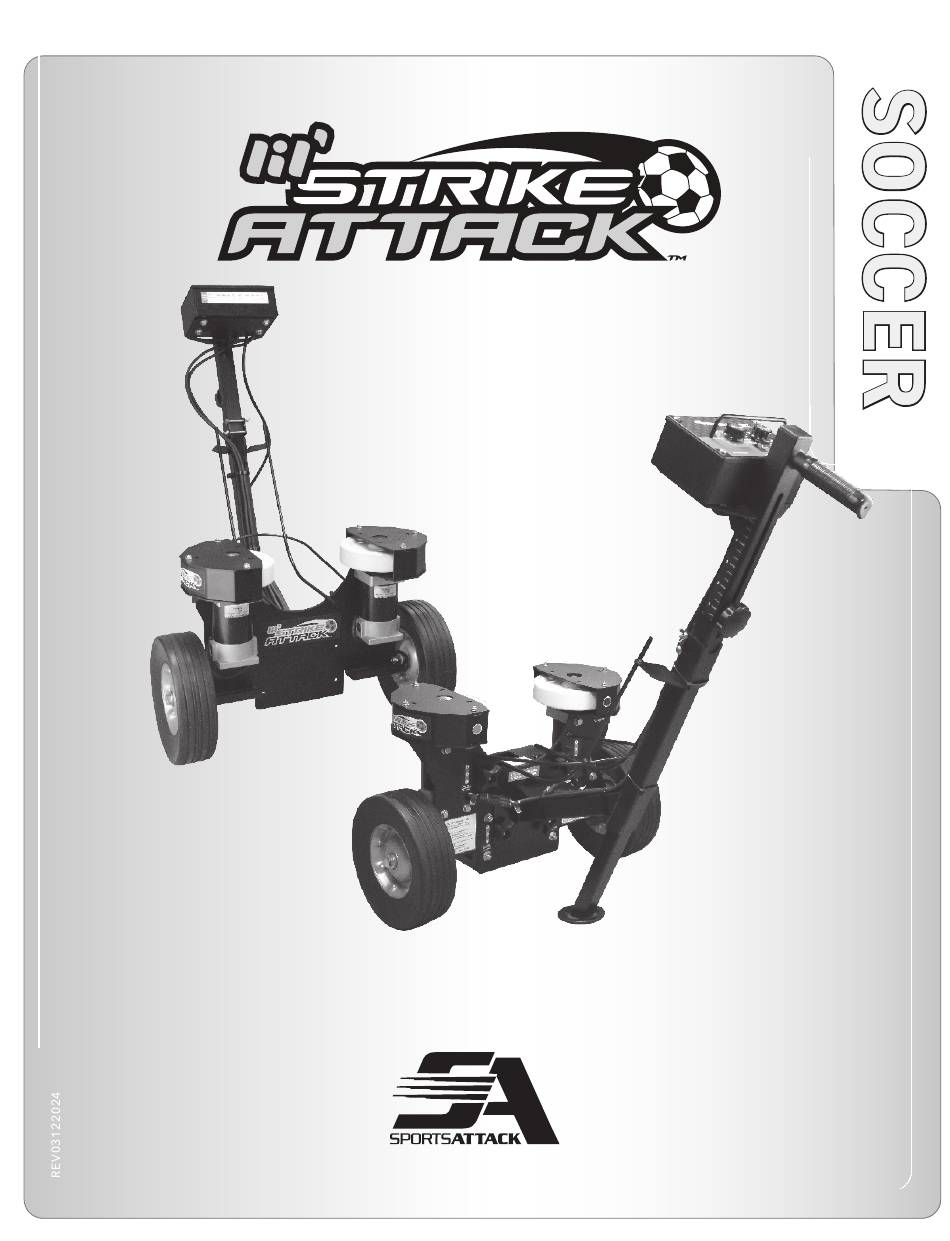

SOCCER MACHINE
LIL' STRIKE ATTACK™
SOCCER MACHINE
(AC MODEL)
LIL' STRIKE ATTACK™
SOCCER MACHINE
(DC MODEL)
INSTRUCTION MANUAL
OPERATION · SETUP · USE & CARE · SERVICE
PATENTS APPLIED FOR
SPORTS ATTACK LLC. | 800.717.4251 | www.sportsattack.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIL' STRIKE ATTACK SOCCER MACHINE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sports Attack LIL' STRIKE ATTACK SOCCER MACHINE

  • Page 1 SOCCER MACHINE LIL’ STRIKE ATTACK™ SOCCER MACHINE (AC MODEL) LIL’ STRIKE ATTACK™ SOCCER MACHINE (DC MODEL) INSTRUCTION MANUAL OPERATION · SETUP · USE & CARE · SERVICE PATENTS APPLIED FOR SPORTS ATTACK LLC. | 800.717.4251 | www.sportsattack.com...
  • Page 2: Warranty Statement

    WARRANTY STATEMENT To register the Warranty, please go to our website: What is most important to Sports Attack is that your machine meets your expectations and represents our high standards of quality and performance. No matter the circumstances, if this sportsattack.com/warranty is not the case, we encourage you to call our customer service department at 800.717.4251.
  • Page 3: Table Of Contents

    (15) days from the date the delivery was made to you. Be sure to retain the container for inspection. Sports Attack LLC. cannot assume liability for damage or loss incurred in transit. We will, however, at your request, supply you with the necessary documents to support your claim.
  • Page 4: Safety Instructions

    WARNING SAFETY INSTRUCTIONS Carefully read all instructions in AC Model - ELECTRICAL SAFETY this manual, and all labels and Use a 115 volt single phase 3-wire grounded power source. warnings on Lil’ Strike Attack Soccer Machine before using. Up to 200 ft. from power source, use a minimum #14/3 grounded 3-wire extension cord. Use machine only under adult Over 200 ft.
  • Page 5: Component View

    COMPONENT VIEW FRONT ADDITIONAL INFORMATION If you have any questions regarding the safe operation of this equipment, please call: Sports Attack Customer Service: 800.717.4251 or 775.345.2882 • To reorder components, a parts list and part numbers can be Throwing found on page 11.
  • Page 6: Set-Up & Preparation

    ADDITIONAL INFORMATION If you have any questions regarding the safe operation of the Footy Attack, please call: Sports Attack Customer Service Department 800.717.4251 STEP 1 STEP 2 775.345.2883 STEP 3 STEP 4 L I L’...
  • Page 7 SET-UP & PREPARATION GENERATOR (CONT’D) INFORMATION 1. Lil’ Strike Attack (AC) requires a generator capable of providing clean electricity with a minimum of 1200 watts at 120 volts 60hz. 2. Be sure the power switch is “OFF” before plugging the machine into the generator. 3.
  • Page 8: Battery Information

    Upon receiving your Lil’ Strike Attack and battery, you should charge the battery using Sports Attack Customer Service: the charger that comes with your unit. The charger has a 20AMP charge rate. Do not 800.717.4251 or 775.345.2882 charge the battery when wet.
  • Page 9 1. Unplug charger from power source. this equipment, please call: 2. Turn both speed control knobs to “0.” Make sure throwing wheels are stopped. Sports Attack Customer Service: 3. Unplug battery connector from throwing head. 800.717.4251 or 775.345.2882 4. Loosen and remove two wing nuts on battery terminal connectors. Remove the two wires on each terminal (1 wire from charger and 1 wire from battery harness).
  • Page 10: Care, Cleaning & Maintenance

    CAUTION CARE, CLEANING & MAINTENANCE LUBRICATION PERSONAL INJURY HAZARD (once per season, or as required): Never attempt to clean the 1. Spin/Angle Control Knob - Apply fresh grease to threads as needed. Throwing Wheels while 2. Rear Leg Assembly Elevation Knob - Apply fresh grease to threads as needed. they are turning.
  • Page 11: Component Replacement

    COMPONENT REPLACEMENT THROWING WHEEL REPLACEMENT 1. Turn both throwing wheel control knobs to “0.” If an AC unit, unplug the power cord. Remove the 4 bolts on the outside wheel guard. 2. Hold the wheel so that it cannot move. Turn the keyway retaining bolt counter-clockwise using a half inch box-end wrench (See Figure 1). Suggestion: If the bolt is too tight, give the opposite end of the wrench a series of light taps with a hammer making sure the wrench remains on the bolt.
  • Page 12 COMPONENT REPLACEMENT (CONT’D) MOTOR REPLACEMENT TOOLS MOTOR REPLACEMENT 1/2” wrench 1. Turn the speed control knobs to “0.” If an AC unit, unplug the power cord. 7/16” wrench 2. Remove outside wheel guard. 3. Remove the throwing wheel (See page 11). 4. Remove inside wheel guard. 5. Unbolt 4 bolts (See Figure 2) and slide motor out. Reassemble with new motor in reverse order.
  • Page 13: Exploded View

    EXPLODED VIEW PARTS LIST 1 Main Chassis Weldment Part # 6112-6059-1 2 Lower Handle Weldment Part # 6112-6056-1 3 Upper Handle Weldment Part # 6112-6057-1 4 Top Wheel Guard Part # 6112-6058-1 5 Motor, 12VDC Part # 6112-6078-1 6 Wheel Guard Assembly Part # 6112-6079-1 7 Throwing Wheel Part # 3343-5080-1...
  • Page 14 SPORTS ATTACK LLC. | 800.717.4251 | www.sportsattack.com...
