CyberData 011097 Installation Quick Reference page 2

Features
DIP Switches
RTFM Switch
To broadcast a V2 Loudspeaker Amplifier's current IP address, press and hold the RTFM switch
for a couple of seconds and then release it.
To restore the factory defaults, complete the following steps:
1. Press and hold the RTFM switch until you hear the V2 Loudspeaker Amplifier announce the
words, "restoring defaults" and "rebooting".
2. Release the RTFM switch. The V2 Loudspeaker Amplifier will be restored to the factory
default settings.
Power LED (GREEN/BLUE)
The power LED is a steady
mode. The power LED will only blink either during a boot up or a phone call.
Status LED (GREEN)
A steady LED confirms that the V2 Loudspeaker Amplifier is oper-
ational. The LED will blink during a page when it is online.
Network Activity LED (GREEN)
Network Link LED (GREEN/YELLOW)
Speaker Volume
DIP Switch Settings
DIP Switch Settings—Low Power—802.3af Compliant (Default)
DIP Switch Setting
1 OFF
2 N/A
3 ON
4 OFF
DIP Switch Setting
1 ON
2 N/A
3 OFF
4 ON
a. If set to high power, the unit will not power ON with 802.3af compliant switch. You must use a
power injector in this mode (CyberData part number 011124).
DIP Switch Setting
2 OFF
2 ON
© 2014, CyberData Corporation, ALL RIGHTS RESERVED
green in low power mode and a steady blue during high power
Description
Sets PoE for 802.3af class.
Not applicable for power setting.
Switch mode current set to LOW.
Low gain amplifier setting.
a
DIP Switch Settings—High Power—802.3at
Description
Sets PoE for 802.3at class.
Not applicable for power setting.
Switch mode current set to HIGH.
Force high gain amplifier.
DIP Switch 2 Settings
Description
Manual Vol. The speaker volume is set manually by the analog
volume trimmer.
Bypass. Bypasses the manual volume control of the analog volume
trimmer and uses the web page volume settings.
930344E

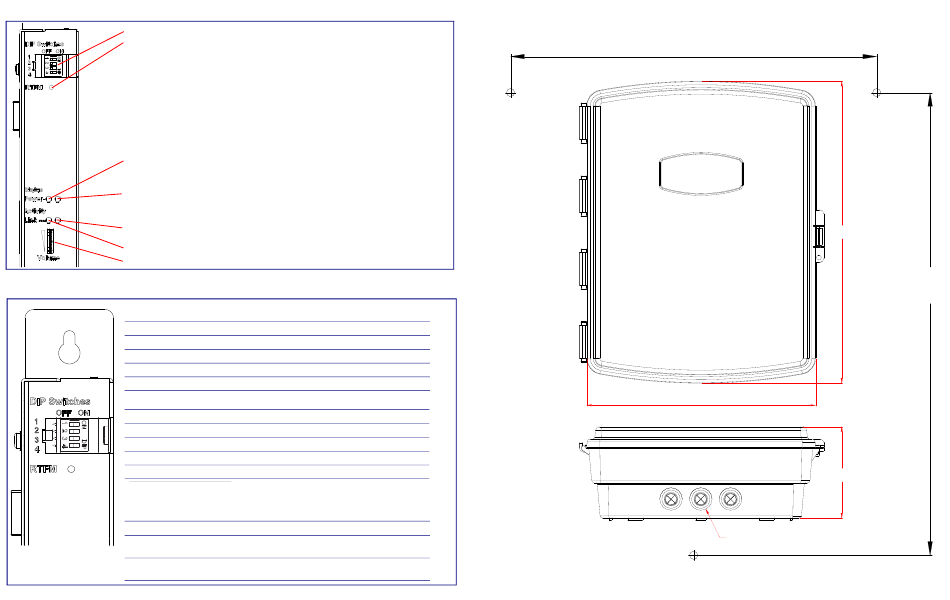

Dimensions and Mounting Template
Quick Reference Quick Reference
6.281 [159.54]
Dimensions are in Inches [Millimeters]
10.875 [276.23]
Dimensions are in Inches [Millimeters]
Cable Grommets (3 PLCS)
930344E © 2014, CyberData Corporation, ALL RIGHTS RESERVED
14.500
[368.30]
7.938
[201.63]
4.375
[111.13]
