DRAWING APPENDIX

Drawing No.: DF2_BEAM

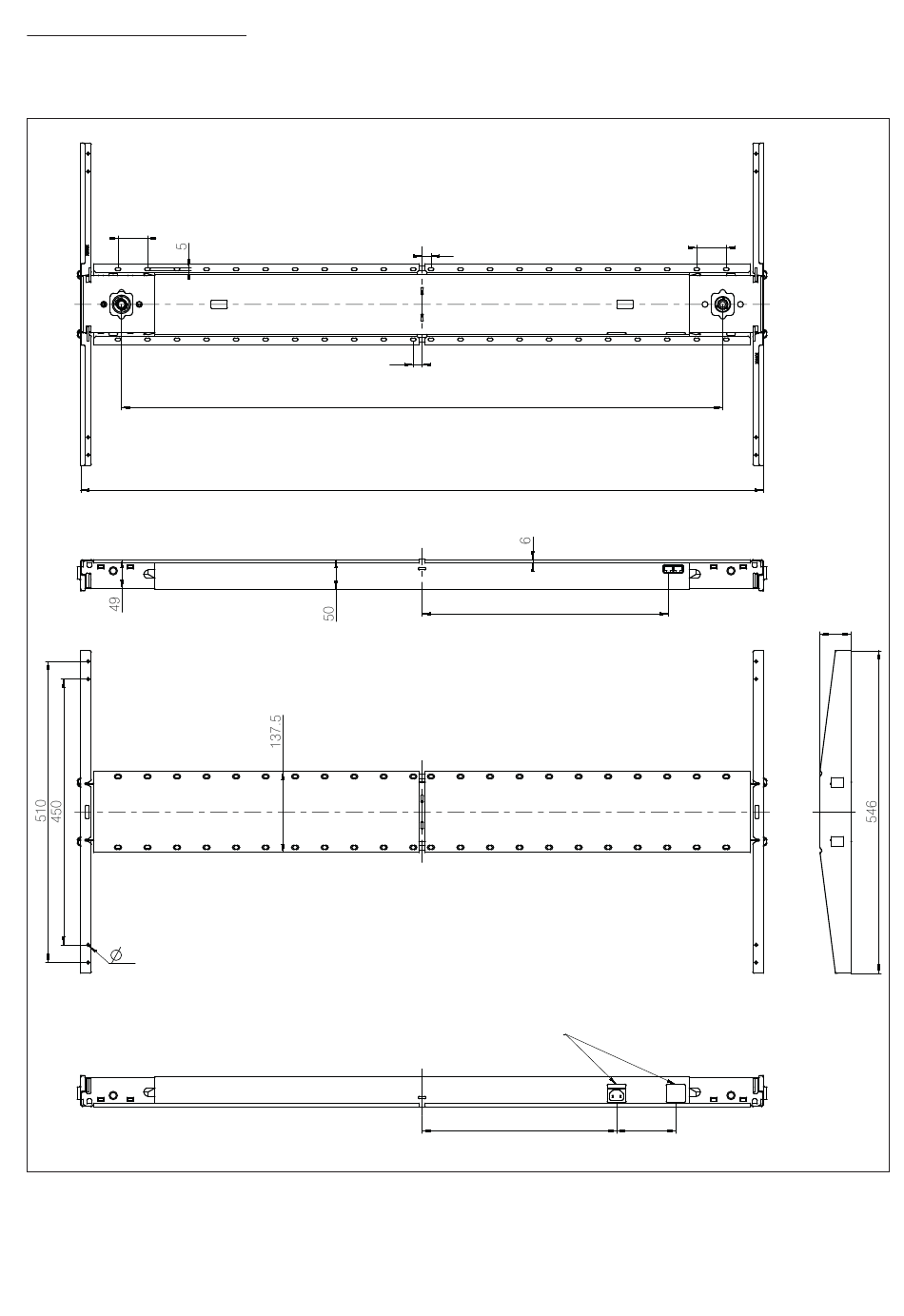

Desk Frame 2 Beam
50
5
Created By Bjarne Skov
Modified By Bjarne Skov
Min. 1018 Max. 1618
Min. 1150 Max. 1750
Minimum adjustment is 100 mm (to keep the power plug
accessible),otherwise it can be adjusted in step of 50 mm
2019-03-14
2020-01-30
15
15
417.4
329.5
Page 22 of 24
50
100
SCALE : 7:50
53
