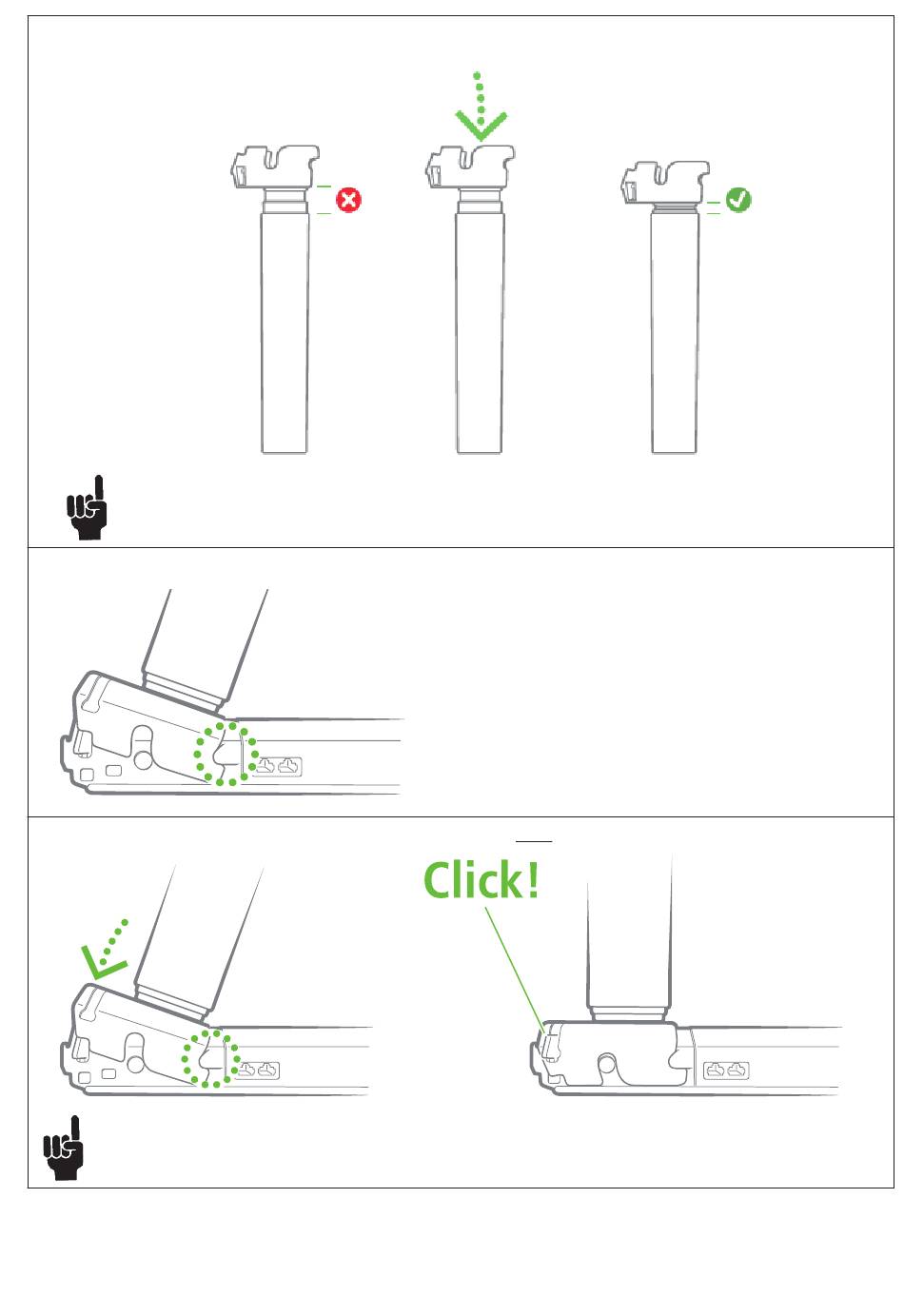

7. Mount columns.
7.1. Ensure columns are completely retracted.
If the column extracts when turned upside down, press by hand to completely retracted position.
7.2. Tilt columns and place correctly on beam using guiding notches.
7.3. Fix column to beam by pressing down until a "click" is heard and both pawls lock column in correct position.
Check that both pawls are visible after mounting of the columns. Otherwise, remove column and try again
(see Disassembly, steps 4 and 5).
Page 16 of 24
