Disassembly tool
Ordering code: SA1023W1241.
The DF2 is available as a set-packed solution.
Beam
Cantilevers,
Desk Panel,
mains cable

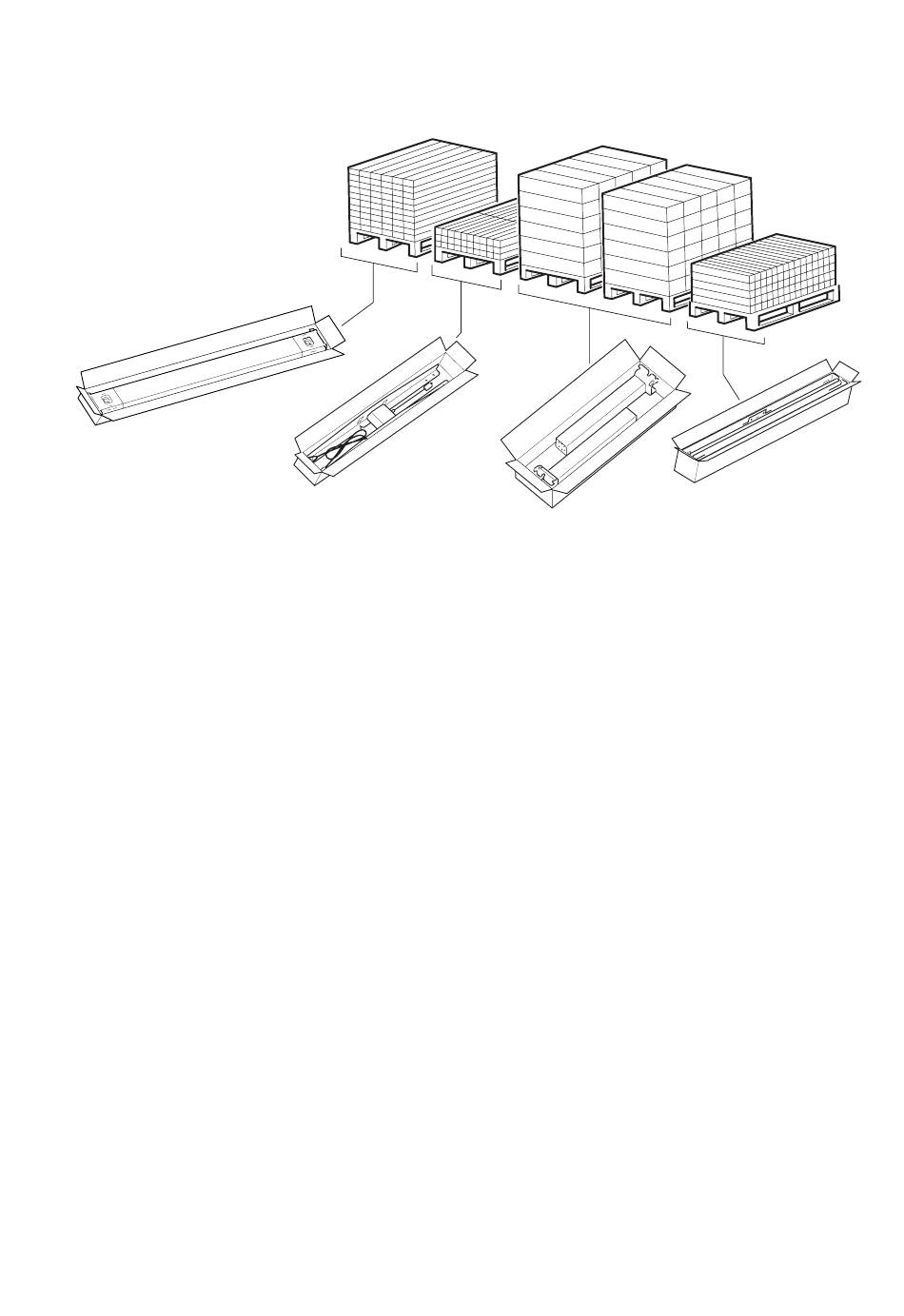

For the set-packed solution the main components of a DF2 frame are packed in separate boxes meaning that a DF2 frame
consists of 4 boxes:
• The beam (1 piece)
• The lifting columns (2 pieces)
• The cantilevers (2 pieces), the selected DPG, mains cable and optionally a mounting kit containing screws for mounting
the tabletop and the DPG as well as cable relief clamps
• The feet (2 pieces including the screws for mounting and the adjustment screws for the foot)
The set-packed solution simplifies logistics at the OEM end, making it easy to select the right components for the desk and
ensuring that all parts are included.
A bulk-packed solution is typically an advantage for high volume OEMs who assemble the frames or the complete desks at
their factories.
Columns
Page 12 of 24
Feet
