CyberData 011272 Installation Quick Reference page 2

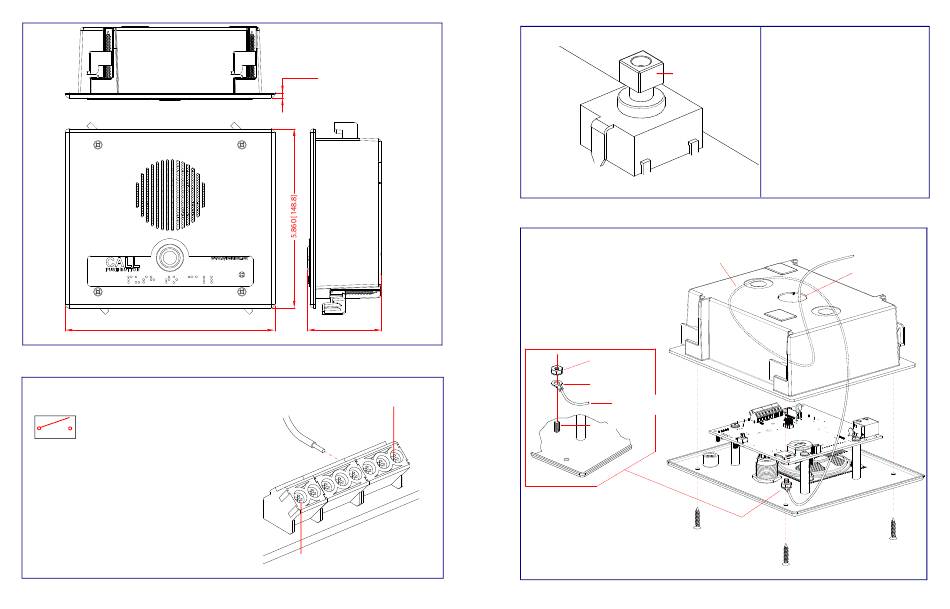

Dimensions
6.840 [173.7]
Dimensions are in Inches [Millimeter]
Terminal Block Connections
Alternate Power Input:
1 = +8 to +12VDC @ 1000mA Regulated Power Supply*
2 = Power Ground*
3 4
Relay Contact:
(1 A at 30 VDC for continuous loads)
3 = Relay Common
4 = Relay Normally Open Contact
5 = Sense Input
6 = Sense Ground
7 = Remote Switch "A"
8 = Remote Switch "B"
*Contacts 1 and 2 on the terminal block are only for
powering the device from a non-PoE 12VDC power
source as an alternative to Network PoE power. Use of
these contacts for any other purpose will damage the
device and void the product warranty.
© 2019, CyberData Corporation, ALL RIGHTS RESERVED
0.170 [4.3]
2.419 [61.4]
Use a 3.17 mm (1/8-inch) flat blade
screwdriver for the terminal block screws
Wire (IN)
Tin Leads
Approx. 1/4" or
6mm
8
Terminal Block
can accept 16 AWG wire
931606B Quick Reference
RTFM Button
Ground Connection
1
Quick Reference
When the device is operational and linked to a network,
you can use the Reset Test Function Management
(RTFM) button (SW1 [see picture]) to announce the
device's IP address or restore the device to the factory
RTFM button (SW1) default settings.
To announce the device's current IP address:
•
Note
To restore the device to factory default settings:
•
Create Service Loop
inside Backbox
Nut (Pre-Installed)
Ground Lug Fits
#6 Ring Terminal
Cutomer Provide
Ground Wire
Ground Lug
931606B © 2019, CyberData Corporation, ALL RIGHTS RESERVED
Press and release the RTFM button within a five
second window.
The device will use DHCP to obtain the new IP
address (DHCP-assigned address or default to
10.10.10.10 if a DHCP server is not present).
Press and hold the RTFM button for longer than five
seconds until you hear the device announce that it is
restoring the factory default settings.
Knock Out
