1. Important notes
•
Please read these instructions carefully and
completely before putting the lock in operation.
•
Replace the 0 _ 1 2 3 4 5 6 factory combination
immediately by programming your own master
combination; see Section 8.1.
•
Do not use any personal data for your new master or
user combination.
•
The maximum permissible interval between any two
keypad entries is 30 seconds. If this limit is exceeded,
then the entire procedure will have to be repeated
from the beginning.
B7202_E_1.pmd
Electronic lock 7202

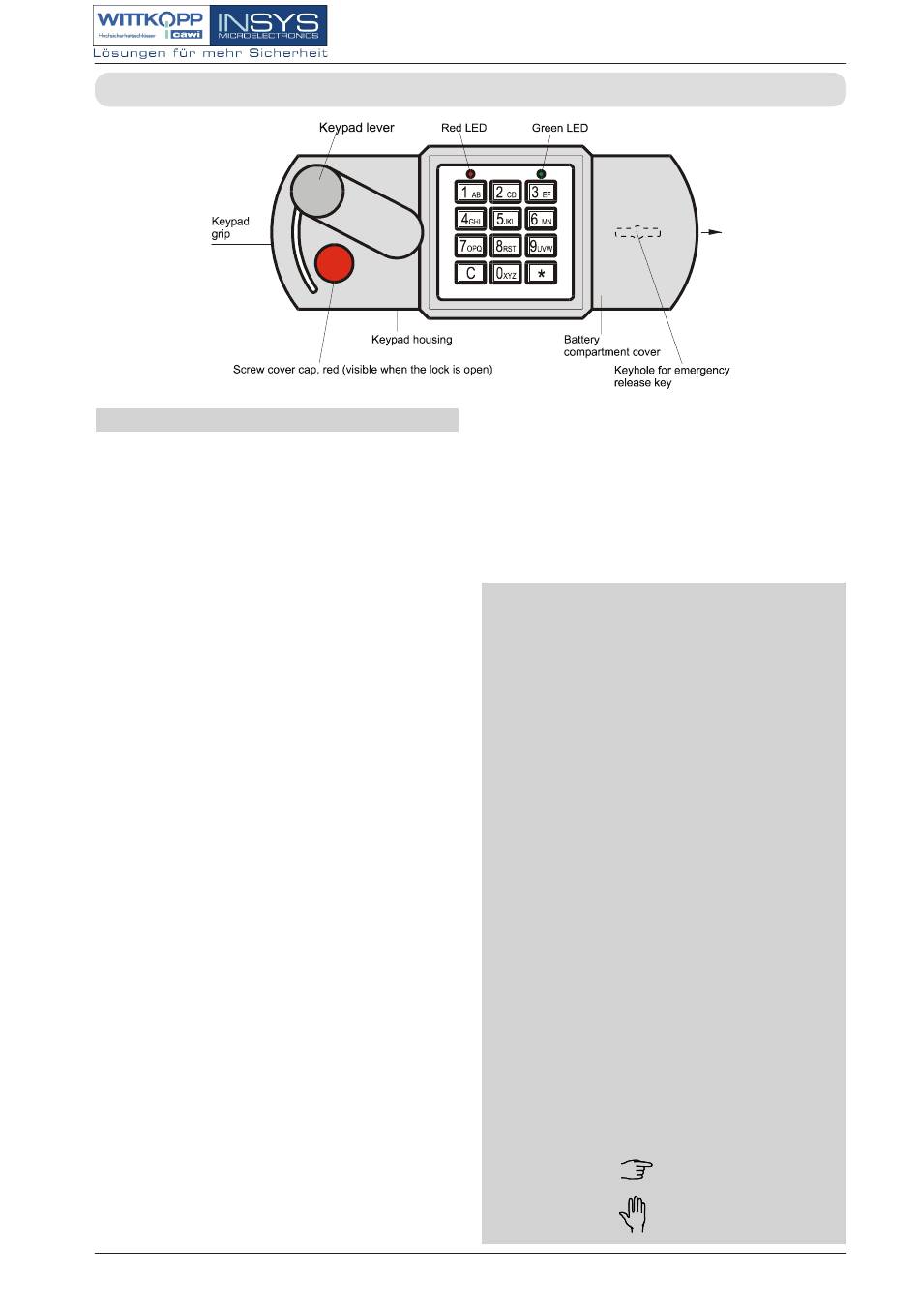

Fig. 1
•
•
•
1.1 Explanation of terms
The following terms and symbols are used:
User number =
Code
Combination
Factory
combination
Master
combionation =
User
combination
P - No.
LED
Note
Caution
12.06.2003
Bedienungsanleitung Nr. 9999-041-0
A signal tone sounds each time a button is pressed.
A 10-second time-out period will be started after
invalid combinations have been entered in three
consecutive attempts.
Do not damage the inspection seal on the lock as the
guarantee will otherwise be invalidated.
User number (abbreviated UNo.)
UNo.
= 0 for master
UNr.
= 1 to 5 für users
=
A series of digits,
e.g. 4 7 6 2 3 9
A series of digits required to open
=
the lock. It comprises the:
User number and code:
Example for the master combination
0 _ 6 5 4 7 2 1
Example of a user combination
3 _ 8 7 9 5 8 3
=
The initial combination, programmed at
the factory. The combination for this
electronic lock has been pre-set to
0 _ 1 2 3 4 5 6
Combination used by the master to
open the lock
=
Combinations for additional users.
All user combinations are subordinate
to the master combination.
=
Program number
=
Light-emitting diode at the keypad.
=
=
Seite 1
