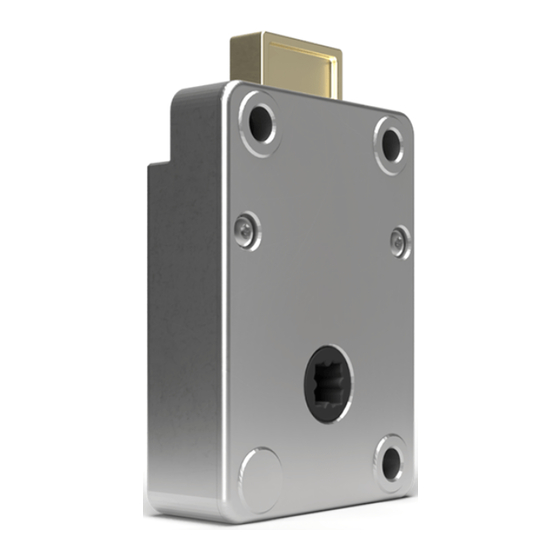

Anchor 2600
Installer manual
Installation and commissioning instructions
Note:
On the cover sheet you can find warning information, and an explanation of the symbols and
terms used, together with the exclusion of liability.
Mount the keypad before installing the electronic lock. All the keypads of the Primor series
with direct drive can be used (RO, RE). The function is generally given with all input units
of the Primor series, an additional handle for the drive of the bolt is needed, depending on
which keyboard was chosen. Details on installing the keypads are given in the installation
instructions (see sections "en_02 en_APxxx-Teil 2a-Errichterhandbuch Tastatur V2.05").
Contents
General ................................................................................................................................. 2
Preparation for installation ..................................................................................................... 3
Installation dimensions A2600 ........................................................................................... 3
Preparation of the boltwork / door ...................................................................................... 3
Installation ............................................................................................................................. 4
Wiring / installation ................................................................................................................ 4
Connection of an analog keypad ....................................................................................... 5
Connection P- signal plus / UART ..................................................................................... 5
Function test .......................................................................................................................... 6
Input of the opening code .................................................................................................. 6
Keypad test ....................................................................................................................... 6
System setup ........................................................................................................................ 7
02 en_A2600-Teil 2b-Errichterhandbuch V2.03.docx
1 / 7
Advertisement
Table of Contents
Related Manuals for Wittkopp Anchor 2600
Summary of Contents for Wittkopp Anchor 2600
- Page 1 Anchor 2600 Installer manual Installation and commissioning instructions Note: On the cover sheet you can find warning information, and an explanation of the symbols and terms used, together with the exclusion of liability. Mount the keypad before installing the electronic lock. All the keypads of the Primor series with direct drive can be used (RO, RE).
- Page 2 Anchor 2600 Installer manual Installation and commissioning instructions General Locks of the Anchor 4000 series have electronic lock requires standard installation dimensions and can maintenance in a normal residential or be mounted in all 4 installation positions office environment. We recommend a (right, left, top, bottom).
- Page 3 Anchor 2600 Installer manual Installation and commissioning instructions Preparation for installation Installation dimensions A2600 Preparation of the boltwork / door For mounting the lock there must be three The length of the screws must be 25 mm or threaded holes for attachment to the more so that a minimum screw-in depth of boltwork or within the safe door.
- Page 4 Anchor 2600 Installer manual Installation and commissioning instructions Installation The fastening screws must be tightened so The bolt of the lock may not be under that a permanent and firm hold is tension or pressure after installation. guaranteed. Pay attention to enough free space to the Tighten up the fastening screws to a blocking point.
- Page 5 Anchor 2600 Installer manual Installation and commissioning instructions Connection of an analog keypad As supplied, only the interface for an analog You can find the corresponding commands keypad from the Primor series is active. If in the user manual. the lock is to communicate with a digital You can find information on inserting the input unit, i.e., an "intelligent"...
- Page 6 Anchor 2600 Installer manual Installation and commissioning instructions Function test Carry out a function test after completing all Using the handle for the boltwork the safe the mounting and installation work. With the should be opened easily and reliably closed door open, you should open and close the again.
- Page 7 Anchor 2600 Installer manual Installation and commissioning instructions System setup The setting options and the control sequences that are required are described in the user manual. We therefore recommend the following procedure: • Setup of the users [menu 1] •...
