Installation instructions Primor

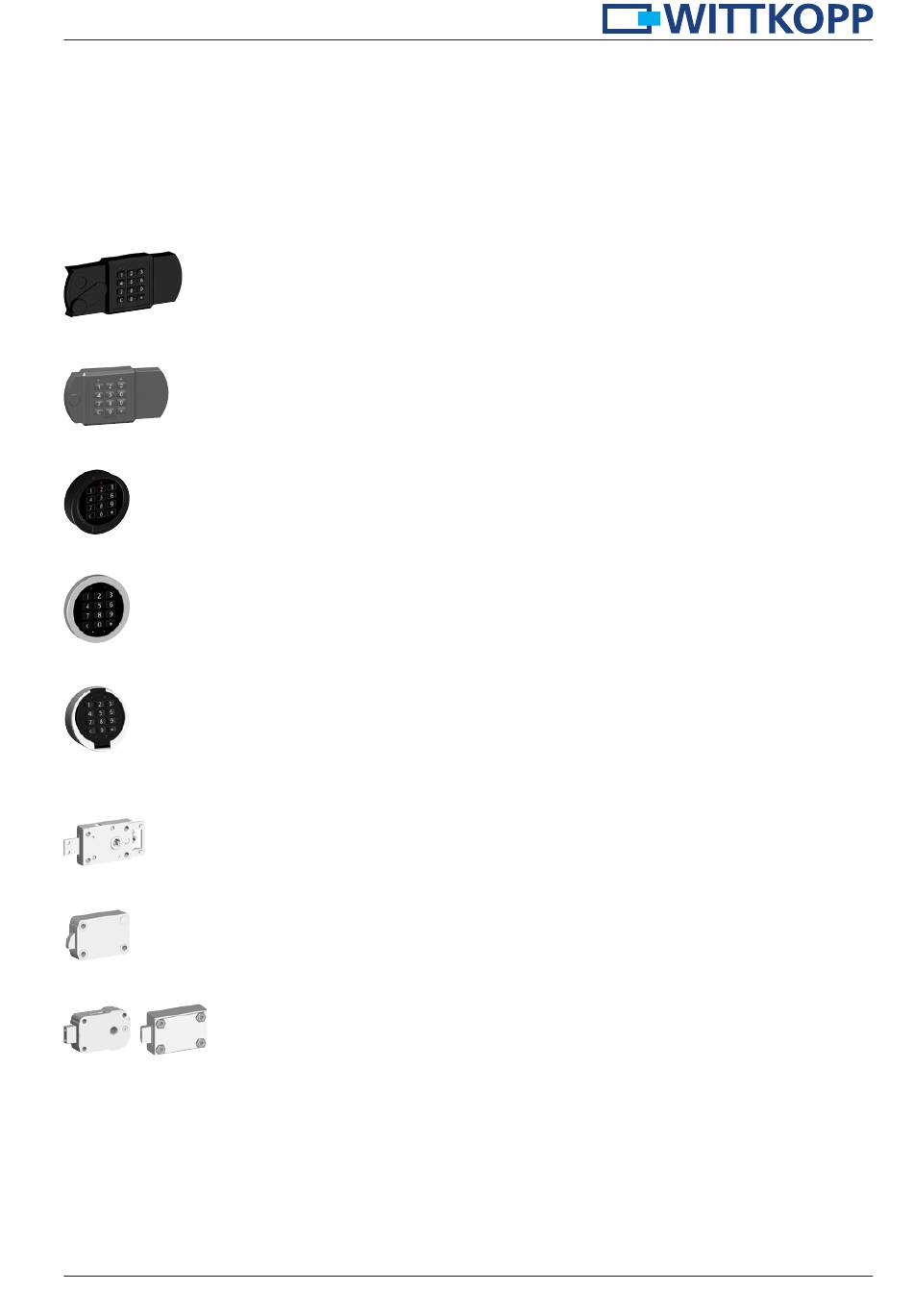

Content
1 General instructions _____________________________________________________________ 2
2 System overview _________________________________________________________________ 2
3 Installation input unit Primor RE ____________________________________________________ 3
4 Installation input unit Primor FE ____________________________________________________ 5
5 Installation input unit Primor RO ___________________________________________________ 7
6 Installation input unit Primor FL ___________________________________________________ 11
7 Installation input unit Primor FS ___________________________________________________ 13
8 Installation lock ________________________________________________________________ 14
9 Mounting lock Primor 100 _______________________________________________________ 15
10 Mounting lock Primor 1000 _____________________________________________________ 18
11 Mounting lock Primor 1000/2000/3000/3010/3011 ______________________________ 18
12 Plug positions _________________________________________________________________ 21
13 External power supply __________________________________________________________ 21
14 Functional test ________________________________________________________________ 22
15 Testing the system _____________________________________________________________ 22
© Carl Wittkopp GmbH - Errors and omissions excepted
Rel. 1.6
06.02.2017
Installation instructions no 9999-154-0
Advertisement
Table of Contents
Related Manuals for Wittkopp Primor Series
Summary of Contents for Wittkopp Primor Series
-
Page 1: Table Of Contents
11 Mounting lock Primor 1000/2000/3000/3010/3011 ______________________________ 18 12 Plug positions _________________________________________________________________ 21 13 External power supply __________________________________________________________ 21 14 Functional test ________________________________________________________________ 22 15 Testing the system _____________________________________________________________ 22 © Carl Wittkopp GmbH - Errors and omissions excepted Rel. 1.6 06.02.2017 Installation instructions no 9999-154-0... -
Page 2: General Instructions
Installation instructions Primor 1 General instructions • Please read the installation instructions carefully, before activating the lock. 1.1 Liability notes • The mounting of the electronic lock and the input unit has to be carried out according to the installation instruction. •... -
Page 3: Installation Input Unit Primor Re
Installation instructions Primor 3 Installation input unit Primor RE 3.1 Input unit Primor RE 3.1.1 Dimensions Primor RE 3.2 Installation overview 3.2.1 Input unit Primor RE Axe profile Cylinder screws M5 x 18 Battery compartment cover Lever input unit Cylinder screws M5 x 14 Black covering cap Red covering cap... - Page 4 Installation instructions Primor 3.4 Mounting input unit 3.4.1 Drill pattern Primor RE (lock is closing towards the right) - (closing towards the left inversely) Opening for cable 2 x Fixing position for screws M5 x 14 Ø 11,4 2 x Fixing position for screws M5 x 18 •...
-
Page 5: Installation Input Unit Primor Fe
Installation instructions Primor 4 Installation input unit Primor FE 4.1 Input unit Primor FE 4.1.1 Dimensions Primor FE 11,5 52,5 4.2 Installation overview 4.2.1 Input unit Primor FE Battery compartment cover Black covering cap Cylinder screw Axe profile M5 x 14 M5 x 18... - Page 6 Installation instructions Primor 4.3 Mounting input unit 4.3.1 Drill pattern Primor FE (lock is closing towards the right) - (closing towards the left inversely) 11,5 • From the front 3 threaded holes M5 with sufficient thread depth and 1 through-hole (opening for cable/Spindle) have to be drilled into the safe door.
-
Page 7: Installation Input Unit Primor Ro
Installation instructions Primor 5 Installation input unit Primor RO 5.1 Input unit Primor RO 5.1.1 Dimensions Primor RO 5.2 Installation overview 5.2.1 Input unit Primor RO Fixing ring for input unit 4 Cylinder screws M4 x 10 Spindle for turnable input unit Connection cable Input unit Türlochbohrung... - Page 8 Installation instructions Primor 5.4 Axis length calculation input unit Primor RO (drehbar) 5.4.1 In connection with Primor 100 5.4.2 In connection with Primor 2000 Spindle: Spindle: Debur the ends Debur the ends L = A + 28 mm (tolerance -4 mm) L = A + 43 mm (tolerance -4 mm) L = A + 43mm (Toleranz - 4mm) L = A + 43mm (Toleranz - 4mm)
- Page 9 Installation instructions Primor 5.5 Mounting input unit 5.5.1 Drill pattern fixing with 4 threaded holes Primor RO 4 x Fixing position for M4 Hole center congruent with middle axis of nut of the electronic lock Opening for cable • From the front 4 threaded holes M4 with sufficient thread depth and 1 through-hole (opening for cable/Spindle) have to be drilled into the safe door.
- Page 10 Installation instructions Primor 5.5.3 Input unit Primor RO (fixed) 5.5.4 Input unit Primor RO (fixed) Fixing ring with 4 threaded holes Fixing ring with 8 threaded holes Drill-hole Ø 3,4 mm in the safe door to fix the input unit •...
-
Page 11: Installation Input Unit Primor Fl
Installation instructions Primor 6 Installation input unit Primor FL 6.1 Input unit Primor FL 6.1.2 Input unit Primor FL 6.1.3 Dimensions Primor FL (fixing on the inside) (fixing on the front) Emergency 6.2 Mounting input unit Ø 92 6.2.1 Drill pattern Primor FL Opening for cable: Drill-hole min. - Page 12 Installation instructions Primor 6.3.3 Battery sliding compartment 6.3.4 Drill pattern battery sliding compartment • The battery sliding compartment has to be fixed to the inside of the door. It is recommended to fix it in a way that it is accessible without unscrewing the interior of the door.
-
Page 13: Installation Input Unit Primor Fs
Installation instructions Primor 7 Installation input unit Primor FS 7.1 Input unit Primor FS 7.1.1 Dimensions Primor FS 7.2 Mounting input unit 7.2.1 Drill pattern Primor FS Fixing position for screws M5 Opening for cable: Drill-hole min. Ø 8 mm/max. Ø 11,4 mm for connection cable has to be drilled into the safe door •... -
Page 14: Installation Lock
Before mounting the lock the input unit has to be installed (see chapter 3 to 7). Wittkopp electronic locks of the Primor series have got standard fixing points and can be mounted in all 4 directions (right-hand, left-hand, up, down). -
Page 15: Mounting Lock Primor 100
(with anti-drilling plate) 112,5 112,5 66,5 If the lock is mounted without its lock case further installation guidelines have to be considered. Non-observance leads to loss of VdS certification. A separate installation instruction no 9999-139-1 can be found on www.carl-wittkopp.com. - Page 16 Installation instructions Primor 9.2 Mounting lock Primor 100 - Schlossdecke anschraubbar 9.2.1 Dimensions lock Primor 100 - lock cover screwed 66,5 Hub/Stroke 12 Platzbedarf für Riegelhub / Required space for bolt throw Ø 6,5 • 4 threaded holes M6 or 1/4" with depth min. 5 mm for fixing the key lock have to be drilled into the safe door. •...
- Page 17 Installation instructions Primor 9.3 Mounting lock Primor 100 - lock cover welded 9.3.1 Dimensions lock 100 - lock cover welded 9.3.2 Dimensions lock Primor 100 - lock cover welded (without anti-drilling plate) (with anti-drilling plate) 102,1 Hub/Stroke Hub/Stroke 12 Platzbedarf für Riegelhub / Platzbedarf für Riegelhub / Required space for bolt throw Required space for bolt throw...
-
Page 18: Mounting Lock Primor 1000
Installation instructions Primor 10 Mounting lock Primor 1000 • When the swing bolt lock is used with another lock, the boltwork has to be set up, so that the swing bolt lock inevitably locks first. 11 Mounting lock Primor 1000/2000/3000/3010/3011 11.1 Dimensions lock Primor 1000 11.1.1 Dimensions lock Primor 2000 Hub/Stroke 12... - Page 19 Installation instructions Primor 11.2 Primor 3010 and 3011 with emergency lock • Only emergency locks with the VdS class 2 may be installed. • If electronic locks Primor 3010/3011 are installed without emergency locks, the installation has to be checked with the cor- responding testing institute.
- Page 20 Installation instructions Primor 11.2.3 Security notes Primor 3010/3011 – emergency lock • For the emergency locks the general installation notes as described under point 8 apply. • Due to security reasons it is recommended not to leave the key unattended in the lock. •...
-
Page 21: Plug Positions
Installation instructions Primor 12 Plug positions 12.1 Primor 100 12.2 Primor 1000 Input unit Battery compartment/ signalbox Input unit 12.3 Primor 2000 12.4 Primor 3000/3010/3011 Battery compartment/ signalbox Signalbox Input unit Input unit • Connect the plug from/to the input unit into the outer plug position on the lock and check fixation. To loose the plug, carefully lift and pull out. -
Page 22: Functional Test
Installation instructions Primor 14 Functional test (when the door is open) • Connect the power supply: connect the battery 9V block with the battery clip in the input unit or switch on the external power supply. • Enter the factory code: Lock Primor 100: 1 –... - Page 23 Installation instructions Primor...
- Page 24 Installation instructions Primor...
