INFOSEC UPS SYSTEM E4 Evolution II TT Series User Manual page 97

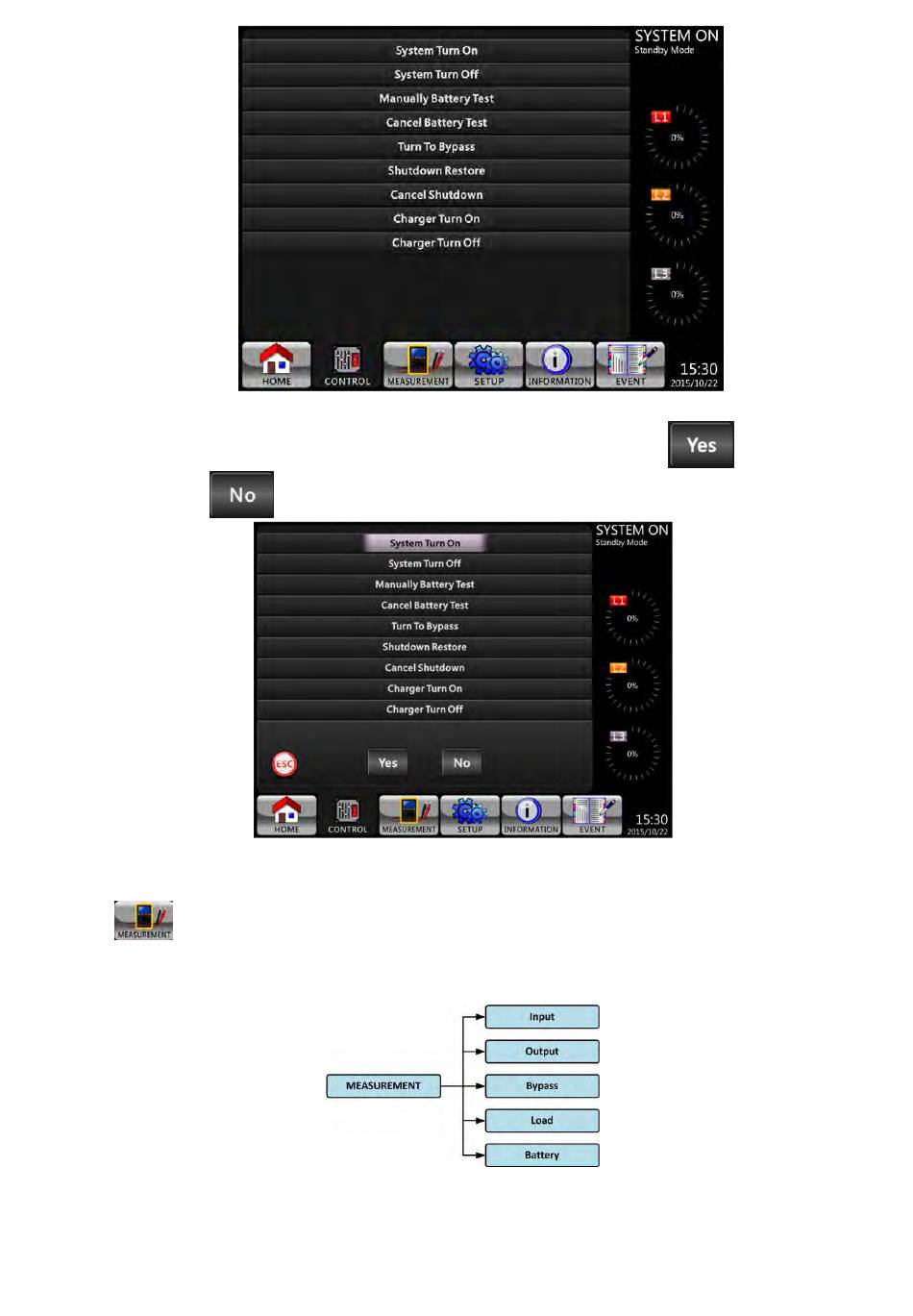

Control Screen Page
Touch any option directly. Then, confirmation screen will pop up. Touch icon to confirm
command or touch icon to cancel command as shown below.
Confirmation Screen
3-2-4. Measurement Screen
Touch icon to enter into the sub-menu. You may choose input, output, bypass, load or battery to
monitor each detailed status. Please refer to the figures below for detailed descriptions. All detailed
measurement items are listed in the table below.
Measurement Menu
