INFOSEC UPS SYSTEM E4 Evolution II TT Series User Manual page 107

Charging Voltage --
Auto-Restart
--
Battery Voltage
Pre-Alarm Screen

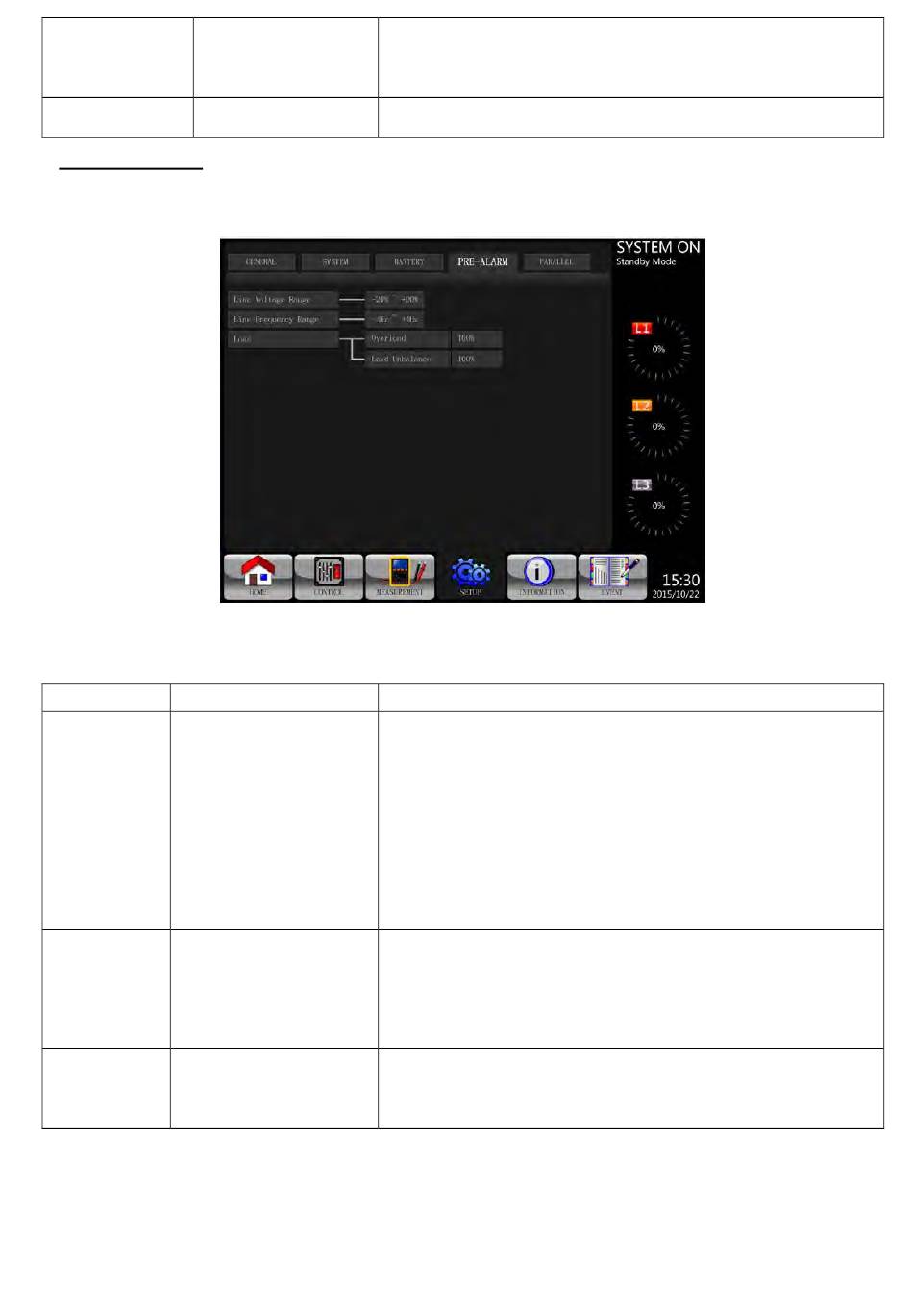

The Pre-Alarm Setup Screen and Setting options are shown below. Pre-Alarm Setting can be access in any
operation mode.
Setup-Pre-Alarm Setting List
Setting Item Sub Item
Line Voltage
--
Range
Line
Frequency --
Range
Load --
3-2-5. Parallel Setup Screen
Simply touch on the "PARALLEL" tab to show parallel function page as shown below.
INFOSEC UPS SYSTEM – 15, Rue du Moulin – 44880 Sautron – France – www.infosec-ups.com
106
Hot Line Tel : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 02 19 AA 59 203 07
Set battery charging voltage. (2.30~2.35V)
 2.35V (Default)
Set battery float voltage. (2.23~2.35V)
 2.29V (Default)
Set auto-restart battery voltage. (0 or 12.0V~13.0V)
 0V (Default)
Pre-Alarm Setup Screen
Explanation
Set line voltage range:
Upper limit
 +5%
 +10%
 +15%
 +20% (Default)
Lower limit
 -5%
 -10%
 -15%
 -20% (Default)
Set line frequency range:
Upper / Lower limit
 +/- 1Hz
 +/- 2Hz
 +/- 3Hz
 +/- 4Hz (Default)
Set UPS overload percentage (40~100%)
 100% (Default)
Set UPS load unbalance percentage (20~100%)
 100% (Default)
