power to the load.

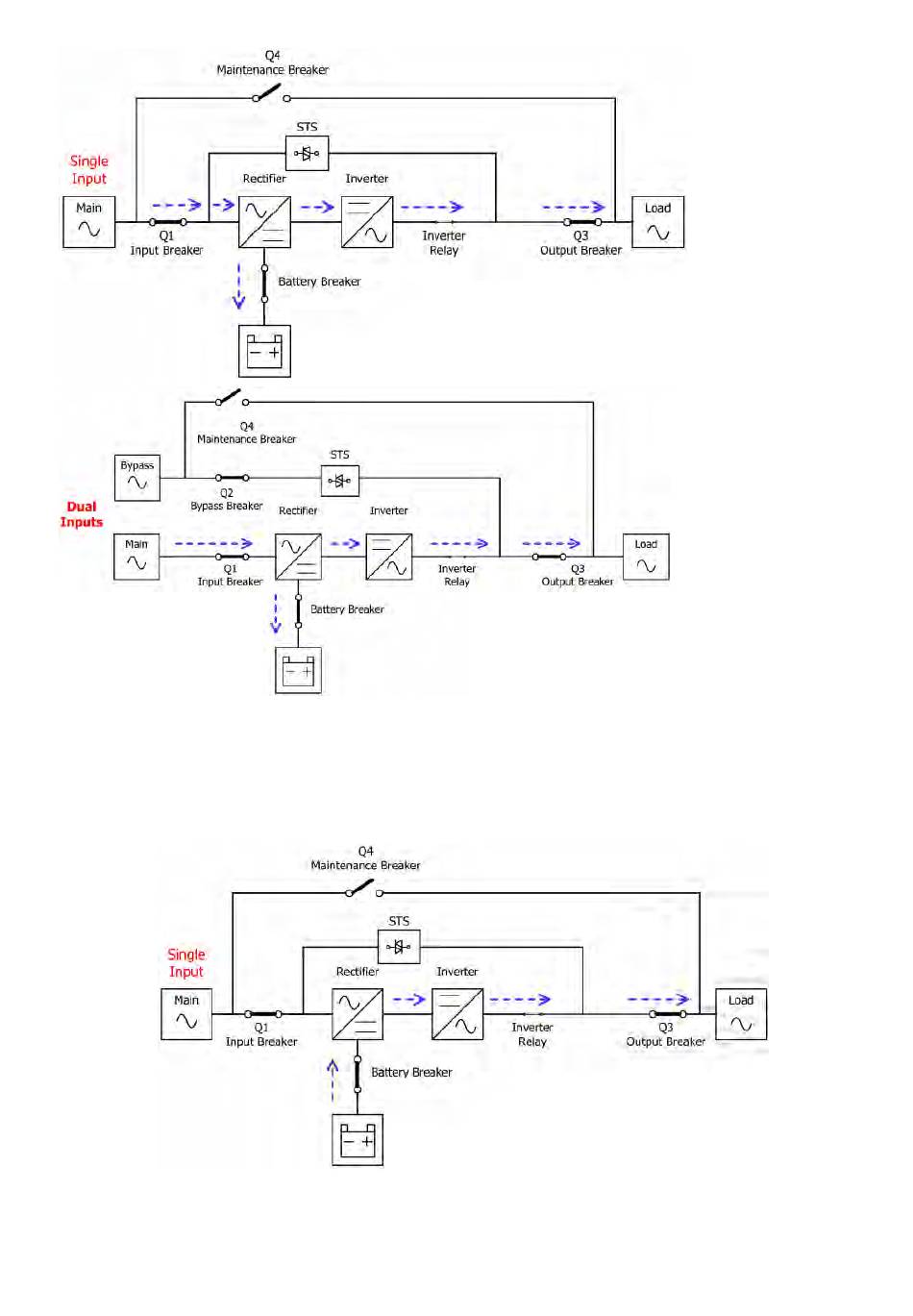

Line Mode Diagram
5-2-3. Battery Mode
The UPS automatically transfers to Battery mode if the Utility fails. There is no interruption to the load upon
failure. In battery mode, the rectifier delivers power from the battery and supplies DC power to the inverter.
The inverter filters the DC power and converts it into pure and stable AC power to the load.
