INFOSEC UPS SYSTEM E4 Evolution II TT Series User Manual page 106

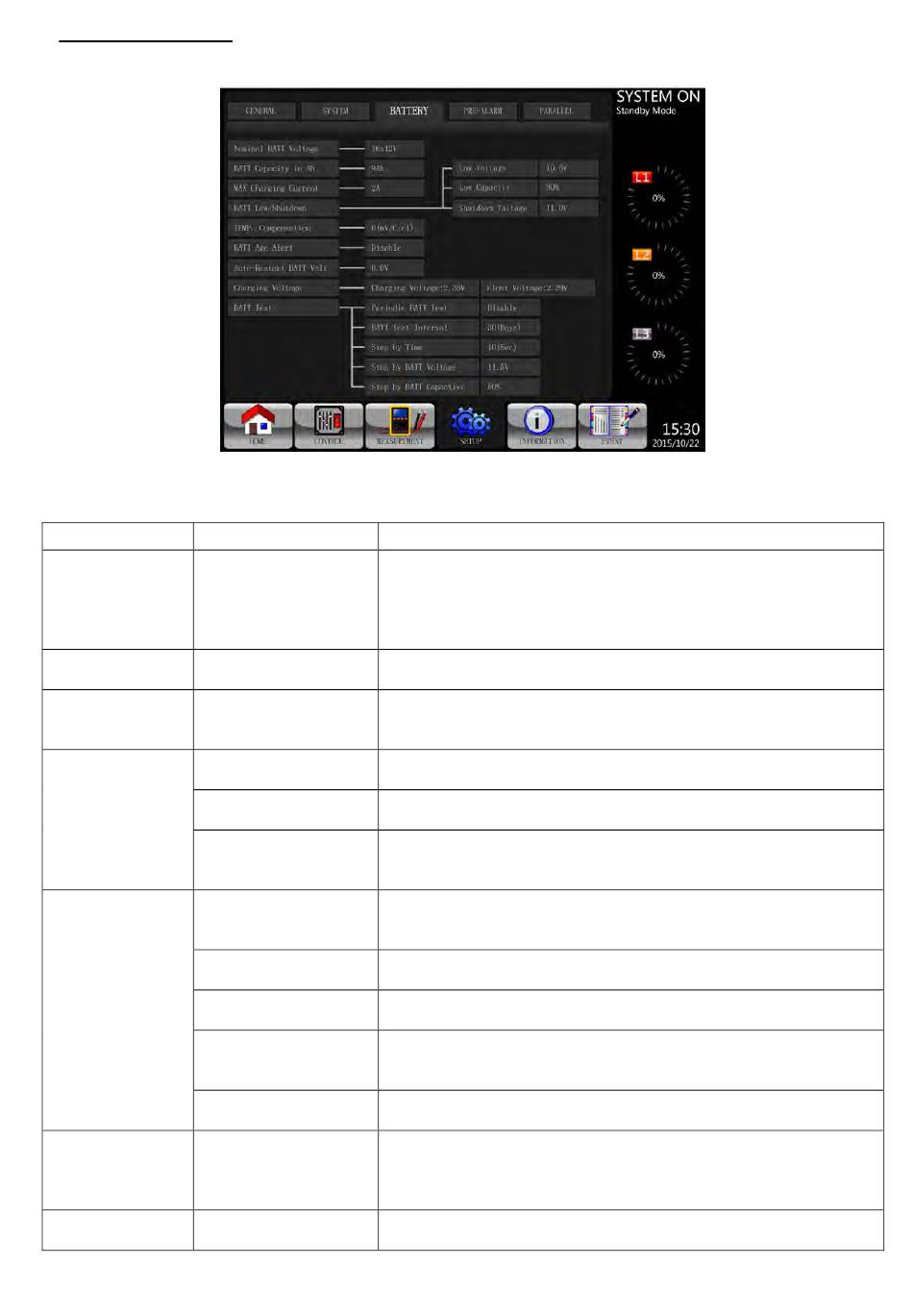

Battery Setup Screen
The Setup-Battery Screen and Setting options are shown below. Battery Settings can only be set when the
UPS is operated in STANDBY mode.
Battery Setup Setting List
Setting Item Sub Item
Nominal Battery
--
Voltage
Battery Capacity
--
in Ah
Maximum
--
Charging Current
Low Voltage
Battery Low/
Low Capacity
Shutdown
Setting
Shutdown Voltage
Periodic Battery Test
Battery Test Interval
Battery Test Stop by Time
Stop by Battery
Voltage
Stop by Battery
Capacity
Battery Age Alert
Battery Age Alert
(Months)
Temperature
--
Compensation
INFOSEC UPS SYSTEM – 15, Rue du Moulin – 44880 Sautron – France – www.infosec-ups.com
105
Hot Line Tel : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 02 19 AA 59 203 07
Battery Setup Screen
Explanation
Set battery nominal voltage
 16x12V
 18x12V
 20x12V (Default)
MUST be set after UPS installation
Set battery capacity. (up to 999)
 100Ah (Default)
Set battery maximum charging current (1~24A 100KVA/1~32A
120KVA/1~40A 160KVA/1~48A 200KVA)
 10A (Default)
Set battery low voltage (10.5~11.5V)x(battery Number)
 11V x Battery Number (Default)
Set battery low capacity (20~50%)
 20% (Default)
Set battery voltage point for system shutdown in battery mode
(10.0~11V) x (battery Number)
 10V x Battery Number (Default)
Set periodic battery test disable or enable
 Disable (Default)
 Enable
Set battery test interval (7~99 Days)
 30 Days (Default)
Set testing time for battery test (10~1000sec)
 10 sec (Default)
Set stop battery voltage in battery test (11~12V) x (battery
Number)
 11V x Battery Number (Default)
Set battery capacity to stop battery-testing. (20~50%)
 20% (Default)
Set battery age for replacement. (Disable,12~60Months)
 Disable (Default)
If this feature is enabled and the battery has been installed over
this period, there is a warning "Battery Age Alert" to indicate it.
Set battery temperature compensation. (0~-5 (mV/C/cl))
 0(mV/C/cl) (Default)
