2-6-2. Parallel Board Setting
1. Install the parallel board of UPS 1.

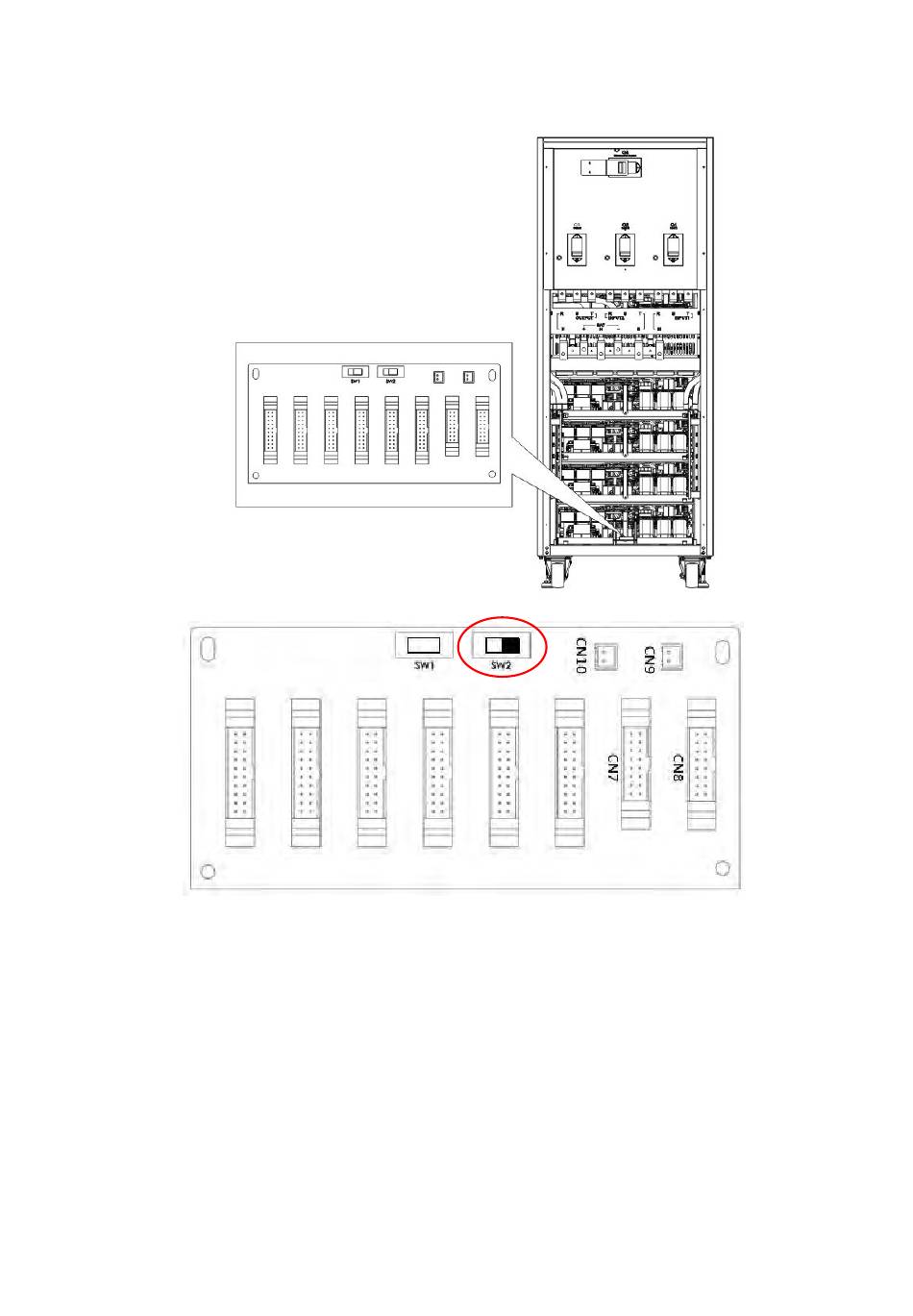

Set SW2 on the parallel board of the UPS 1 to the right side as shown in below figure.
SW2 position on UPS 1
